No2 Slitter - Sonoda Engineering Co., Ltd. ( Osaca Japan ) Double Loop

Double Loop Slitter

· Manufacture :

  -. Year : July 19. 2000

  -. Company : Sonoda Engineering Co., Ltd. ( Osaca Japan )

· Type : Double Loop

· Mode : Drive & Pull ( Conbination )

· Pass Direction : Right to Left

· Revamping

  -. Year : 2019. 12

  -. Company : Dongshin Tech ( Korea )

  -. Details of Revamping : Electric Control System

· Working Data

  -. Material

  -. Thickness

  -. Width

  -. Uncoiler Inside Dia

  -. Uncoiler Outside Dia

  -. Uncoil Weight

  -. Recoiler Inside Dia

  -. Recoiler Outside Dia

  -. Line Speed

  -. Threading Speed

  -. Minimum Width

· Winding Direction : Upper Winding

· Line Data

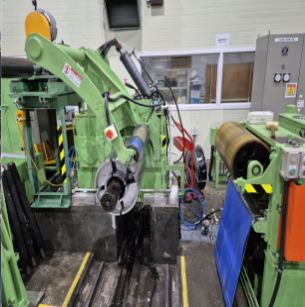

· Uncoiler

  -. Driven Motor : AC 1.5Kw Geared

  -. Drum Dimension : 400/500 mmΦ X 795 mm Face

  -. Air Disk Brake, Driven Snubber Roll ( AC 0.75Kw Geared Motor )

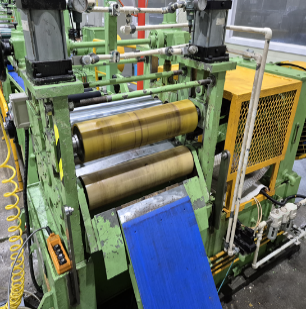

· Driven Pinch Roll & 5 Roll Leveller for Entry Control

  -. Driven Motor : VS 15Kw

  -. Pinch Roll Dimension : 180 mmΦ X 550mmL, Urethane Coated, Air Up-Down

  -. Leveller Roll Dimension : 100 mmΦ X 600mmL, Hardened Steel

  -. Speed : Feeding Speed : 10 MPM, Threading Speed : 15 MPM

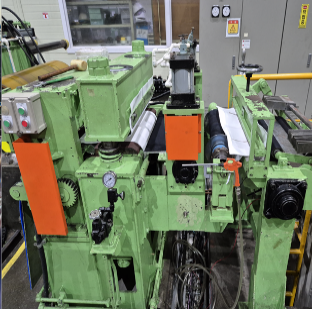

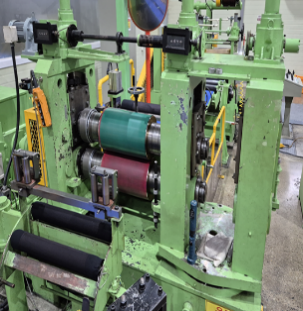

· Cutter Stand

  -. Driven Motor :AC 30Kw 4Pole

  -. Reduction Ratio : 8.06 : 1

  -. Arbor Dimension : 130 mmΦ X 650mmL Surface Hardened & Grinding

  -. Cutter Dimension : 230 mmΦ X 130 mmΦ X 7mmt & 5mmt

  -. Cutter Guiding Method : Rubber Ring

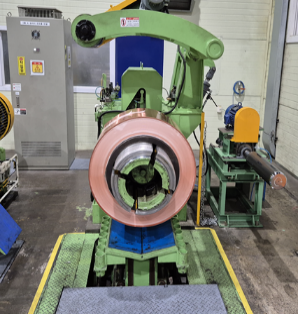

· Recoiler

  -. Driven Motor : DC 22Kw 400/1600

  -. Drum Dimension : 200/300 ( 200 + attachment ) & 400/500 ( 400 + attachment )

  -. Coil Weight : 2,000Kg

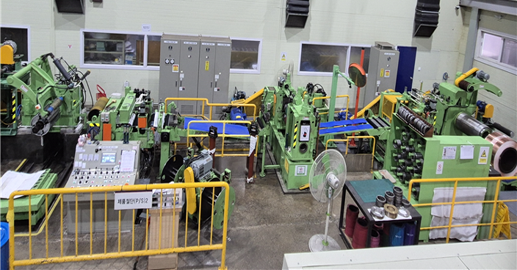

· Consist of

  a. Uncoiler driven by Motor, with Driven Snubber Roll.

  B. Coil Openning Table

  c. Driven Pinch Roll & 5 Roll Leveller and Shear

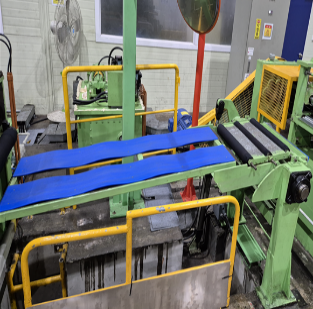

  d. Entry Looper with By Pass Table

  e. Driven Pinch Roll

  f. Cutter Stand

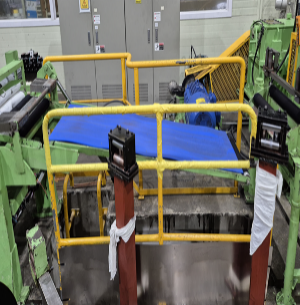

  g. Exit Looper with By Pass Table

  h. Disk Seperator

  i. Driven Pinch Roll & Shear

  j. Deflector Roll with Guide Table

  k. Recoiler with Over Arm Seperator

**The specifications presented include unverified and estimated parts.**

**The price is quoted as is where is at the time of sale.**

**All specifications are subject to verification by purchaser**
