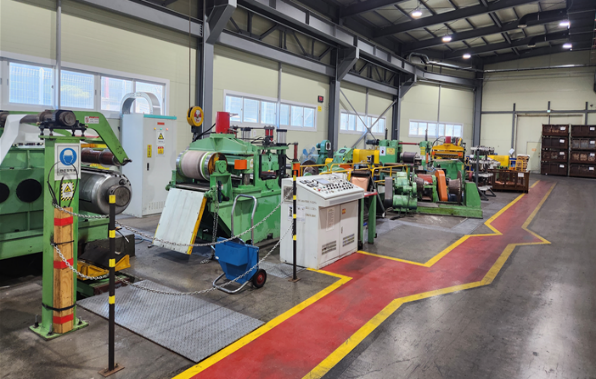

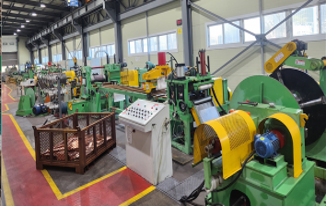

Exit Loop Heavy Gauge Slitter

· Manufacture :

  -. Year : 2020. 02

  -. Company : Wuxi Longar Machinery ( China )

· Type : Exit Loop

· Mode : Drive & Pull ( Conbination )

· Pass Direction : Right to Left

· Working Data

  -. Material

  -. Thickness

  -. Width

  -. Uncoiler Inside Dia

  -. Uncoiler Outside Dia

  -. Recoiler Inside Dia

  -. Recoiler Outside Dia

  -. Uncoil Weight

  -. Line Speed

  -. Threading Speed

  -. Minimum Width

· Winding Direction : Upper Winding

· Line Data

· Uncoiler

  -. Driven Motor : AC 1.5Kw Geared

  -. Coiler : Cone Type  400-700 mmΦ X 400-700 mm Width

  -. Air Disk Brake, Driven Snubber Roll

· Driven Pinch Roll & 3 Roll Leveller

  -. Driven Motor : AC 5.5Kw

  -. Speed : Feeding Speed : 10 MPM, Threading Speed : 15 MPM

· Cutter Stand

  -. Driven Motor : DC 160Kw 1500/2100 RPM

  -. Arbor Dimension : 205mmΦ X 650mmL Surface Hardened & Grinding

  -. Cutter Dimension : 205 mmΦ X 320 mmΦ X 10 & 20mmt

  -. Cutter Guiding Method : Rubber

· Recoiler

  -. Driven Motor : DC 55Kw 1000/2000 RPM

  -. Drum Dimension : 500 mmΦ X 650mmL

· Compopsition

  a. Cone Type Uncoiler driven by Motor, with Driven Snubber Roll.

  B. Coil Openning Table

  c. Driven Pinch Roll & 3 Roll Leveller

  d. Shear

  e. Roller Table With Roll Type Side Guide

  f. Cutter Stand ( Rubber Ring )

  g. Exit Guide Table & Scrap Chopper at both side

  h. Looper

  i. Free Pinch Roll & Deflector Roll

  j. Driven Pinch Roll & 3 Roll Leveller

  k. Shear

  l. Deflector Roll with Guide Table

  m. Recoiler driven by Motor with Over Arm Seperator

**The specifications presented include unverified and estimated parts.**

**The price is quoted as is where is at the time of sale.**

**All specifications are subject to verification by purchaser**
