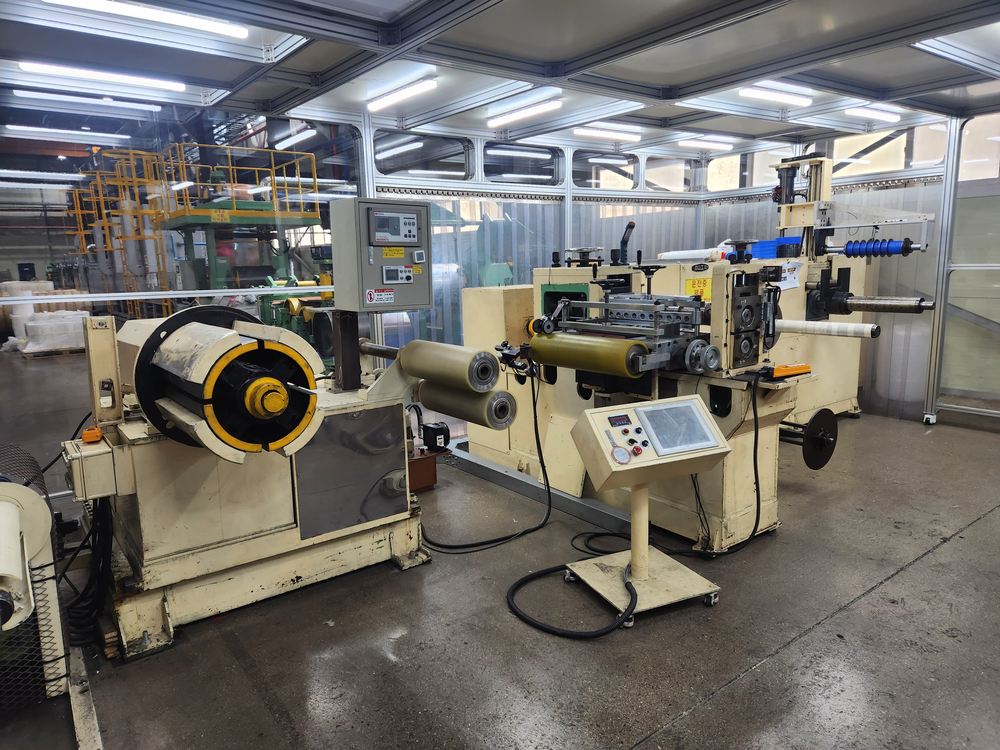

Magnetic Core Slitter

· Manufacture :

  -. Year : 1990

  -. Company : Backsan Machinery ( Korea )

· Type : No Loop,  Magnetic Core Tension Control

· Mode : Drive & Pull ( Conbination )

· Pass Direction : Left to Right

· Revamping

  -. Year : 2020

  -. Company : Youngdong Coil Center ( Korea )

  -. Details of Revamping : Electric Drive System

· Working Data

  -. Material

  -. Thickness

  -. Width

  -. Uncoiler Inside Dia

  -. Uncoiler Outside Dia

  -. Uncoil Weight

  -. Recoiler Inside Dia

  -. Recoiler Outside Dia

  -. Line Speed

· Winding Direction : Upper Winding

· Line Data

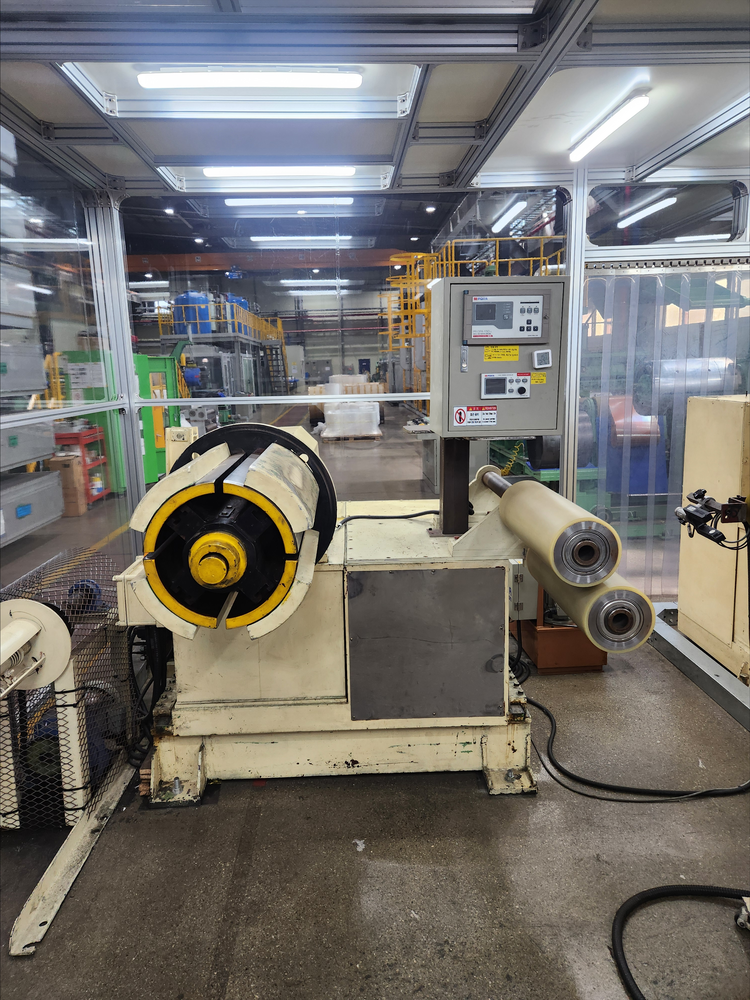

· Uncoiler

  -. Brake : Powder 200Nm

  -. Drum Dimension : 508mmΦ X 525 mm Face

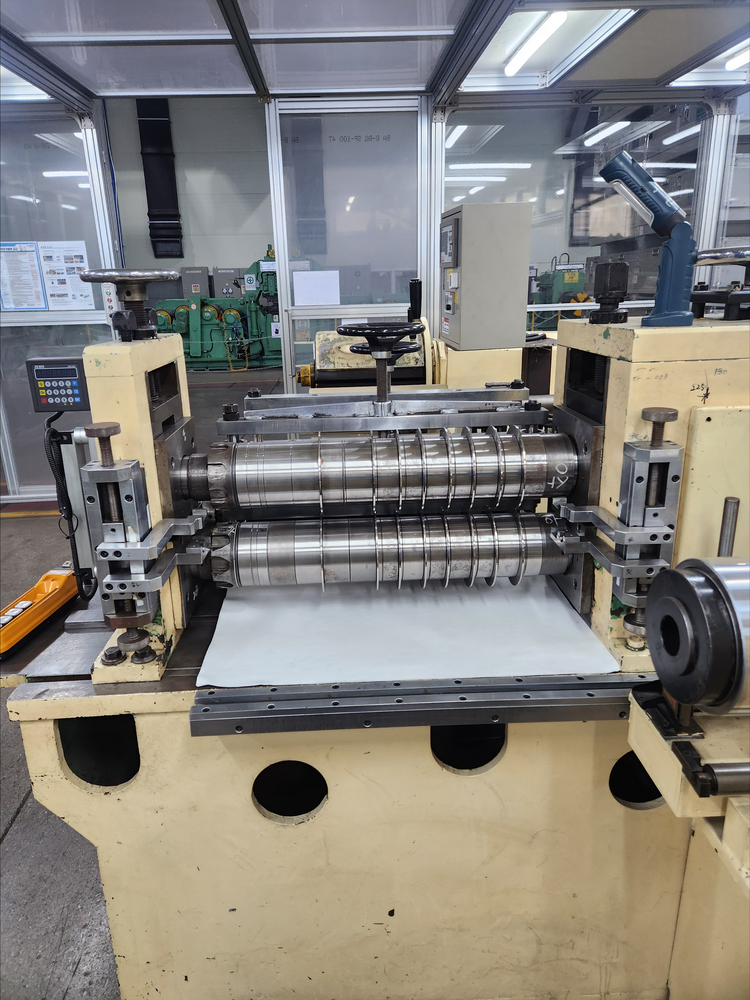

· Cutter Stand

  -. Driven Motor : AC 5,5Kw 4Pole

  -. Arbor Dimension : 95mmΦ X 600mmL Surface Hardened & Grinding

  -. Cutter Dimension : 95 mmΦ X 160 mmΦ X 2.0mmt & 3.0mmt

  -. Cutter Guiding Method : Finger

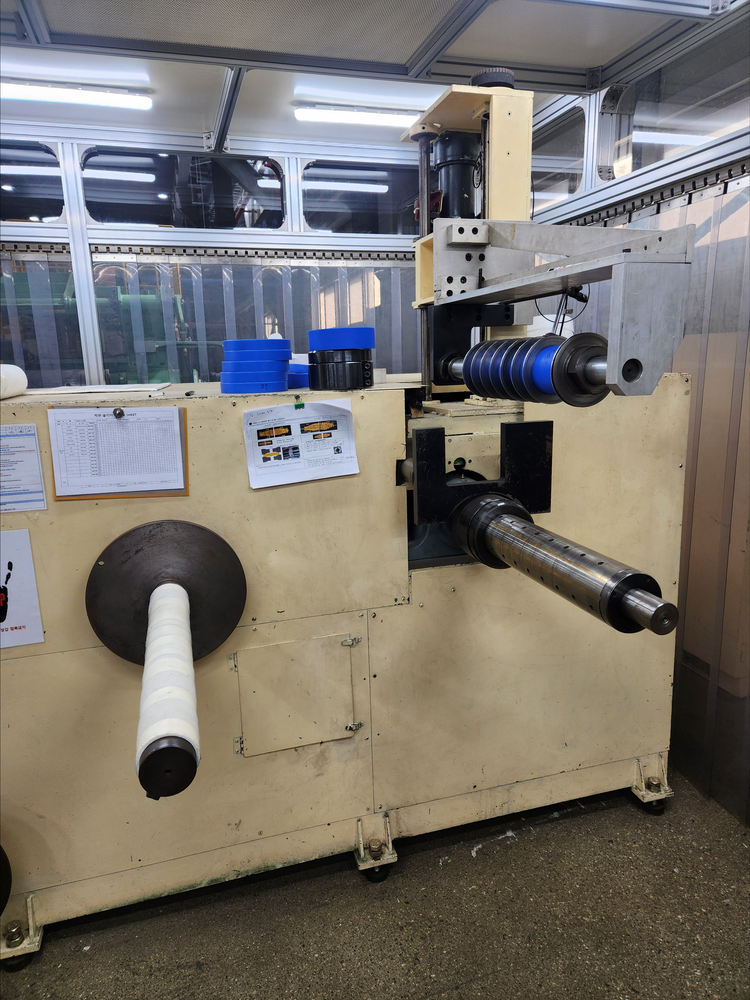

· Recoiler

  -. Driv Method ; Cutter Connection Drive Method

  -. Shaft Dimension : 120 mmΦ X 485 mmL

  -. Core Dimension : Magnetic type, 200 mmΦ OD X 20 mmt

  -. Coil Weight : 600Kg

· Composition

  a. Uncoiler driven by Motor

  B. EPC Unit

  c. Cutter Stand ( Finger )

  d. Recoiler with Over Arm Seperator ( Magnetic Core )

**The specifications presented include unverified and estimated parts.**

**The price is quoted as is where is at the time of sale.**

**All specifications are subject to verification by purchaser**
