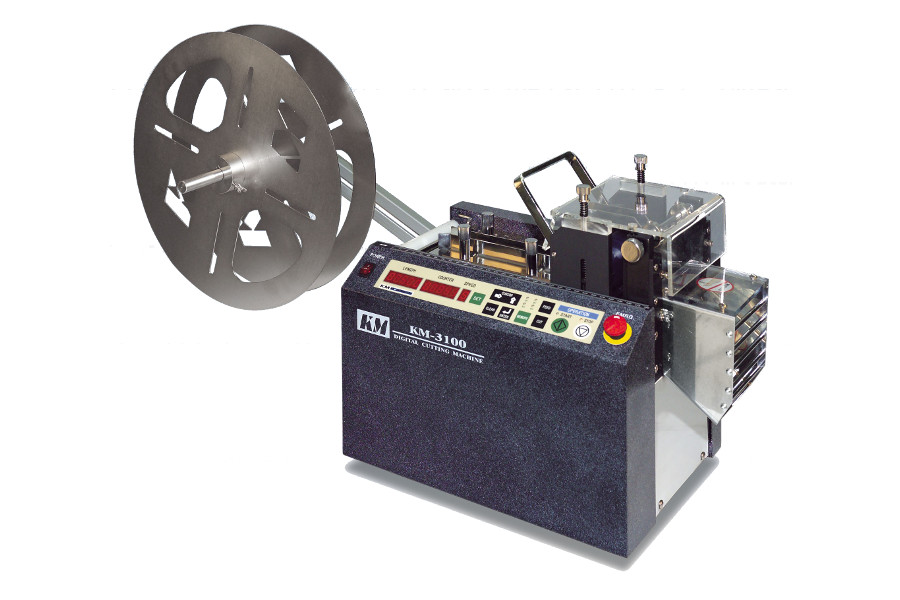

Digital Cutting Machine
메이커 KM DIGITECH
모델 KM-3100
연식
외부 치수
전시장 기타
가격 가격 문의
문의 번호 ASK-24619
Features
‣ From tubes, vinyles, films, hoses, wires to metal plates, KM cutting machines are versatile, multi-purposely used in a various business sectors. Material which width is less than 100, 200, 300 or 400mm can be applied to each of KM-3100, 3200, 3300, 3400. according to their blade sizes.

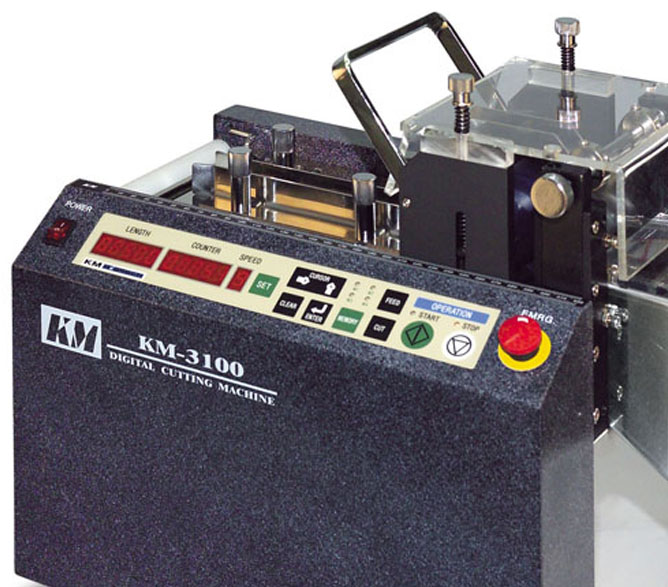

- Digital Window for easy set-up
- Push button set-up for all machine functions
- Count of pieces needed
- Five-memory storage
- Various warning messages and alarm functions
‣ Various Sensors
- Material run-out sensor
- Default Value sensor for blade height
- Proximity sensor
- Power sensor to save working data in case of power failure
‣ Feeding Part
- Material Hanger and Guide
- Aux. Roller and Feeding roller
- A knob for roller lift-up
- Roller friction adjusting nut
- Material pressing plate and adjusting nut

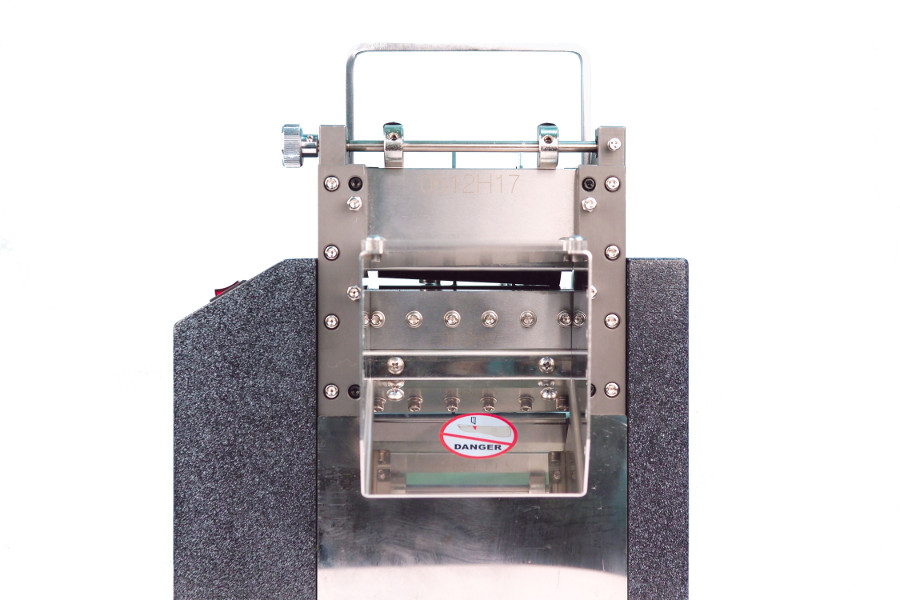

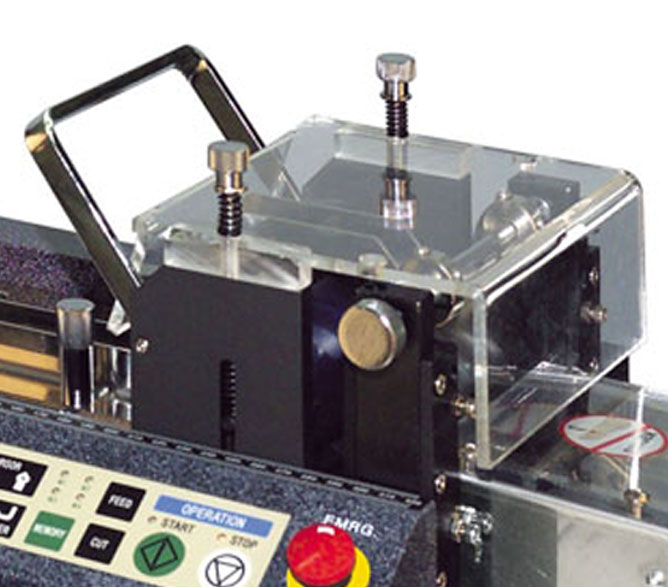

‣ Cutting Part

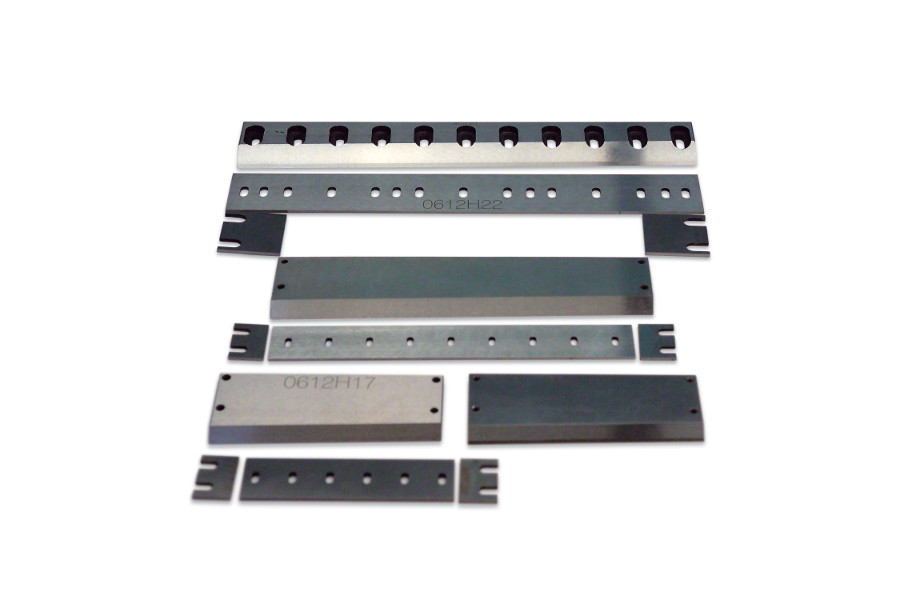

- Upper/Lower/Wing blades
- Carbonated Blade life two times the life of competitor model
- Operate friendly design for easy replacement
Specification
| Dimensions(W x D x H) | 395 X 265 X 355 |
| Weight(kg) | 21 |
| Cutting Material | Shrink tube, Hose, Rubber, Tin/Copper plate, Wire, Braided wire, Paper, Silicon tube, Film, vinlyl, etc. |
| Max. cutting width | 100mm |
| Power supply | 110/220 VAC, 50/60Hz, Single Phase |
| Power consumption(WAT) | 18 W ~ 150 W |
* Specifications are subject to change without notice.
Options
■ Material Pre-feeder COP-311
■ Static Remover COP-314
