Scroll Pump - Anest Iwata DVSL-1002
Product Specifications
Maker Anest Iwata
Model DVSL-1002
Category Pump
Model year 2007
Condition Used
Showroom Information
Exhibition hall Kyushu Technical Center
Price & Inquiry
price Price Inquiry
Inquiry Number FA0296
Mechanical Specifications

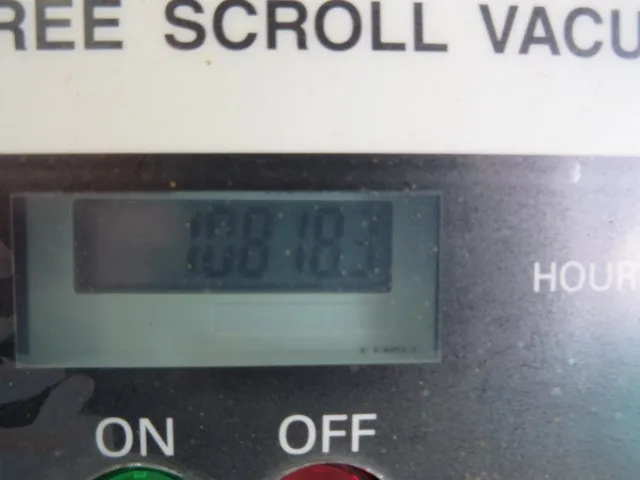

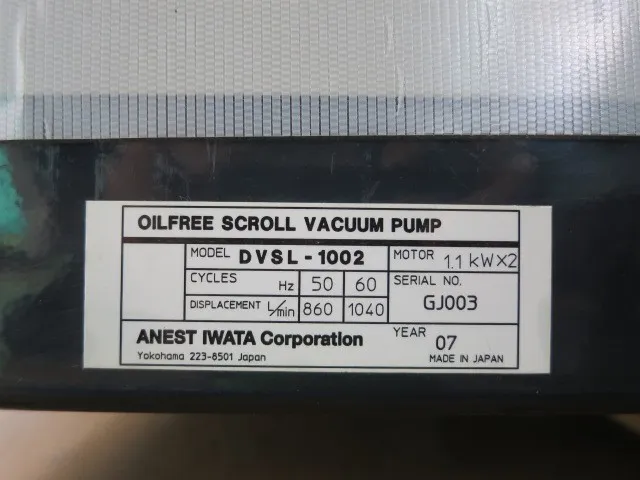

Pumping speed: 860/1040 L/min (50/60 Hz) Ultimate pressure: ≦30 Pa Maximum suction pressure: Atmospheric pressure Operating temperature range: 5~40°C Motor output: 1.1 x 2 kW Voltage: 200 V Rated current: 12.2/11.6 A (50/60 Hz) Rotation speed: 2860/3440 rpm (50/60 Hz) Cooling method: Air-cooled (AC fan motor) Operating time: 10818.3 hours
Intake: NW40 Exhaust: NW25 Product weight 117 kg External dimensions W468 D666 H792
Attachments
Product Overview
Anest Iwata DVSL-1002 is a used Pump item handled by ASKINDEX Korea. This listing has sold, but you can ask about restock or a similar unit, and request a quote. You can also compare other used products from the same manufacturer (Anest Iwata) and the same category (Pump).

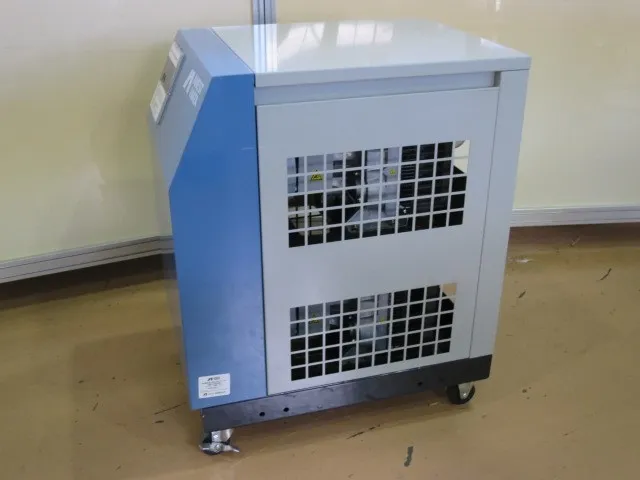

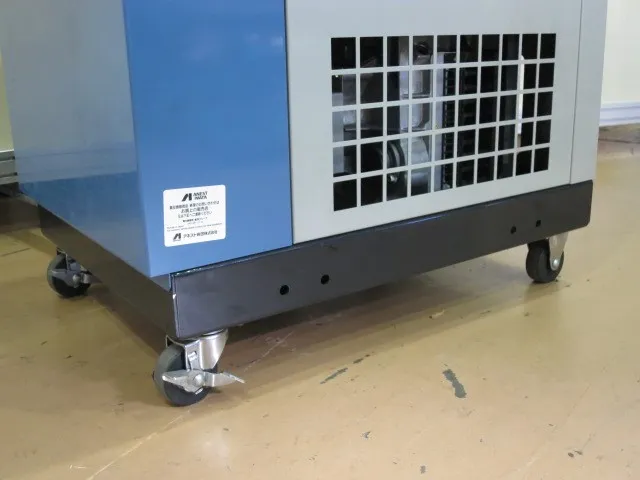

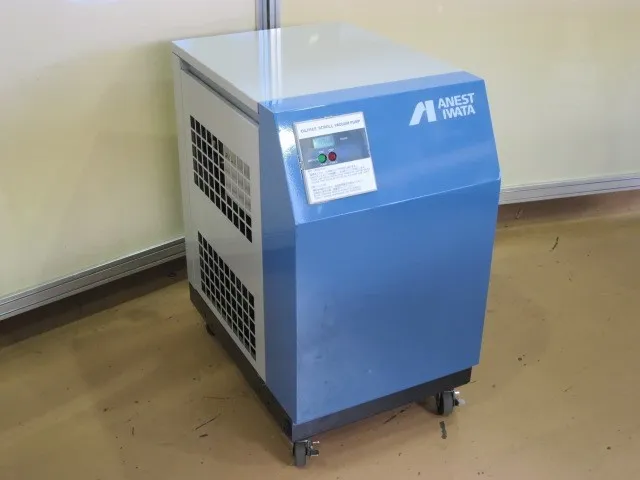

※ Click on the image below to zoom in.
