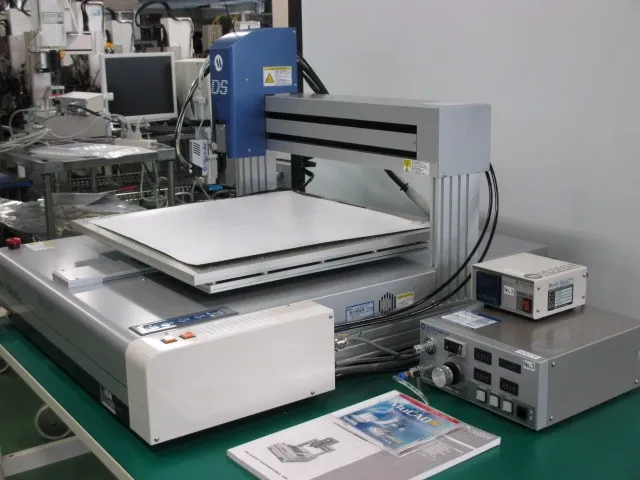

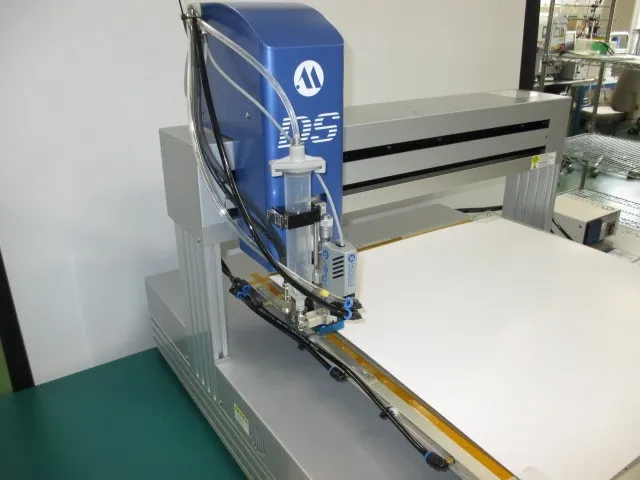

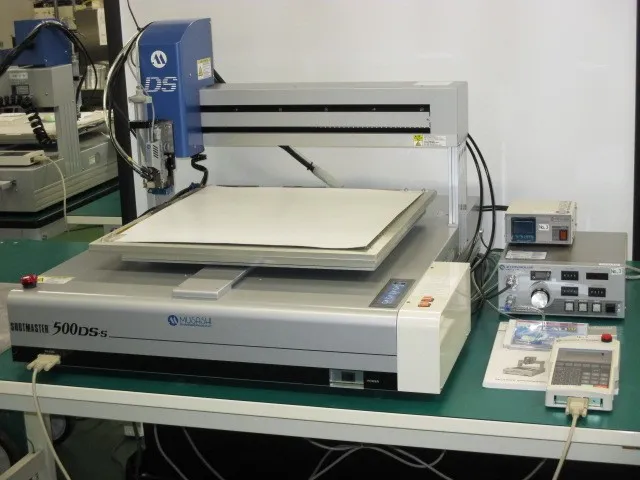

Dispenser (desktop automatic application device) - Musashi Engineering SM500DS-S
Product Specifications
Maker Musashi Engineering
Model SM500DS-S
Category Printing ・ Printing
Model year 2013
Condition Used
Showroom Information
Exhibition hall Enzan Technical Center
Price & Inquiry
price Price Inquiry
Inquiry Number H20332
Product Overview
Musashi Engineering SM500DS-S is a used Printing ・ Printing item available from ASKINDEX Korea. It is kept in stock at our Enzan Technical Center showroom, so stock checks and price quotations are available immediately. You can also compare other used products from the same manufacturer (Musashi Engineering) and the same category (Printing ・ Printing).
Mechanical Specifications
Number of controlled axes: 3 (simultaneous control) Operating range: X, Y axes 500mm, Z axis 60mm PTP operating speed setting range: X, Y axes 1-800mm/sec, Z axis 1-400mm/sec. Line operating speed setting range: X, Y axes 0.5-400mm/sec, Z axis 0.5-400mm/sec. Control method: PTP and CP control Power supply/power consumption: AC100-240V 50/60Hz 150VA External dimensions: W750 D870 H565

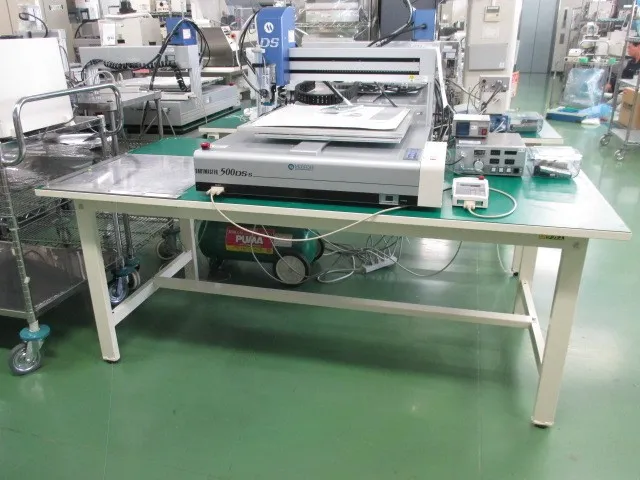

Workbench (W1800 D900 H730)

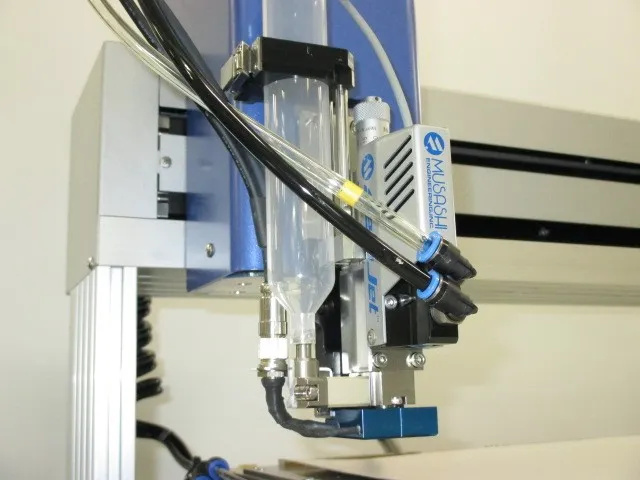

Accessories: Dispenser MJET-3-CTR (S/N.101028954013) Nozzle Heating Temperature Controller TCU-02-MU (S/N.105003235013)
Operating environment temperature and humidity: 0-40°C, 20-80% (no condensation) Robot mass: 34 kg
Attachments
※ Click on the image below to zoom in.
