- Sir James Famer Norton ( UK ) 318 X 610 X 635 4High Irreversible

Name: Sir James Famer Norton ( UK ) 318 X 610 X 635 4High Irr...
Brand: Sir James Famer Norton ( UK )
SKU: J260506-01
Availability: InStock

Product Specifications

Maker Sir James Famer Norton ( UK )

Model 318 X 610 X 635 4High Irreversible

Category Factory Equipment-Related

Condition Used

Showroom Information

Exhibition hall etc

Price & Inquiry

price Price Inquiry

Inquiry Number J260506-01

Check inventory · Inquire

Manufacture

-. Year : 1965. 06

-. Company : Sir James Famer Norton ( UK )

. Type : 4 High Irreversible, Work Roll Drive

Screwdown : Electro Machanical

-. Motor : AC 11Kw 6Pole with Disk Break

-. Reduction Rate : 1650 : 1

. Pass Direction : Left to Right

Revamping

-. Year : 2017. 09

-. Company : Shinkwang Tech ( Korea )

-. Details of Revamping : Input System, Uncoiler, Up-coiler, Electric Drive System

Thickness Gauge : Non

Working Data

-. Material : Copper & Copper Alloys

-. Starting Gauge : Max 12mm

-. Finishing Gauge : Min 3.0mm

-. Width : 200 - 530mm

Coil Data

-. Coil Weight : 1,250 Kg

-. Coil Dia : 600 - 850mm¢

Drive Data

-. Un-Coiler : Side Cone Coiler

-. Mill Motor : DC 560Kw 550/1200RPM

-. Up-Coiler : 30Kw VS

. Line Speed : 75 m/min

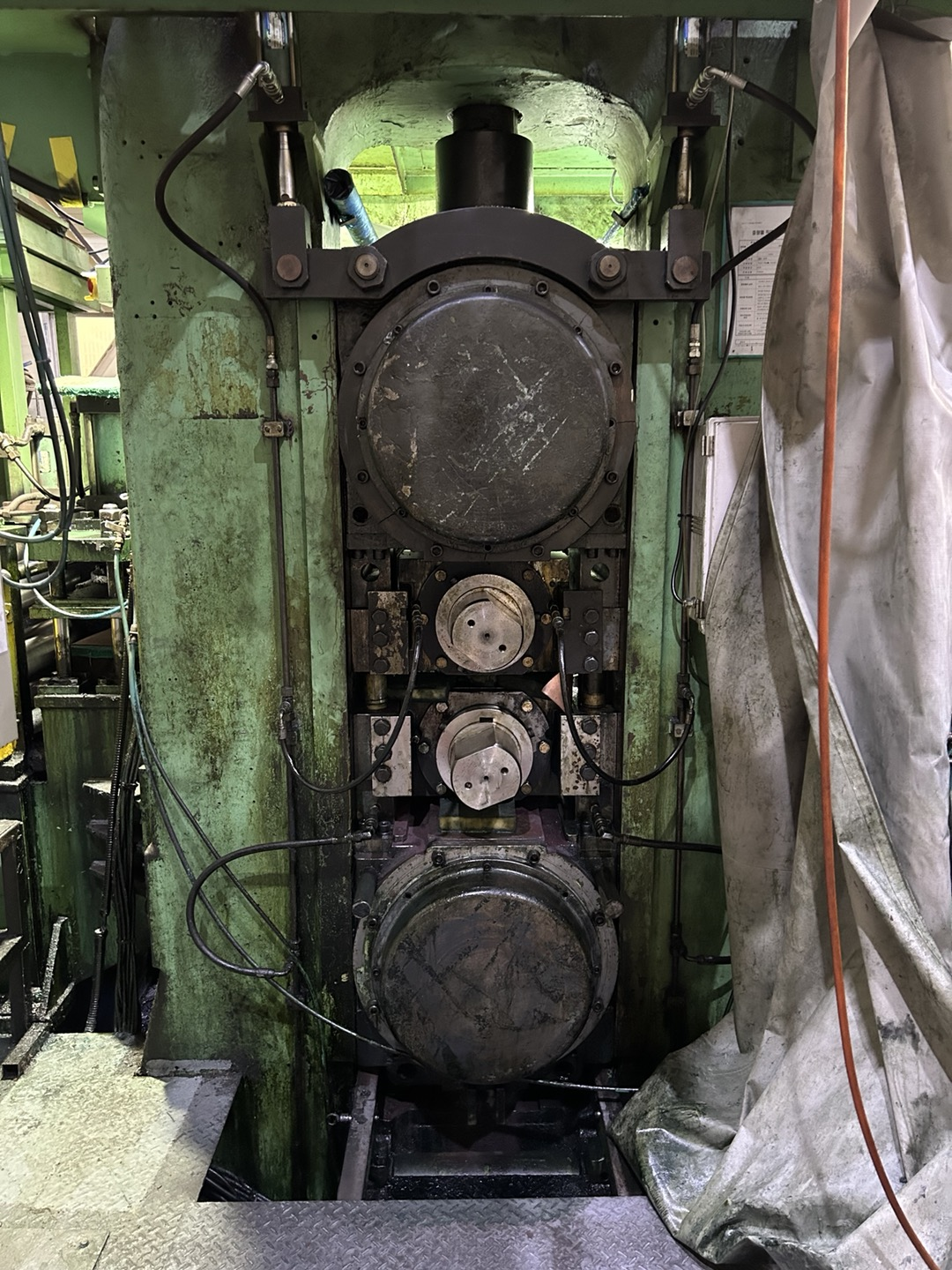

Roll Data

-. Work Roll : Type : 310mm0 X 635mm Barrel Face 8 Pieces

-. Back Up Roll : Type : 610mm0 X 635mm Barrel Face 9 Pieces

Post Size : 330 X 450mm

.Coolant System

-. Type : Soluble Oil

-. Filtering System : Catridge

-. Spray : 250 l/mim

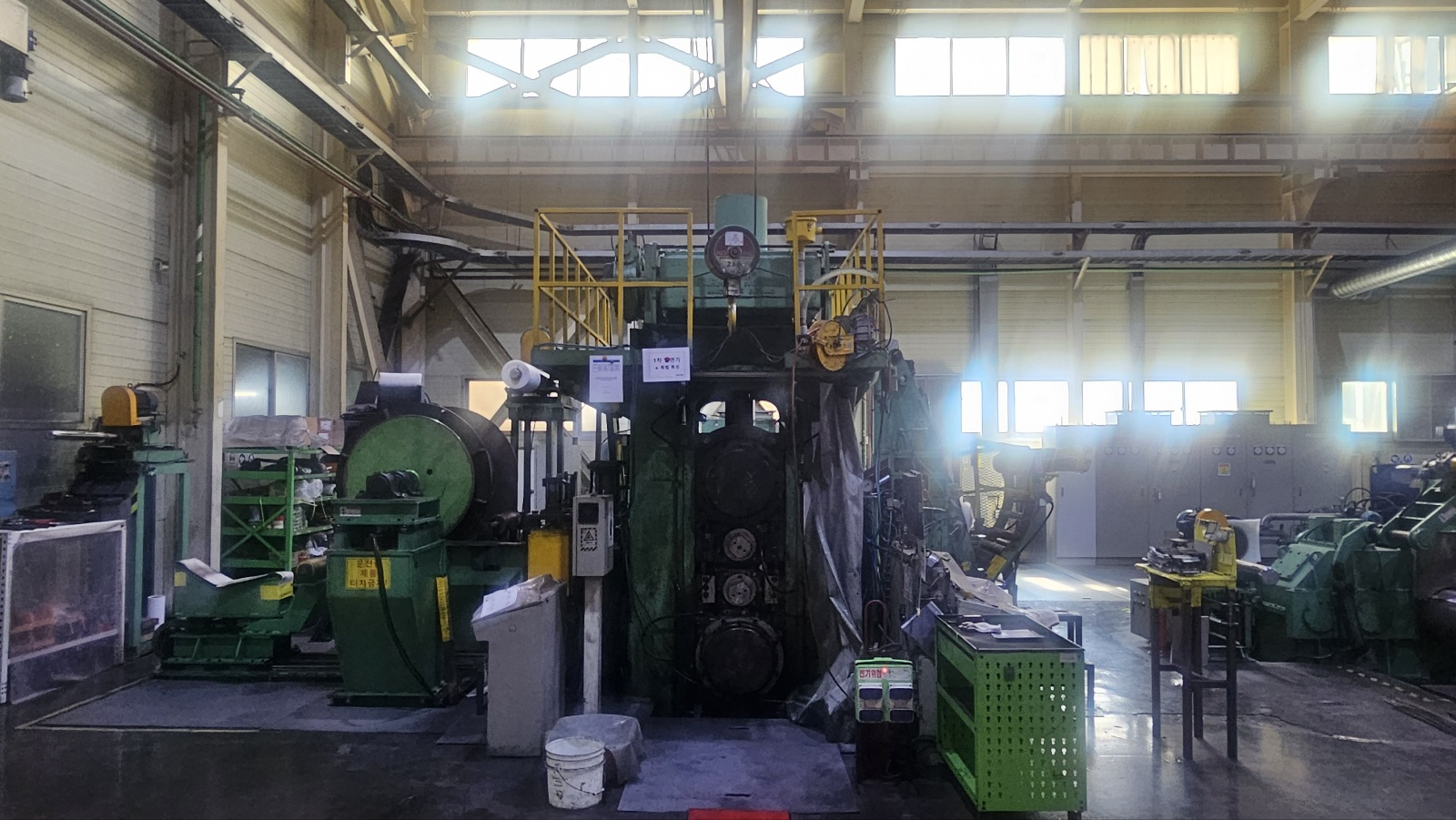

Composition

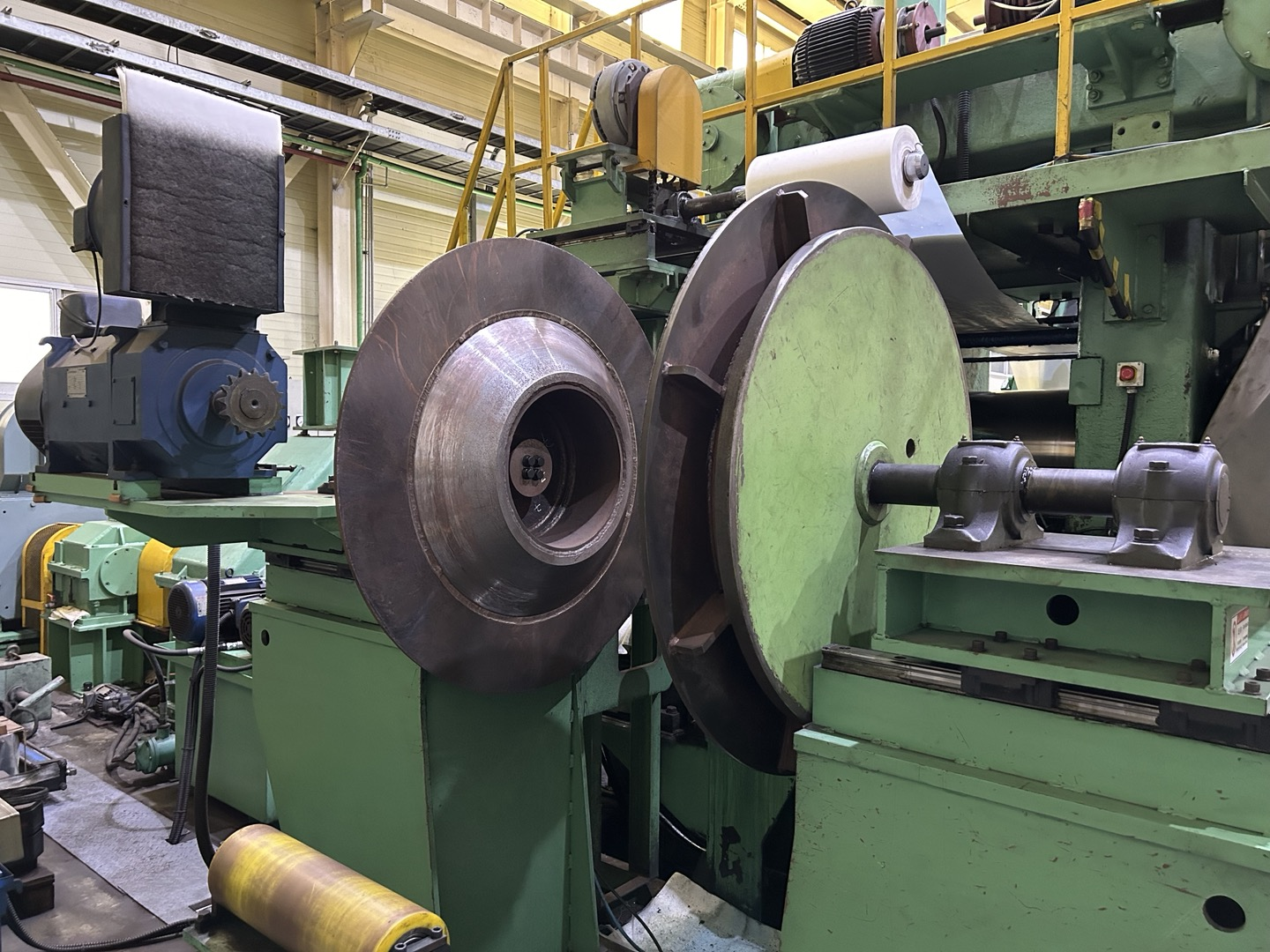

a. Cone Type Uncoiler.

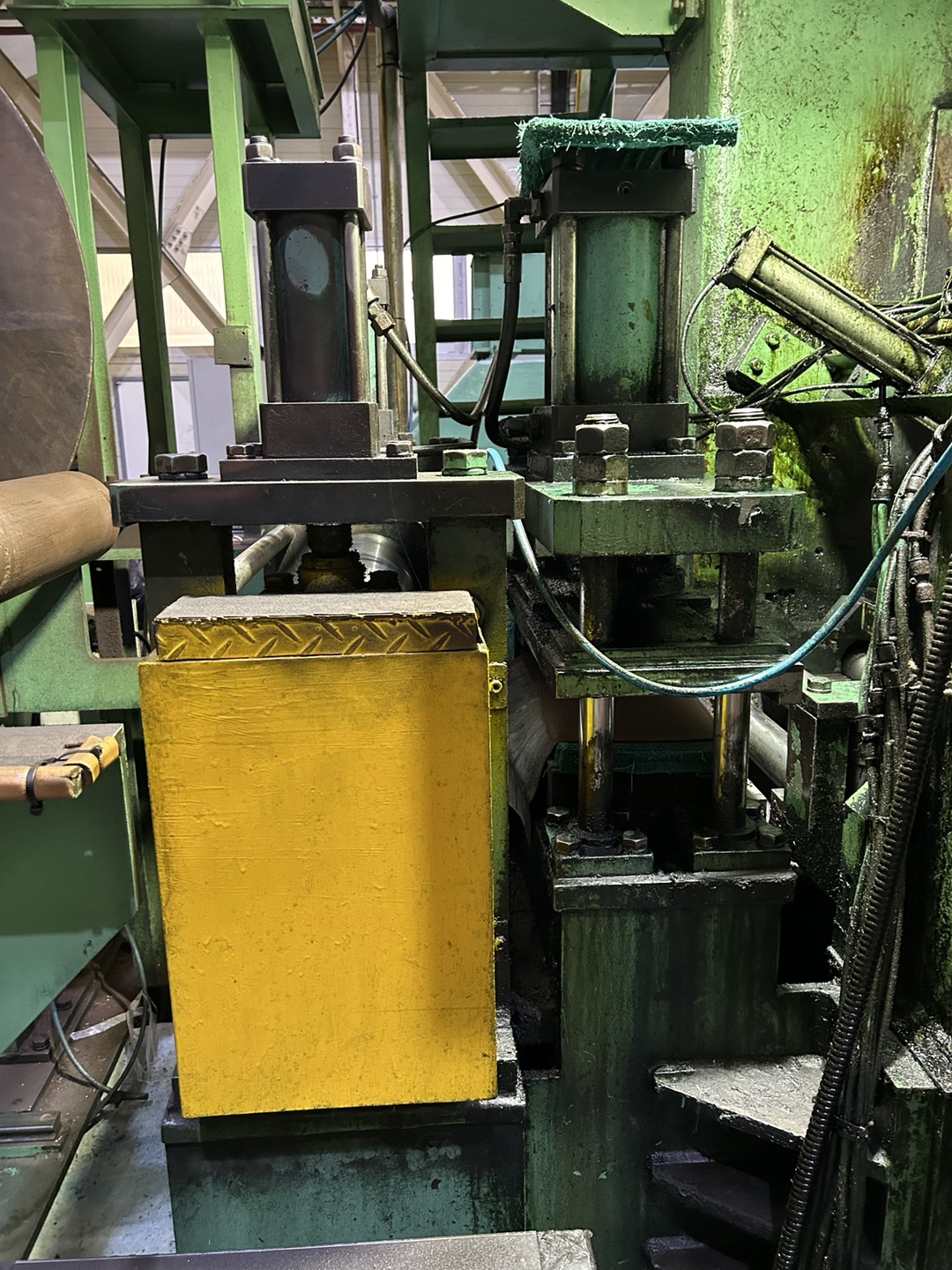

b. Input Guiding System.

C. Mill

d. Output Guiding System

e. Up-Coiler

** The specifications presented include unverified and estimated parts .**

** The price is quoted as is where is at the time of sale .**

** All specifications are subject to verification by purchaser **

Product Overview

Sir James Famer Norton ( UK ) 318 X 610 X 635 4High Irreversible is a used Factory Equipment-Related item handled by ASKINDEX Korea. This listing has sold, but you can ask about restock or a similar unit, and request a quote. You can also compare other used products from the same manufacturer (Sir James Famer Norton ( UK )) and the same category (Factory Equipment-Related).
