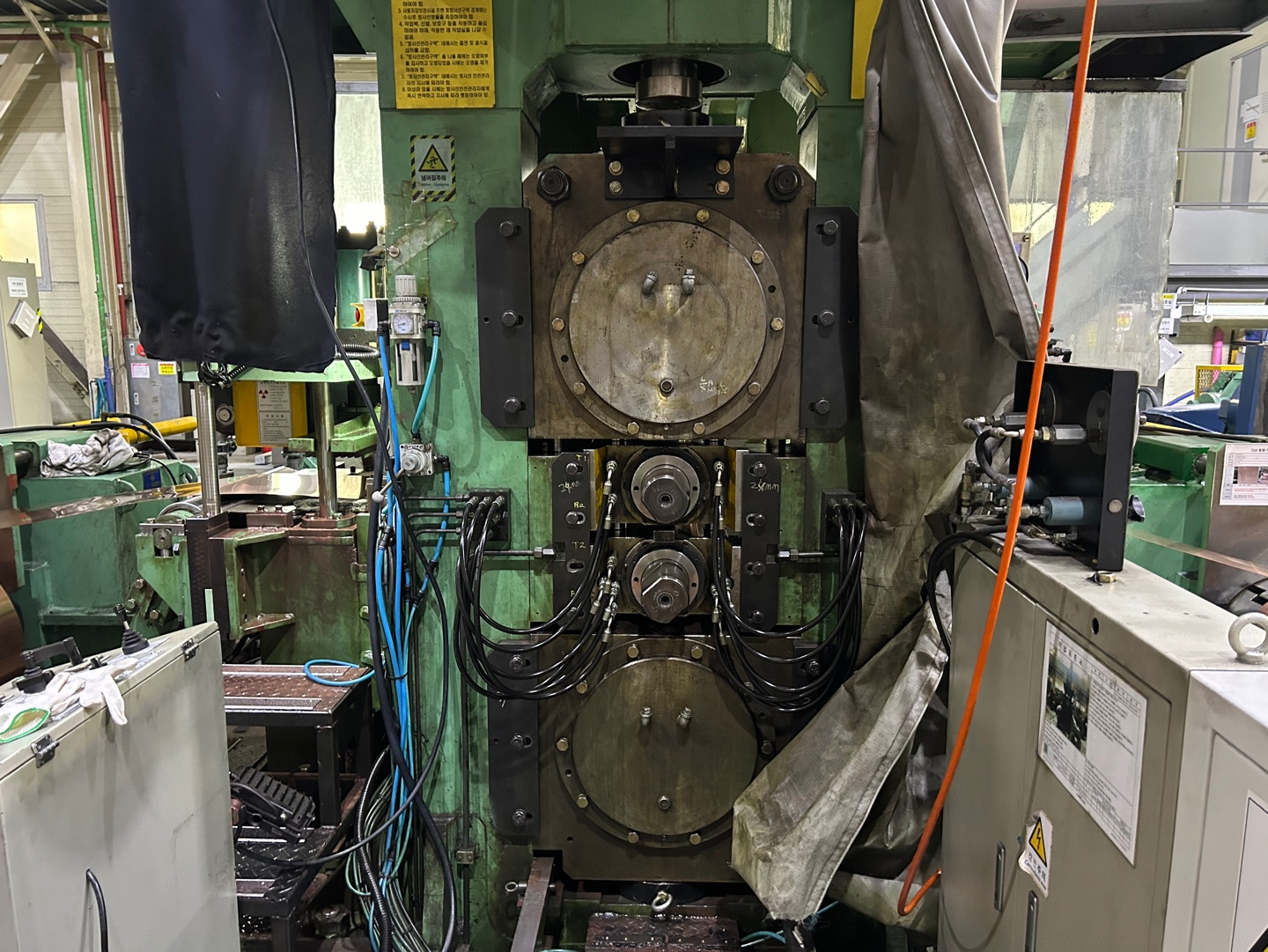

- Shinkwang Tech ( Korea ) 225 X 570 X 720 4 High Irrversible

Product Overview

Shinkwang Tech ( Korea ) 225 X 570 X 720 4 High Irrversible is a used Factory Equipment-Related item available from ASKINDEX Korea. It is kept in stock at our etc showroom, so stock checks and price quotations are available immediately. You can also compare other used products from the same manufacturer (Shinkwang Tech ( Korea )) and the same category (Factory Equipment-Related).

Manufacture

-. Year : 2017. 06

-. Company : Shinkwang Tech ( Korea )

. Type : 4 High Irreversible, Work Roll Drive

Screwdown : Hydraulic

-. AGC : Pauly System ( Germany )

Pass Direction : Left to Right

Revamping

-. Year : 2020

-. Company : Partec ( Korea )

-. Details of Revamping : Drive System, Hydraulic Screwdown, AGC

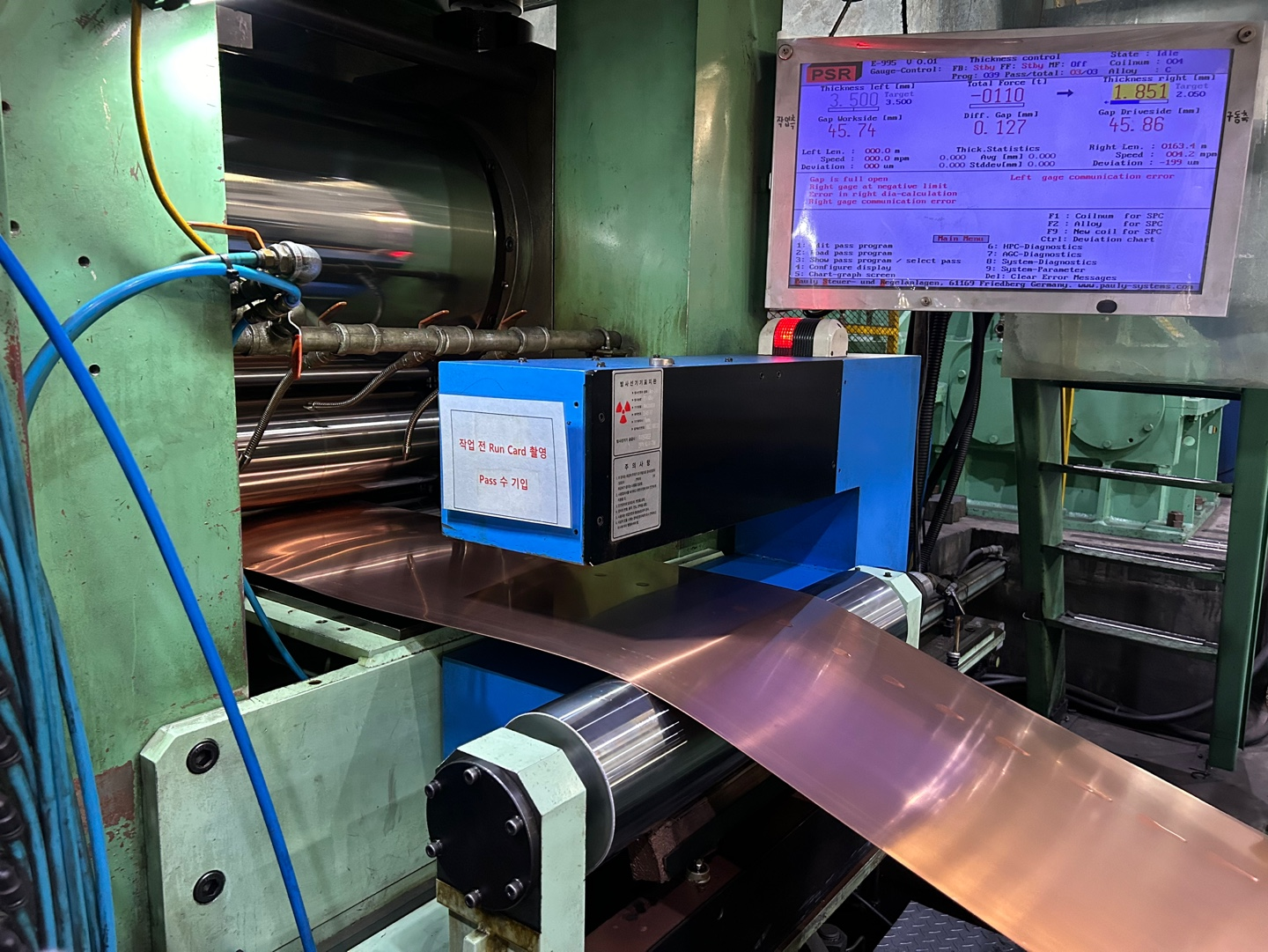

Thickness Gauge : v-Ray

Working Data

-. Material : Copper & Copper Alloys

-. Starting Gauge : Max 5mm

-. Finishing Gauge : Min 0.8mm

-. Width : 200 - 650mm

Coil Data

-. Coil Weight : 2,500 Kg

-. Coil Dia : 508 - 1100mm0

Drive Data

-. Mill Motor : DC 350 Kw 600/1500RPM Reduction Ratio : 13.1 : 1

-. Unwinder Motor : DC 75Kw 500/1500 Reduction Ratio : 25.5 : 1

-. Rewinder Motor : DC 150Kw 500/1500 Reduction Ratio : 25.5 : 1

-. Line Speed : 90 m/min

Roll Data

-. Work Roll : Type : 225mm0 X 720mm Barrel Face 14 Pieces

-. Back Up Roll : Type : 570mm0 X 670mm Barrel Face 14 Pieces

Post Size : 320 X 290mm

Coolant System

-. Type : Mineral

-. Filtering System : Catridge

-. Spray : 250 l/mim

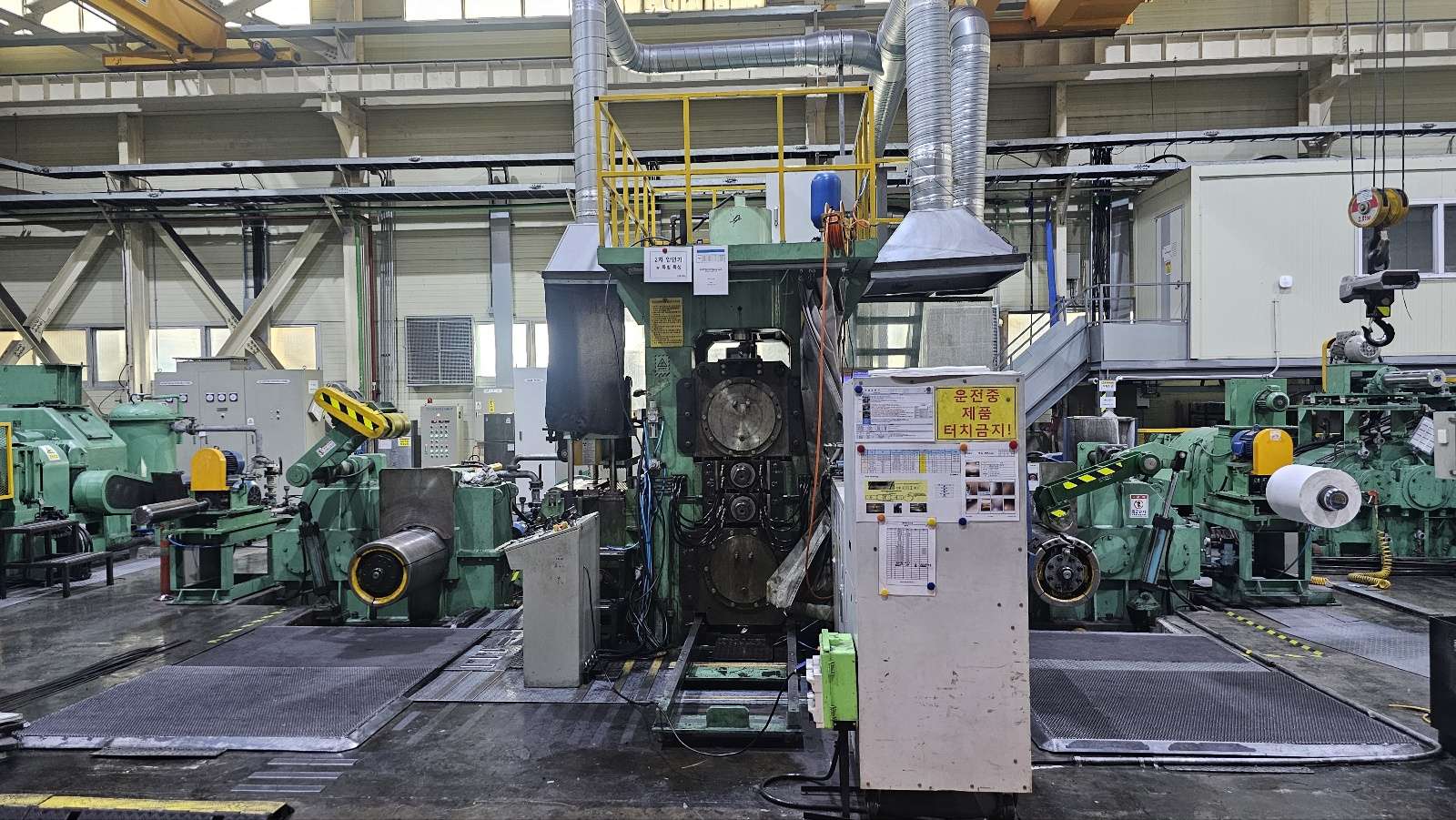

. Composition

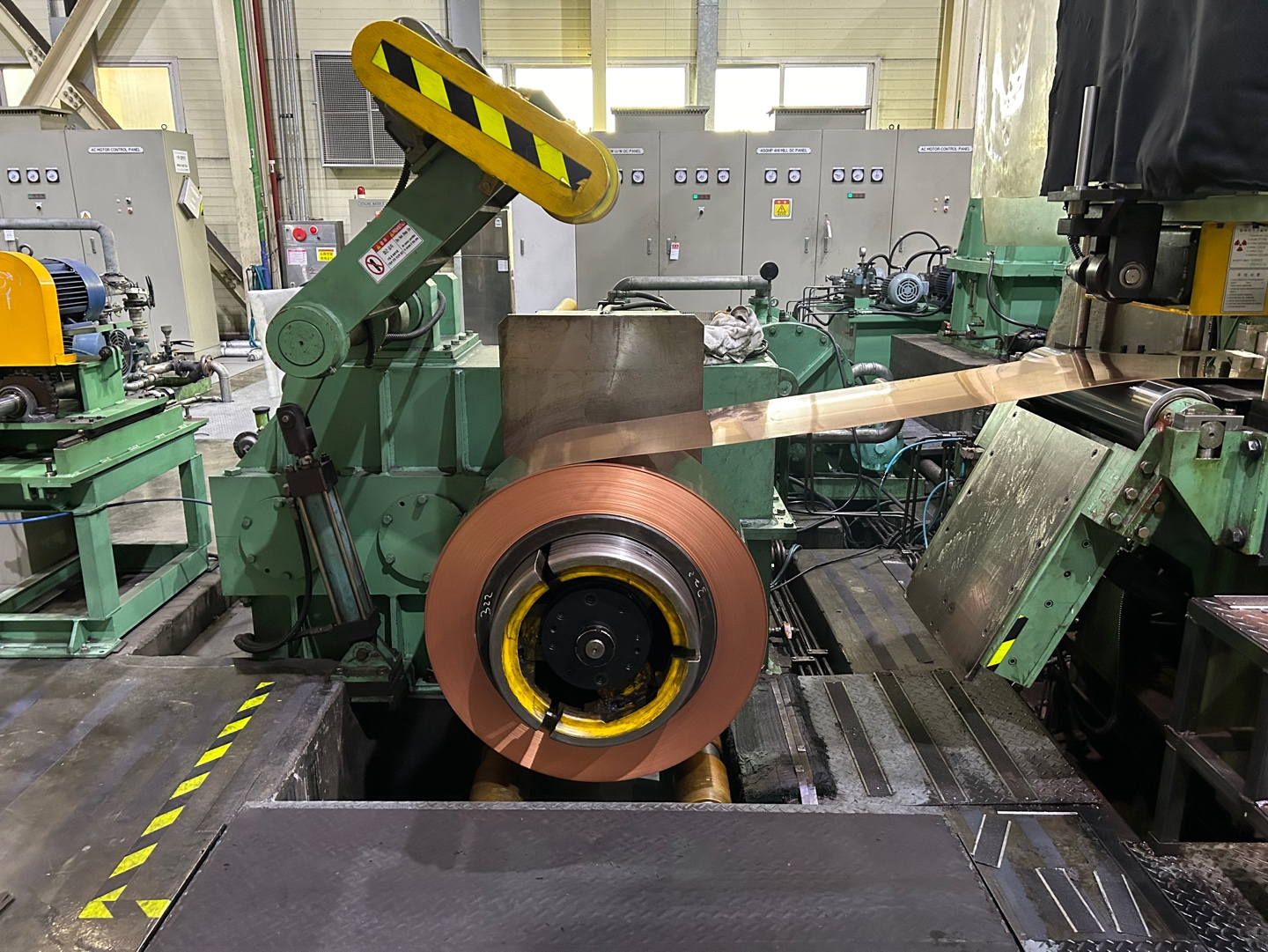

a. Left Tension Uncoiler

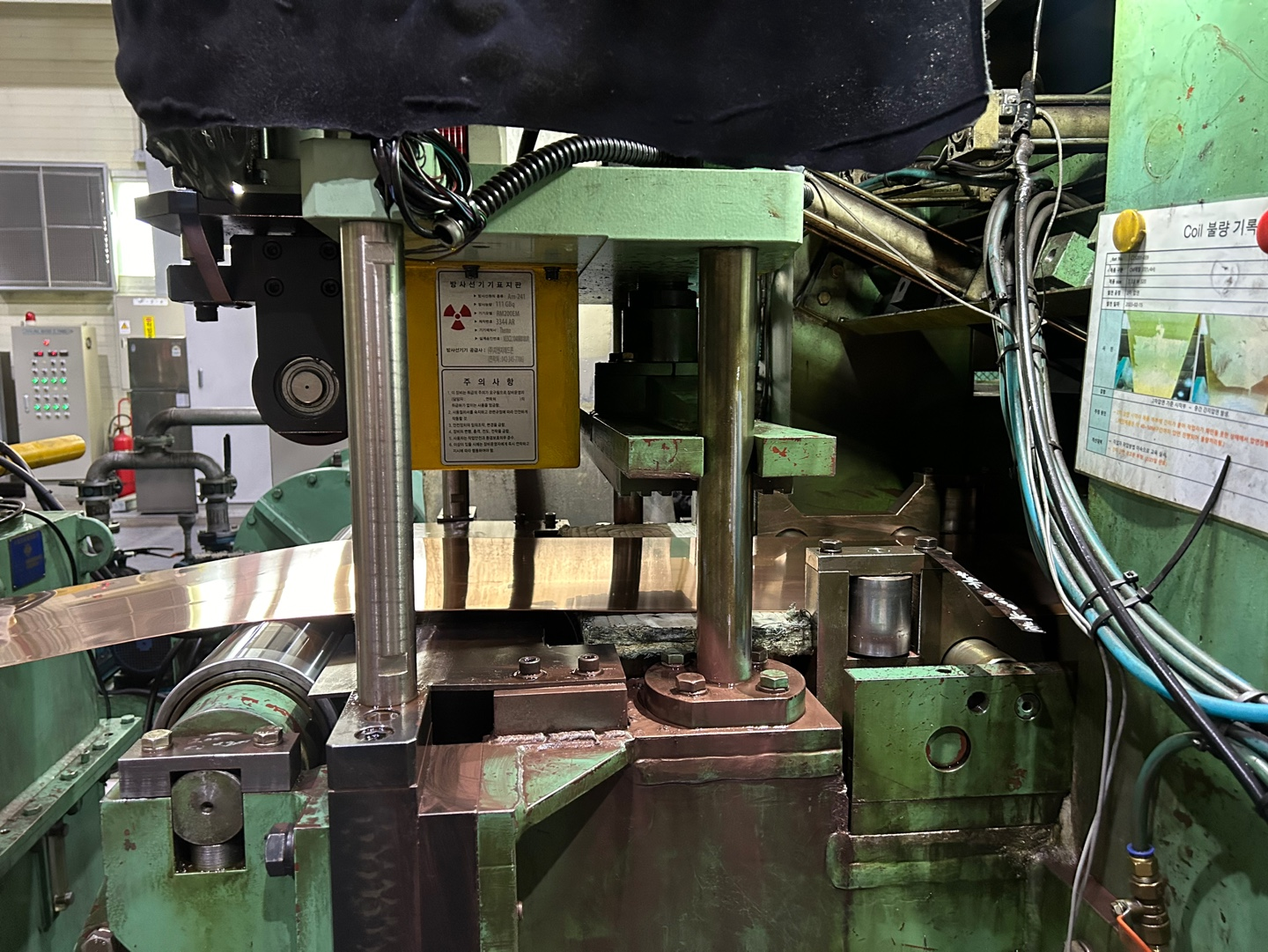

b. Input Guiding System.

C. Mill

d. Output Guiding System

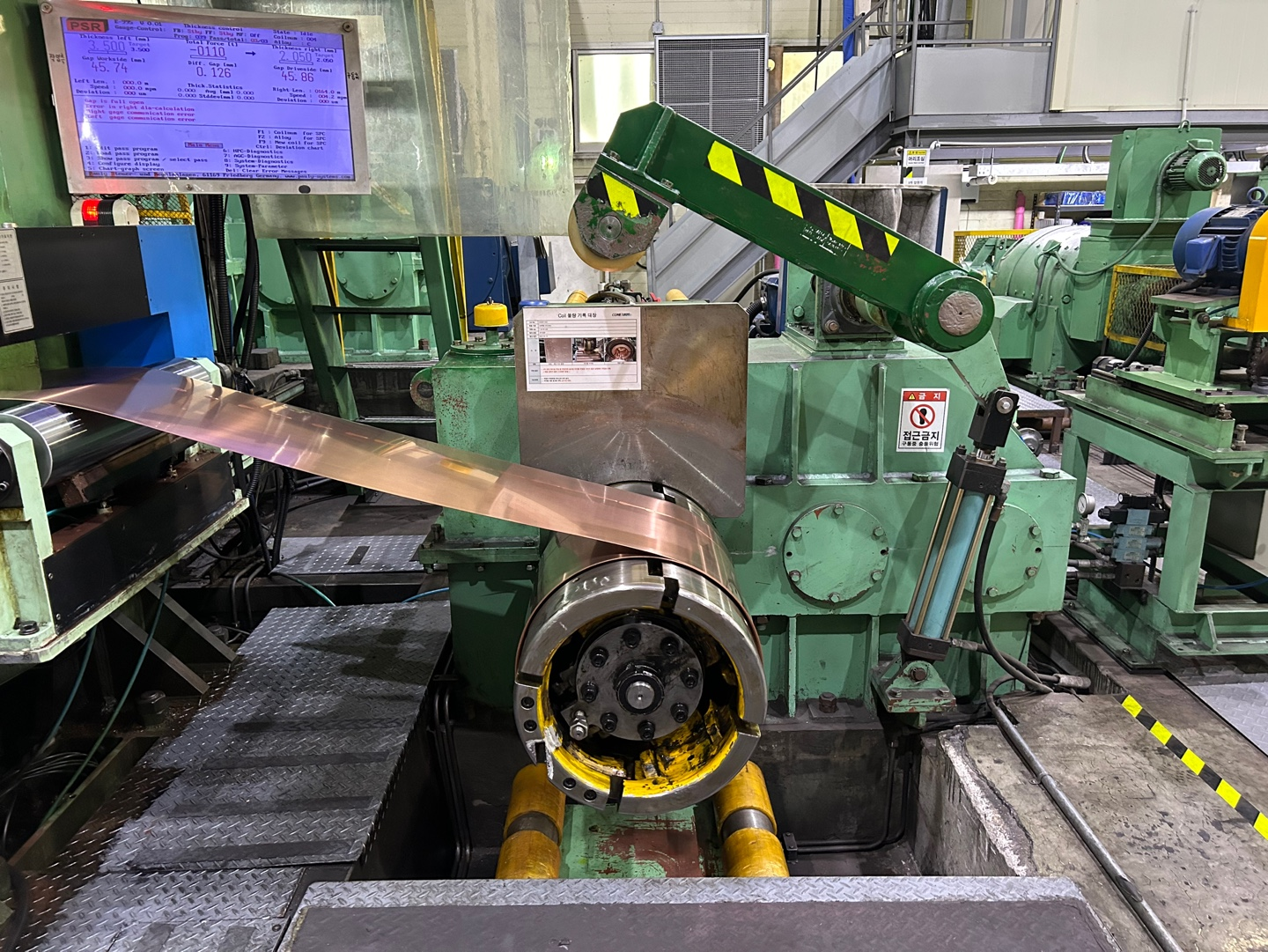

e. Right Tension Recoiler

** The specifications presented include unverified and estimated parts .**

** The price is quoted as is where is at the time of sale .**

** All specifications are subject to verification by purchaser **
