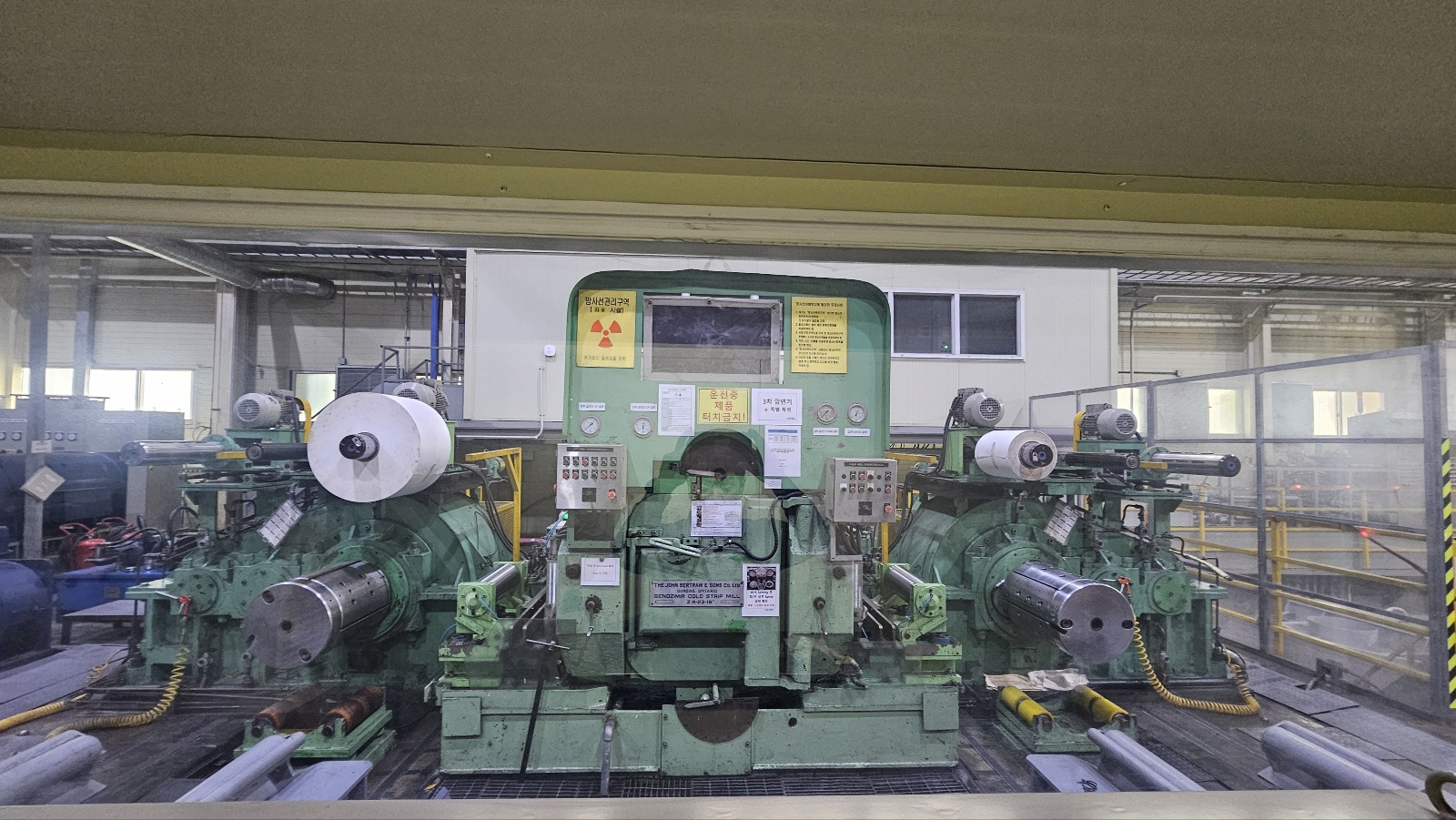

- Waterbury Farrell ( USA ) ZR 23-19 20High Mill

Product Overview

Waterbury Farrell ( USA ) ZR 23-19 20High Mill is a used Factory Equipment-Related item available from ASKINDEX Korea. It is kept in stock at our etc showroom, so stock checks and price quotations are available immediately. You can also compare other used products from the same manufacturer (Waterbury Farrell ( USA )) and the same category (Factory Equipment-Related).

Manufacture

-. Year : 1960

-. Company : Waterburry Farrel ( USA )

. Type : 20 High Reversible

. Screwdown : Hydraulic

-. AGC : Pauly System ( Germany )

. Pass Direction : Left to Right

Revamping

-. Year : 2017

-. Company : Partec ( Korea )

-. Details of Revamping : Drive System, AGC

. Thickness Gauge : v-Ray

. Working Data

-. Material : Copper & Copper Alloys

-. Starting Gauge : Maximum 4mm

-. Finishing Gauge : Maximum 0.05mm

-. Width : 200 - 482mm

. Coil Data

-. Coil Weight : 3,000 Kg

-. Coil Dia : 508 - 1200mm0

Drive Data

-. Mill Motor : DC 225 Kw 600/1000RPM Reduction Ratio : 3.13 : 1

-. Reel Motor : DC 150Kw 300/1200 Reduction Ratio : 12 : 1

-. Line Speed : 120 m/min

Roll Data

-. Work Roll : 40mm0 X 533mm Barrel Face 364 Pieces

-. Taper Roll : 71mm0 X 597mm Barrel Face 12 Pieces

-. Idle Roll :128mm0 X 533mm Barrel Face 39 Pieces

-. Drive Roll : 128mm0 X 550mm Barrel Face 33 Pieces

-. Back Up Bearing : 225mm0 X 120mm Face 79 Pieces ( 3.3 Sets )

Housing : Mono Block

Coolant System

-. Type : Mineral

-. Filtering System : Supamic

-. Spray : 600 l/mim

. Composition

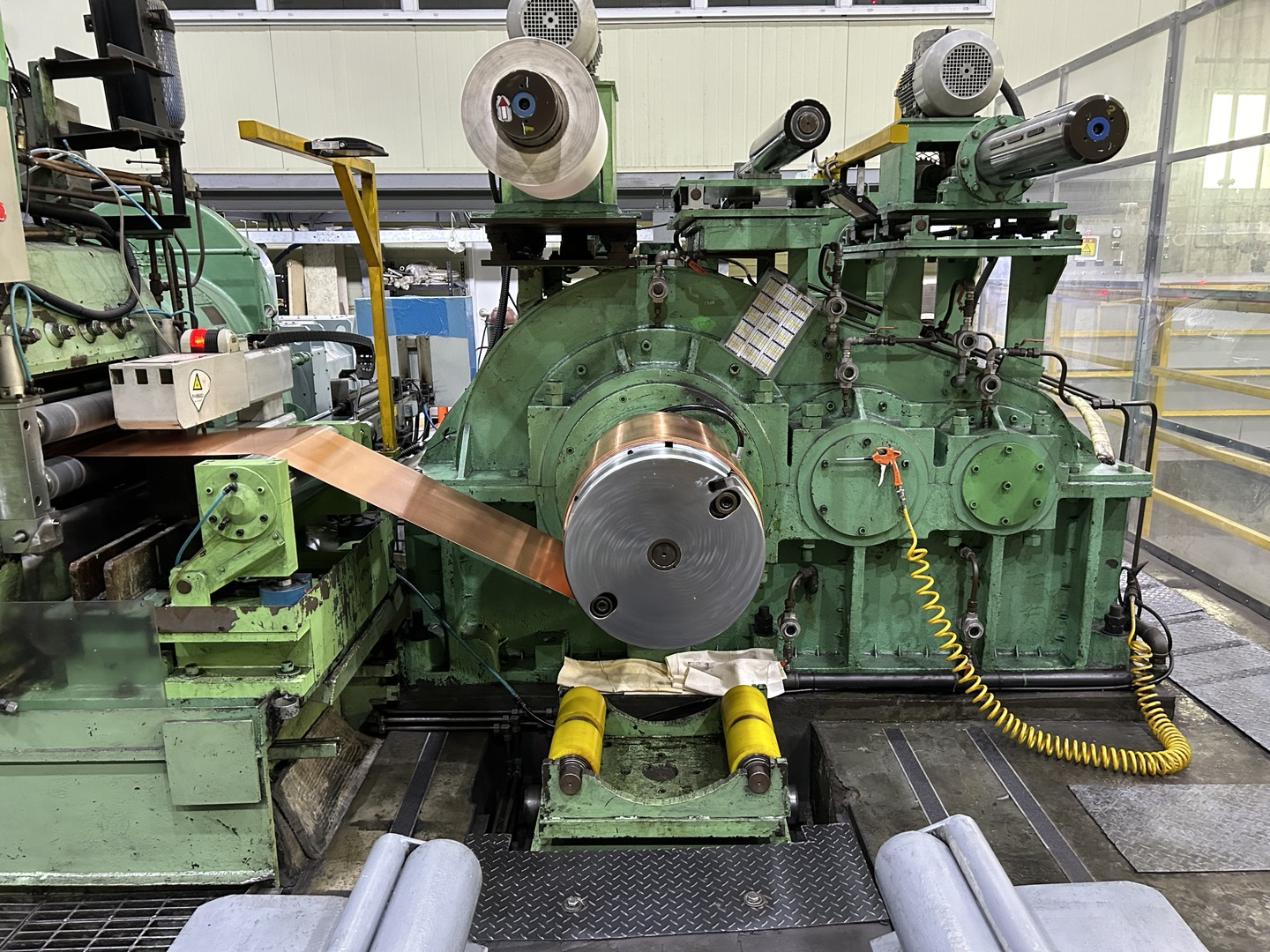

a. Left Tension Reel

b. Input Guiding System.

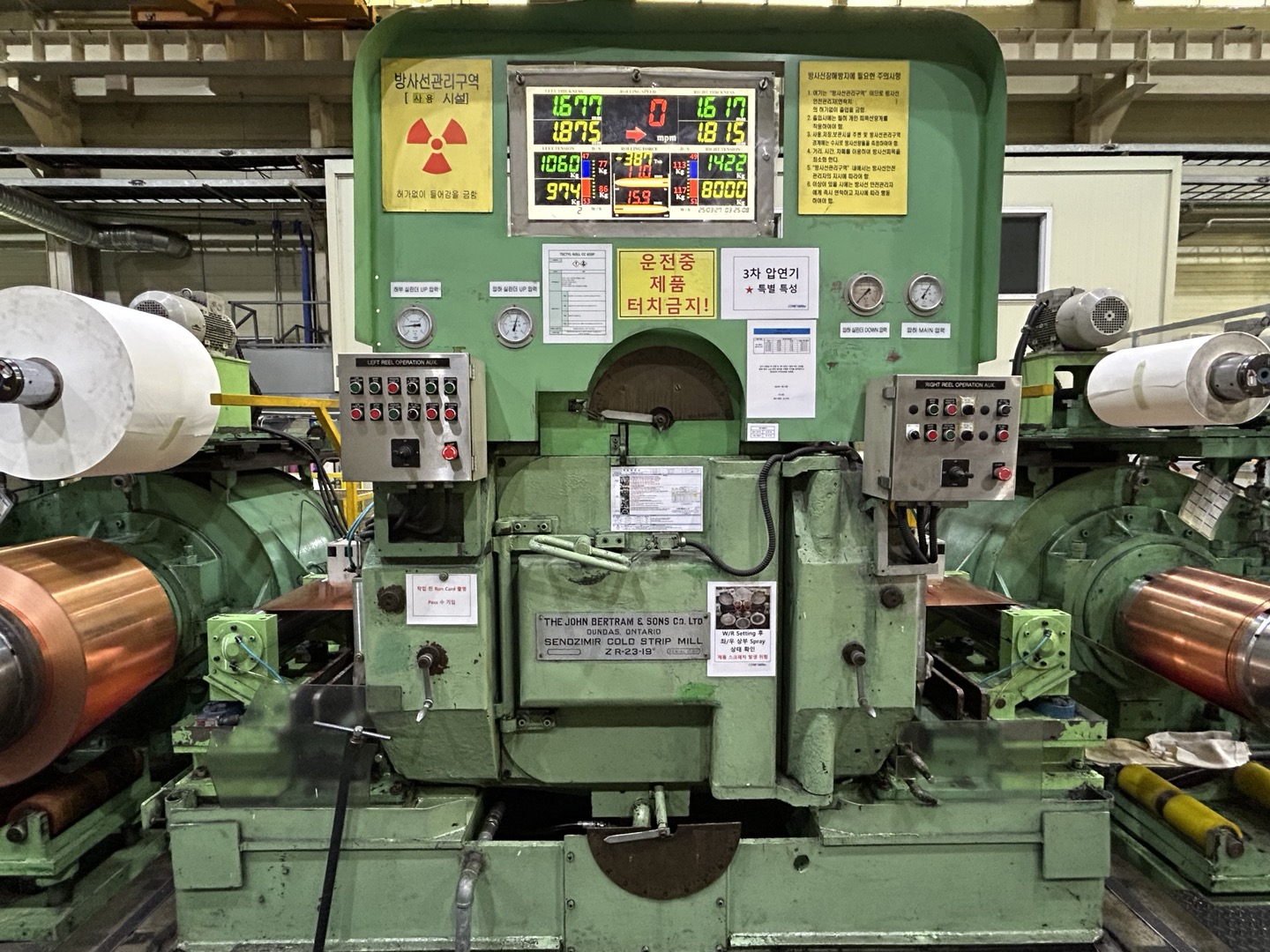

C. Mill

d. Output Guiding System

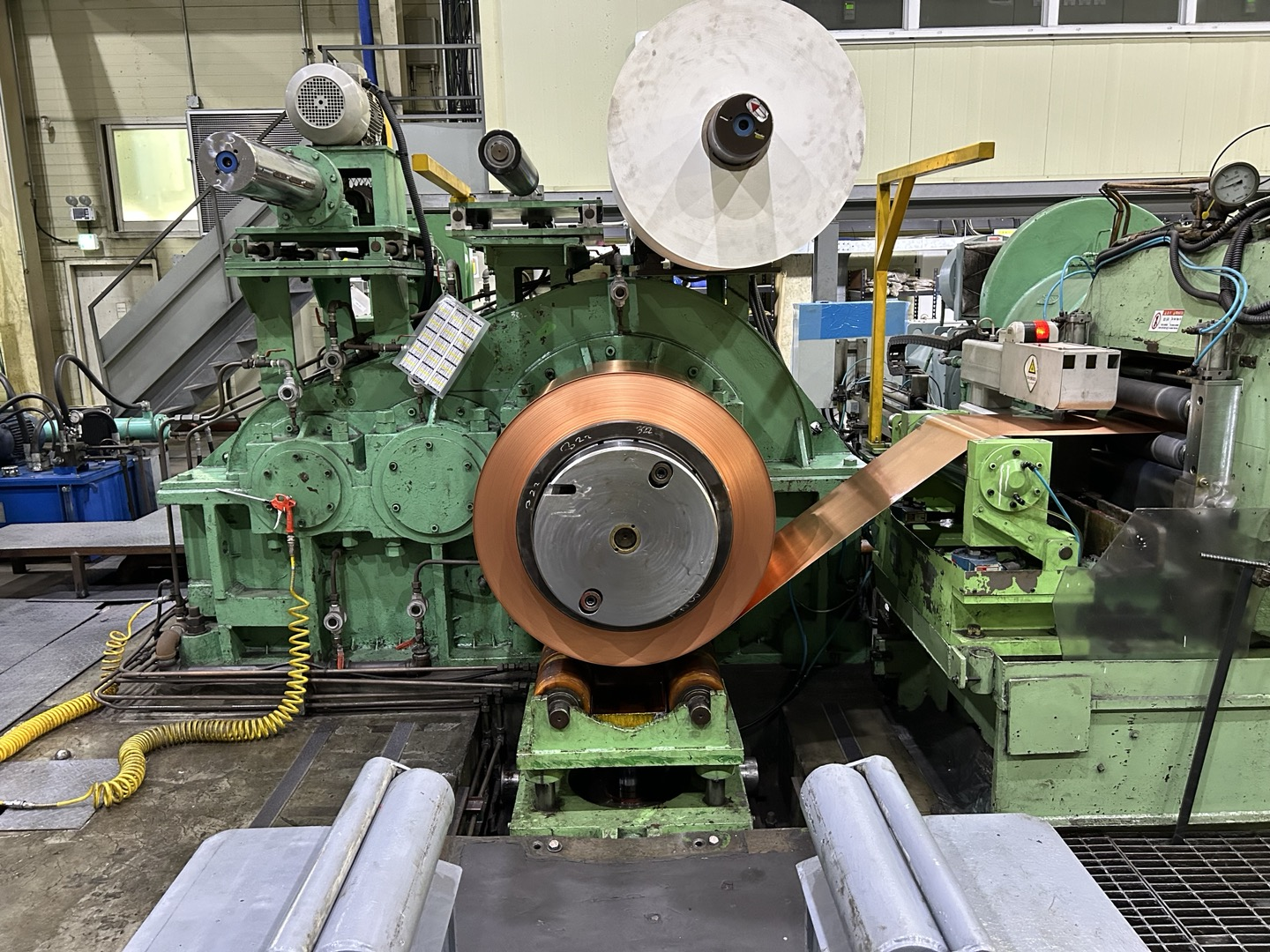

e. Right Tension Reel

** The specifications presented include unverified and estimated parts .**

** The price is quoted as is where is at the time of sale .**

** All specifications are subject to verification by purchaser **
