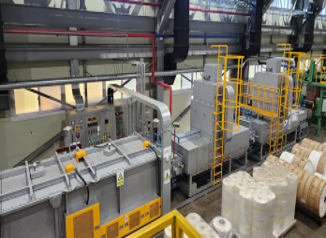

- Handuck R-FECO ( Korea ) Continuous Bright Strip to Strip Annealing Furnace

Product Overview

Handuck R-FECO ( Korea ) Continuous Bright Strip to Strip Annealing Furnace is a used Factory Equipment-Related item available from ASKINDEX Korea. It is kept in stock at our etc showroom, so stock checks and price quotations are available immediately. You can also compare other used products from the same manufacturer (Handuck R-FECO ( Korea )) and the same category (Factory Equipment-Related).

· Manufacture :

  -. Furnace Part : Handuck R-FECO ( Korea )

  -. Terminal Part : Mirae Tech Inc,. ( Korea )

  -. Manufacturing Year : 2020

· Type : Continuous Bright Strip to Strip Annealing Furnace

· Mode : Horizontal

· Pass Direction : Left to Right

· Heating Source : Electric

  -. Heating Rate : 310 Kw

  -. Operating Temperature : Max 850℃

  -. Working Temperature : 200 - 750℃

· Capacity

  -. Material : Copper & Copper Alloys

  -. Capacity : 400 Kg / Hr ( 1.7 Thickness Value )

· Working Data

  -. Thickness : 1.2 - 0.1 mm

  -. Width : 450 mm

  -. Coil Dia : 508 - 1200mmΦ

  -. Coil Weight : 3,000 Kg

  -. Speed : Max 15 m/min

· Atmosphere Gas : H2 & N2 Mixed Gas

  -. Input Volume : 20Nm3/Hr

  -. Mixing Rate : 10% H2 + 90% N2

· Colling Zone

  -. Method : Jet Cooling

  -. Exit Temperature : 40℃

· Composition

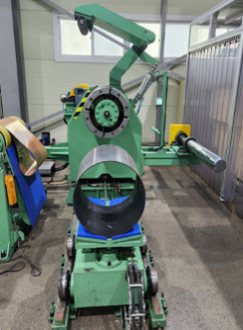

  a. Uncoiler with Snubber Roll

  b. Pinch Roll with Coil Opener

  c. Shear

  d. Spot Welder

  e. Entry Bridle Roll Unit

  f. Dancer Roll with Load Cell

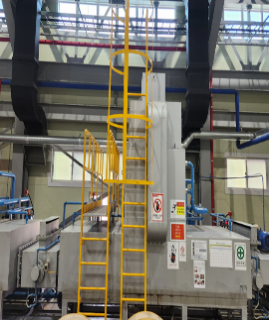

  g. Heating Chamber

  h. No1 Cooling Chamber

  i. No2 Cooling Chamber

  J. CPC Roll Unit

  k. Exit Bridle Roll Unit

  l. EPC Unit

  m. Shear

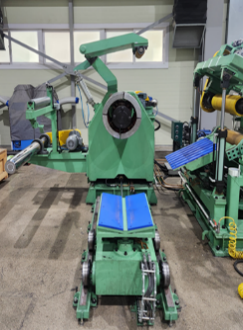

  n. Recoiler with Snubber Roll

**The specifications presented include unverified and estimated parts.**

**The price is quoted as is where is at the time of sale.**

**All specifications are subject to verification by purchaser**
