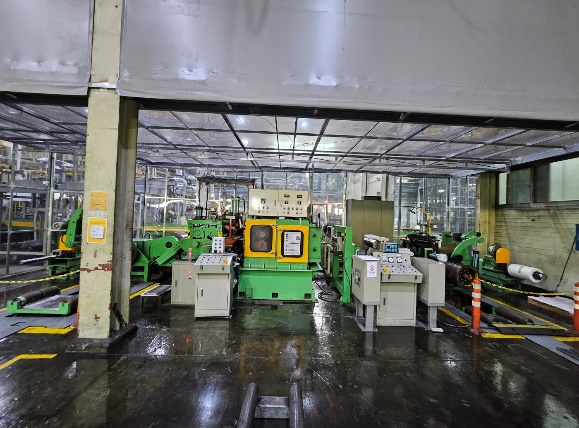

- Shinkwang Tech ( Korea ) Rough Surface Grinding Line

Product Overview

Shinkwang Tech ( Korea ) Rough Surface Grinding Line is a used Factory Equipment-Related item available from ASKINDEX Korea. It is kept in stock at our etc showroom, so stock checks and price quotations are available immediately. You can also compare other used products from the same manufacturer (Shinkwang Tech ( Korea )) and the same category (Factory Equipment-Related).

· Manufacturer :

  -. Terminal Part : Shinkwang Tech ( Korea )

  -. Brush Part : Changjo ( Korea )

  -. Manufacturing Year : 2018. 06

· Type : Roll Grinding

  -. Number of wheel : 1 Unit ( 1 Bottom & 1 Upper )

  -. Number of Grit : Scotch-Brite CRS

  -. Dimension of Wheel : 127mmΦID X 260mmΦOD X 530mmL

  -. Wheel Speed : Max 1400m/min ( Speed Adjustable )

· Wheel Power : AC 7.5Kw  6 Pole

· Pass Direction : Left to Right

· Working Data

  -. Thickness :3.5 - 1.5 mm

  -. Width : 650 mm

  -. Coil Weight : 2,500 Kg

  -. Speed : Max 55 m/min

· Line Data

· Uncoiler

  -. Coil Dia : 508 - 1100mmΦ

  -. Motor : AC 1.5Kw 4Pole

  -. Reduction Rate : 275 : 1

· Driven Pinch Roll & 3 Roll Leveller

  -. Roll Demension : 175mmΦ

  -. Motor : 0.75Kw 4Pole

  -. Reduction Rate : 30 : 1

· Recoiler

  -. Coil Dia : 508 - 1100mmΦ

  -. Motor : AC 30Kw 8Pole

  -. Reduction Rate : 26.27 : 1

· Composition

  a. Uncoiler driven by Motor, with Driven Snubber Roll.

  B. Coil Openning Table

  c. Driven Pinch Roll & 3 Roll Leveller

  d. Grinding Unit ( Upper & Bottom )

  e. Air Knief Unit

  f. Shower Unit

  g. Side Guide & Pinch Roll

  h. Recoiler with snubber Roll

**The specifications presented include unverified and estimated parts.**

**The price is quoted as is where is at the time of sale.**

**All specifications are subject to verification by purchaser**
