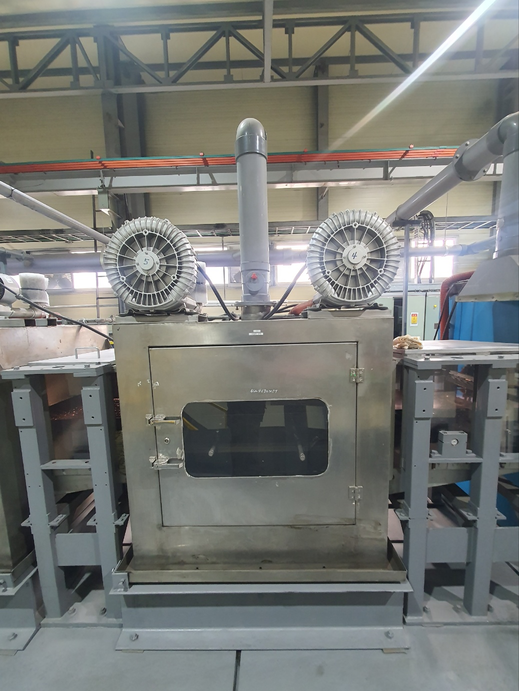

- Wuishi ( China ) Continuous Alkali Spray & Brushing Degreasing Line

Product Overview

Wuishi ( China ) Continuous Alkali Spray & Brushing Degreasing Line is a used Factory Equipment-Related item available from ASKINDEX Korea. It is kept in stock at our etc showroom, so stock checks and price quotations are available immediately. You can also compare other used products from the same manufacturer (Wuishi ( China )) and the same category (Factory Equipment-Related).

Continuous Alkali Spray & Brushing Degreasing Line

· Manufacturer :

  -. Year : 2018

  -. Company : Wuishi ( China )

· Type : Spray & Nyron Brushing

· Alkali Zone Brush

  -. Brush Dimension : 380mmΦ X 600mmL

  -. Motor : AC 5.5Kw 1200RPM

  -. Wheel Speed : Max 1300m/min ( Speed Adjustable )

· Water Zone Brush

  -. Brush Dimension : 380mmΦ X 600mmL

  -. Motor : AC 7.5Kw 1800RPM

  -. Wheel Speed : Max 2000m/min ( Speed Adjustable )

· Pass Direction : Left to Right

· Working Data

  -. Thickness : 1.5 - 0.2 mm

  -. Width : 450 mm

  -. Coil Weight : 3,000 Kg

  -. Speed : Max 70 m/min

· Line Data

· Uncoiler

  -. Coil Dia : 508 - 1200mmΦ

  -. Motor : DC 18.5Kw 1540RPM

  -. Reduction Rate : 32.3 : 1

· Exit Bridle Roll

  -. Dia : 800mm

  -. Motor : DC 45Kw 1500RPM

  -. Reduction Rate : 40.5 : 1

· Recoiler

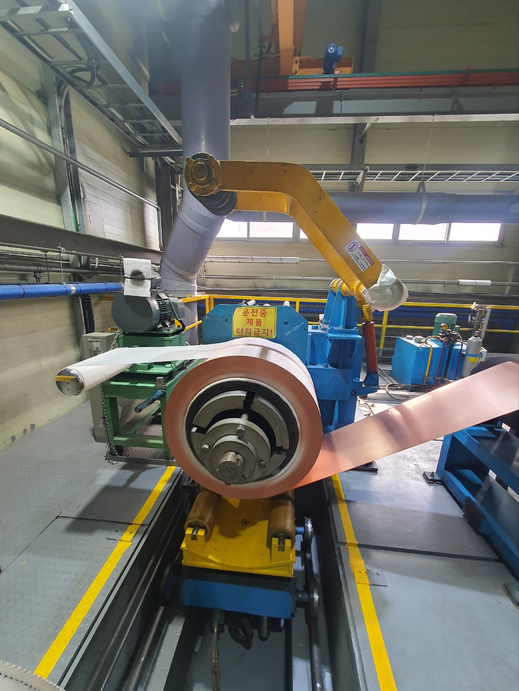

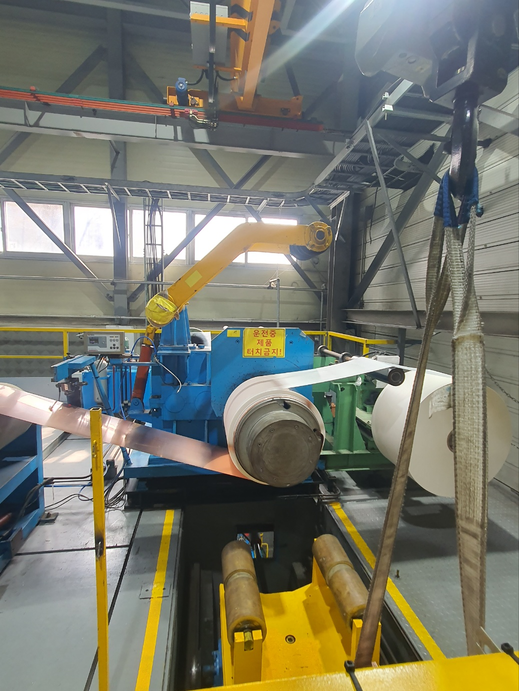

  -. Coil Dia : 508 - 1200mmΦ

  -. Motor : DC 55Kw 1500RPM

  -. Reduction Rate : 31.1 : 1

· Composition

  a. Uncoiler with Snubber Roll

  b. Deflecter Roll with Guide Plate

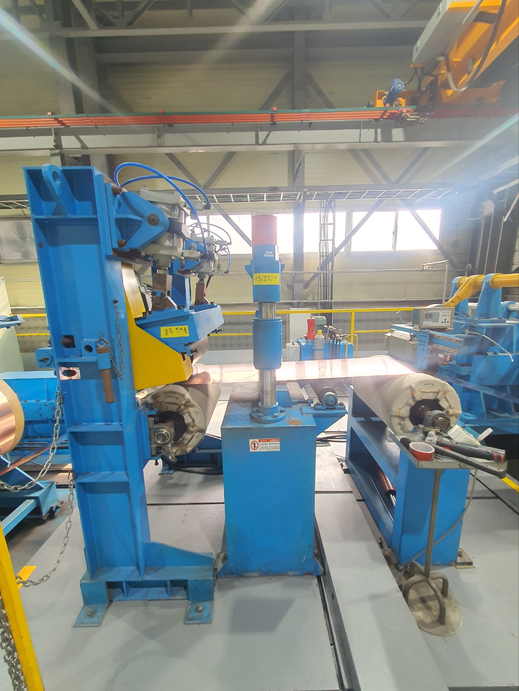

  C. Shear & Welder

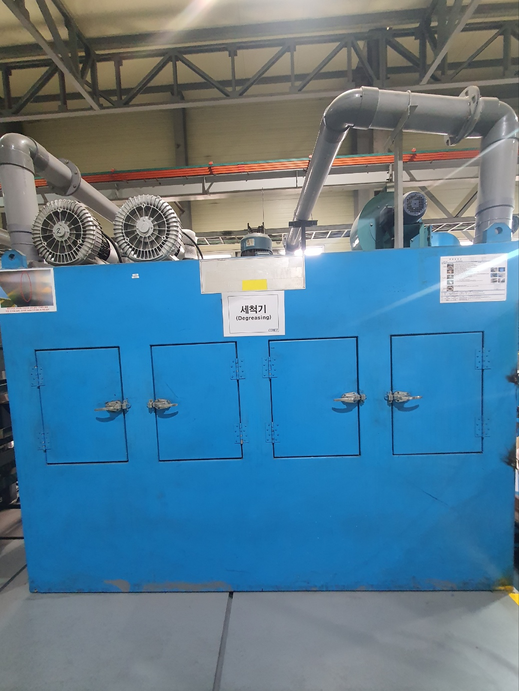

  d. Alkali Spray

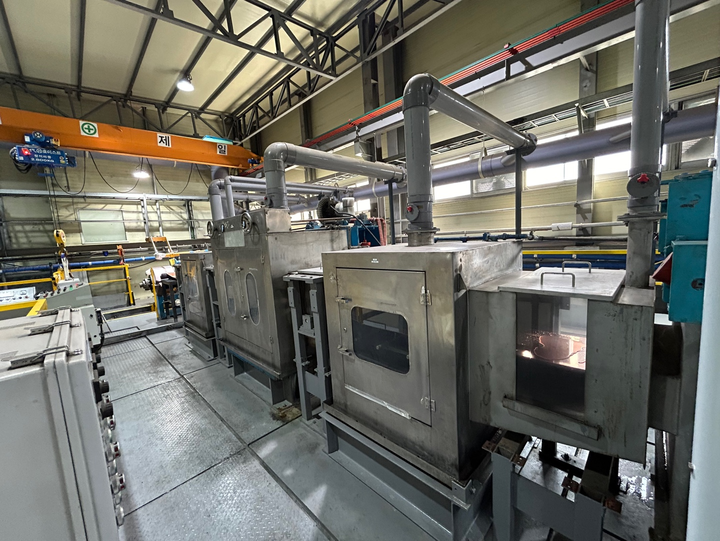

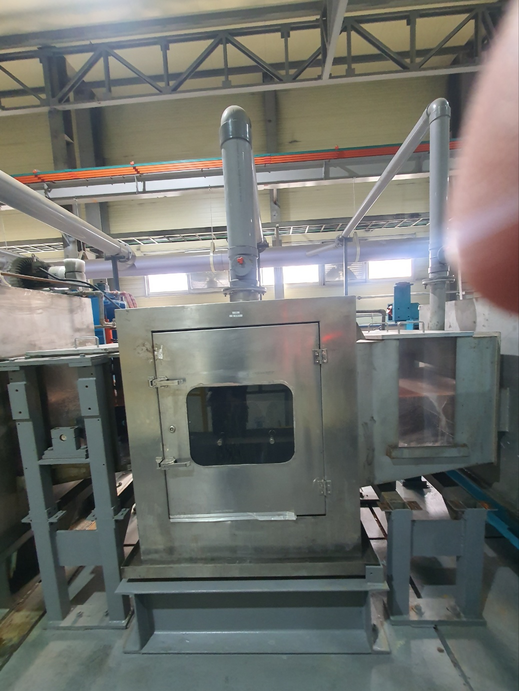

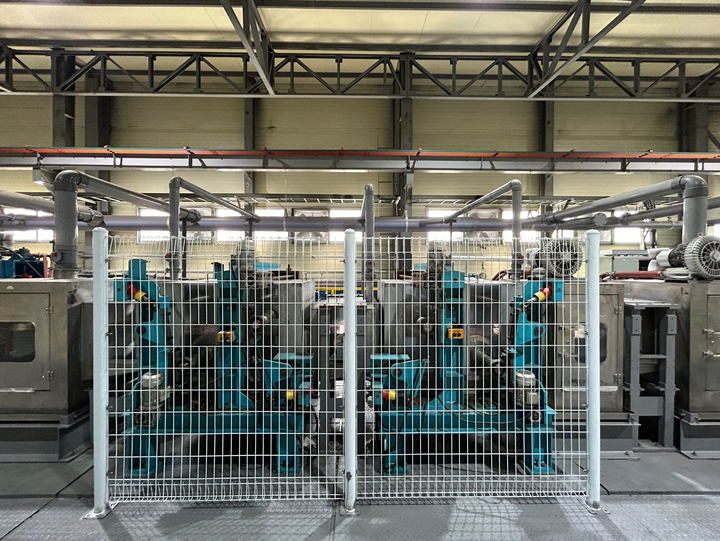

  e. Brush Box ( 1 Head : 0ne of 1 Bottom & 1 Upper )

  f. Cold Shower

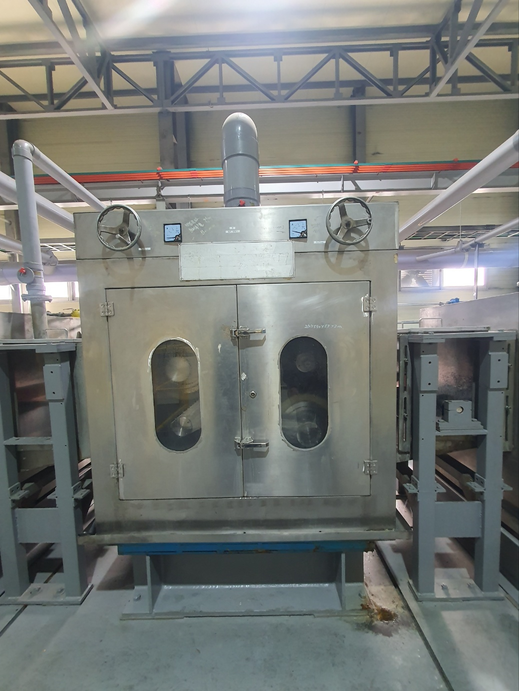

  g. Brush Box ( 2 Head : Two of 1 Bottom & 1 Upper )

  h. Cold Shower

  i. Hot Water Dipping ( with anti-corrosion treatment )

  j. Hot Air Dryer

  k. Exit Bridle Roll driven by Motor

  l. Shear

  m. Deflector Roll with EPC Controller

  n. Recoiler with Snubber Roll

**The specifications presented include unverified and estimated parts.**

**The price is quoted as is where is at the time of sale.**

**All specifications are subject to verification by purchaser**
