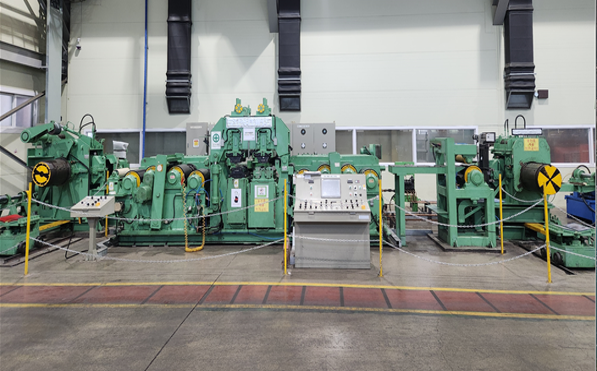

- Sudwig ( Germany ) Floatrol Stretch Levelling System

Product Overview

Sudwig ( Germany ) Floatrol Stretch Levelling System is a used Factory Equipment-Related item available from ASKINDEX Korea. It is kept in stock at our etc showroom, so stock checks and price quotations are available immediately. You can also compare other used products from the same manufacturer (Sudwig ( Germany )) and the same category (Factory Equipment-Related).

Tension Levelling Line

· Manufacturer:

  -. Year : 1962

  -. Company : Sudwig ( Germany )

· Type : Floatrol Stretch Levelling System

· Pass Direction : Left to Right

· Revamping

  -. Year : 2019. 05

  -. Company : Dongshin Tech ( Korea )

  -. Details of Revamping : Electric Control System

· Working Data

  -. Material : Stainless Steel, Copper & Copper Alloys

  -. Thickness : 0.15 - 0.8 mm

  -. Width : 45 - 450 mm

  -. Coil Weight : 4,000 Kg

  -. Speed : Max 60 m/min

· Line Data

· Uncoiler

  -. Dia : 508 -1300mm

  -. Motor : DC 18.5Kw 1350RPM

  -. Reduction Rate : 26 : 1

· Entry Bridle Roll

  -. Dia : 400mm

  -. Drive Method : Variable Connection Drive through Exit Bridle Roll

  -. Reduction Rate : 26 : 1

· Leveller Unit

  -. Type : Dia : 400mm

  -. Type Method : Floatrol

  -. Drive : Free

· Exit Bridle Roll

  -. Dia : 400mm

  -. Motor : DC 30Kw 1000/1150RPM

  -. Reduction Rate : 26 : 1

· Recoiler

  -. Dia : 508 -1300mm

  -. Motor : DC 18.5Kw 1350RPM

  -. Reduction Rate : 26 : 1

· Cmposition

  a. Uncoiler with Snubber Roll

  b. Entry Bridle Roll ( 4 ea )

  C. Levelling Unit

  d. Exit Bridle Roll ( 4 ea )

  e. Recoiler

**The specifications presented include unverified and estimated parts.**

**The price is quoted as is where is at the time of sale.**

**All specifications are subject to verification by purchaser**
