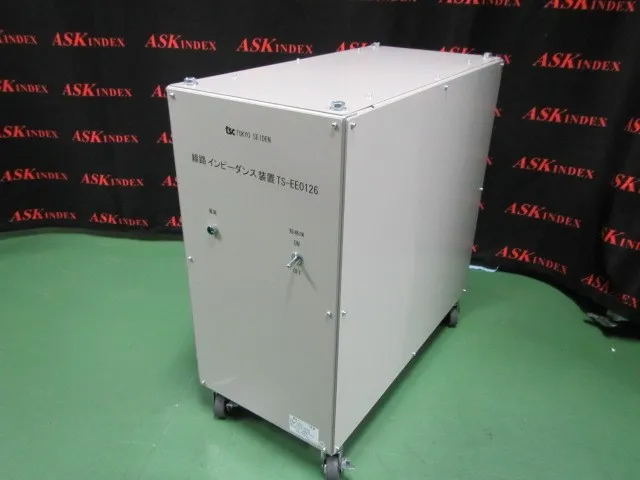

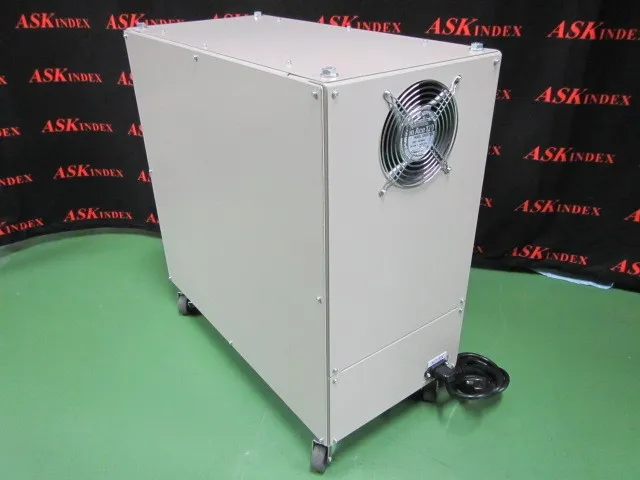

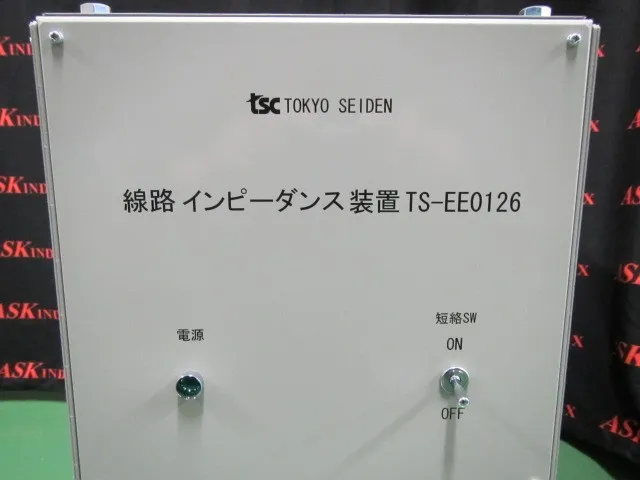

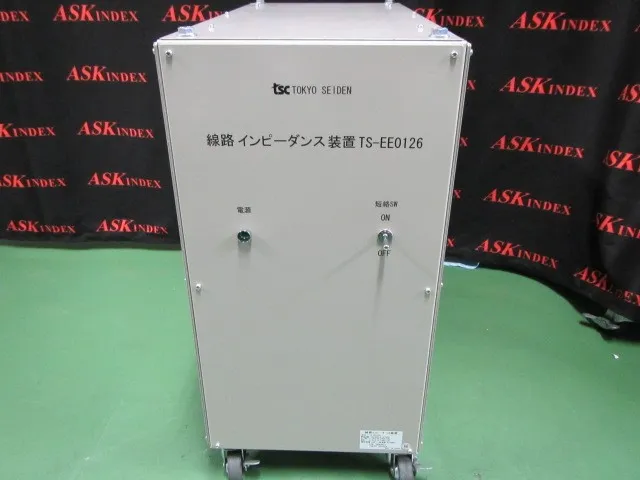

Line Impedance Device - Tokyo Seiden TS-EE0126
Product Specifications
Maker Tokyo Seiden
Model TS-EE0126
Category Measuring Instruments ・ Instruments
Model year 2018
Condition Used
Showroom Information
Exhibition hall Enzan Technical Center
Price & Inquiry
price Price Inquiry
Inquiry Number J30176
Product Overview
Tokyo Seiden TS-EE0126 is a used Measuring Instruments ・ Instruments item available from ASKINDEX Korea. It is kept in stock at our Enzan Technical Center showroom, so stock checks and price quotations are available immediately. You can also compare other used products from the same manufacturer (Tokyo Seiden) and the same category (Measuring Instruments ・ Instruments).
Mechanical Specifications

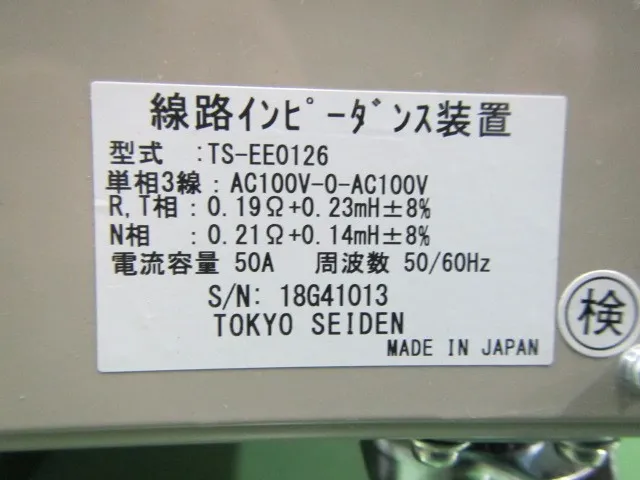

RT phase: 0.19Ω+0.23mH N phase: 21Ω+0.14mH
Input: 1φ3-wire AC100V 50/60Hz 50A
Phase wiring: Single-phase three-wire
Frequency 50/60Hz
Voltage at connection point: Between RN: AC100V, Between TN: AC100V, Between RT: AC200V
Current capacity 50Arms
Impedance R phase, T phase
DC resistance: 0.19Ω±8%
Inductance: 0.23mH±8%
N phase
DC resistance: 0.21Ω±8%
Inductance: 0.14mH±8%
Attachments
※ Click on the image below to zoom in.
