Temperature Controller - Physical and chemical industry SA100
Product Specifications
Maker Physical and chemical industry
Model SA100
Category Parts Related
Condition Used
Showroom Information
Exhibition hall Enzan Technical Center
Price & Inquiry
price Price Inquiry
Inquiry Number K50362
Mechanical Specifications
Digital indicating controller
Input Type
Thermocouple K, J, T, S, R, E, B, N, W5Re/W26Re, U, L, PLII
Resistance thermometer Pt100, JPt100
DC voltage DC0~5V, DC1~5V
DC current DC0~20mA, DC4~20mA
output
Relay contact output 1a contact
SSR drive voltage pulse output DC0/12V
Current output: DC 0 to 20mA, DC 4 to 20mA
External dimensions W47 D90 H47 Weight 120g
Power supply AC100~240V / AC24V / DC24V
Attachments
Product Overview
Physical and chemical industry SA100 is a used Parts Related item handled by ASKINDEX Korea. This listing has sold, but you can ask about restock or a similar unit, and request a quote. You can also compare other used products from the same manufacturer (Physical and chemical industry) and the same category (Parts Related).

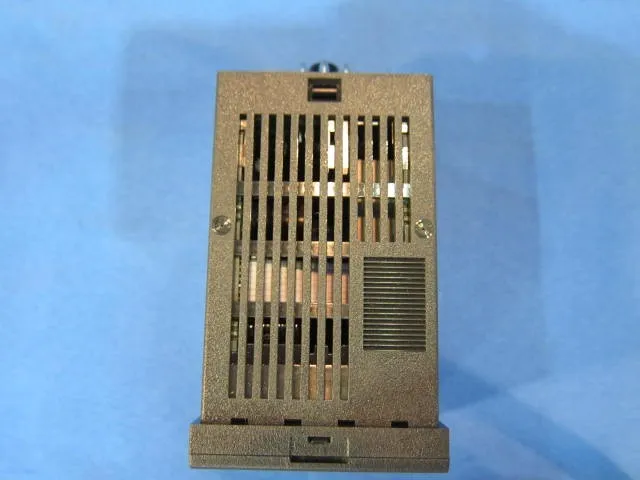

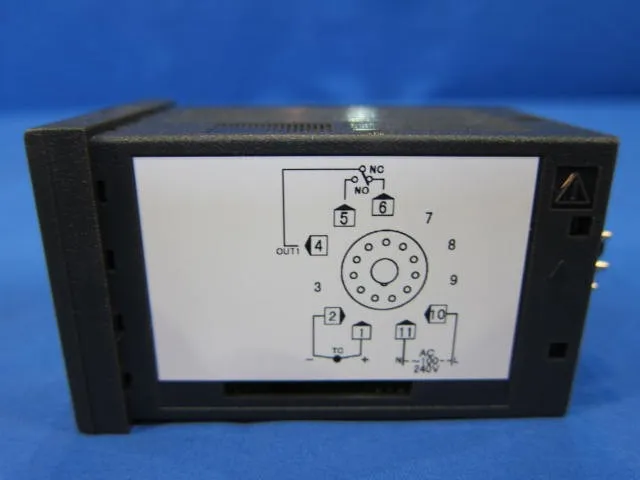

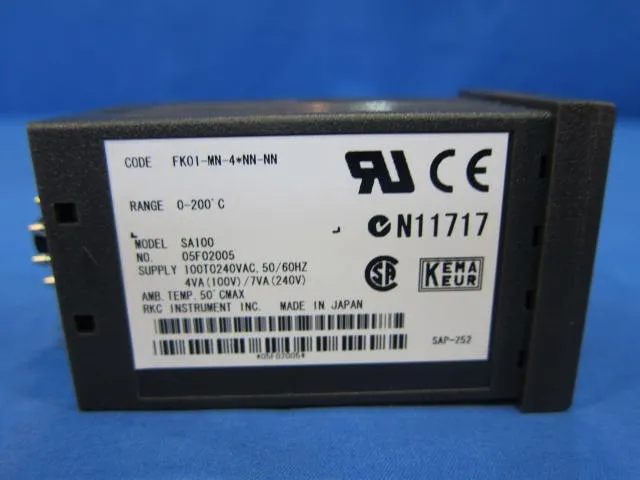

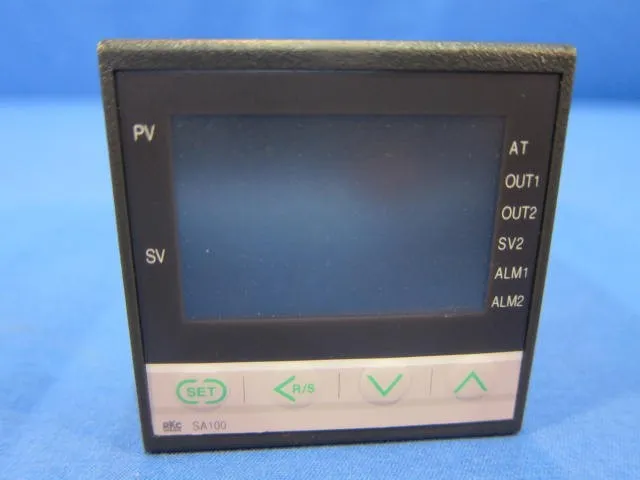

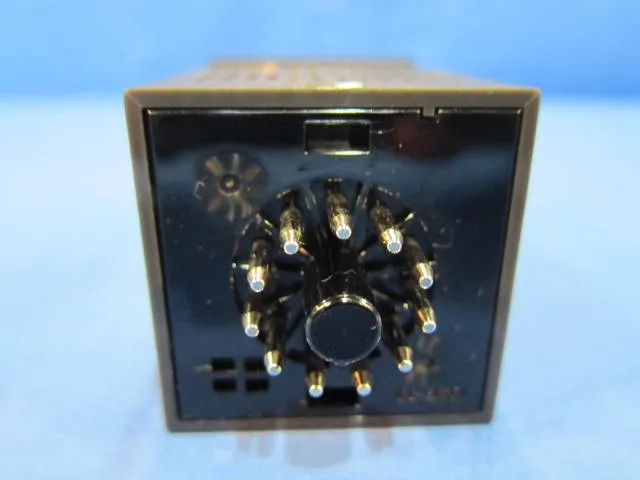

※ Click on the image below to zoom in.
