Sequencer (analog input/output unit) - Omron CJ1W-MAD42
Product Specifications
Maker Omron
Model CJ1W-MAD42
Category Parts Related
External Dimensions W40D95H90
Condition Used
Showroom Information
Exhibition hall Kyushu Technical Center
Price & Inquiry
price Price Inquiry
Inquiry Number N30825
Product Overview
Omron CJ1W-MAD42 is a used Parts Related item available from ASKINDEX Korea. External dimensions: W40D95H90. It is kept in stock at our Kyushu Technical Center showroom, so stock checks and price quotations are available immediately. You can also compare other used products from the same manufacturer (Omron) and the same category (Parts Related).
Mechanical Specifications
Number of inputs/outputs: 4 inputs/2 outputs
Signal range selection: 4 inputs individually / 2 outputs individually
Signal range: 1 to 5V/0 to 5V/0 to 10V/-10 to 10V/4 to 20mA
Resolution: 4000/8000
Conversion cycle: 1 ms/point
External connection: Removable terminal block
Number of occupied units: 1 unit
Attachments

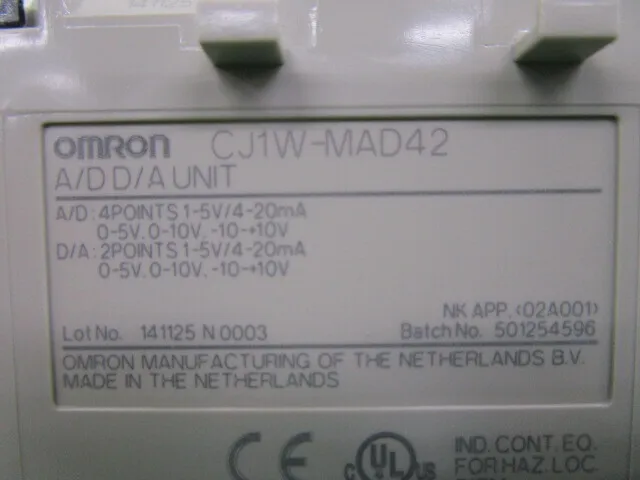

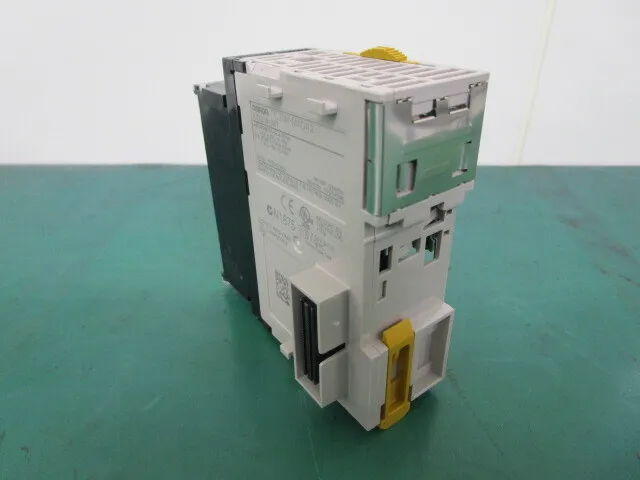

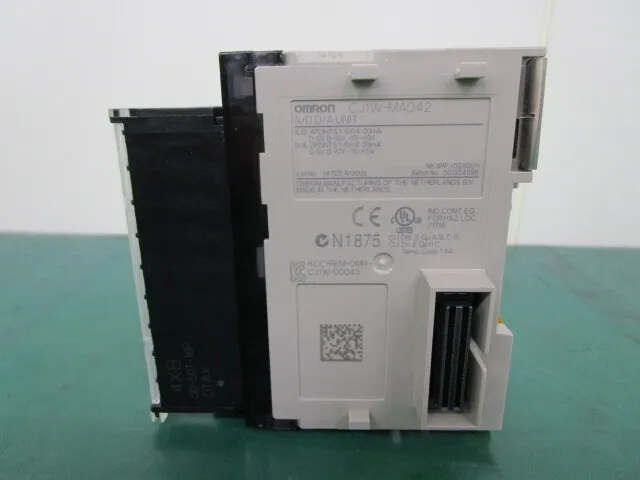

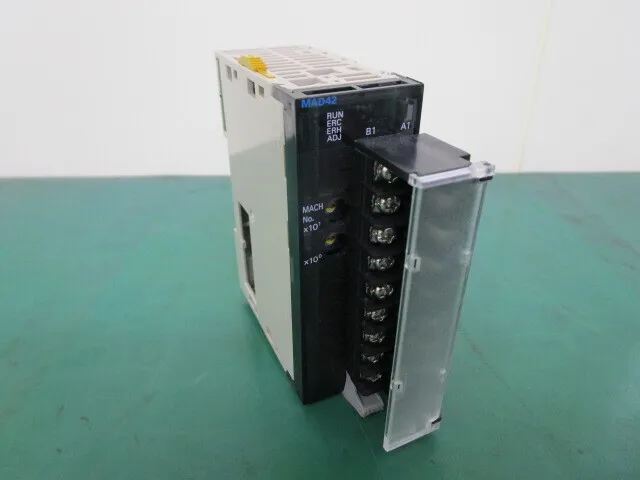

※ Click on the image below to zoom in.
