Digital Controller - Shimaden SR84-1P-N-90-1000500
Product Specifications
Maker Shimaden
Model SR84-1P-N-90-1000500
Category Parts Related
External Dimensions W48 D111 H96
Condition Used
Showroom Information
Exhibition hall Tsuru Technical Center
Price & Inquiry
price Price Inquiry
Inquiry Number N70683
Mechanical Specifications
・Power supply: 100 ~ 240V AC ±10% 50/60Hz
Thermocouple input resistance: 500kΩ or more External resistance tolerance: 100Ω or less
Resistance thermometer: Specified current: 0.25mA Conductor resistance tolerance: 5Ω or less per wire
・Voltage 0 to 10, 10 to 50, -10 to 10, 0 to 20, 0 to 50, 0 to 100mV DC
Input resistance: 500kΩ or more, multi-input
Current: 4 to 20, 0 to 20mA DC Receiving resistance: 250Ω
・Voltage 0 to 1, 1 to 5, -1 to 1, 0 to 2, 0 to 5, 0 to 10V DC
Input resistance: 500kΩ or more Multi-input
Attachments
Product Overview
Shimaden SR84-1P-N-90-1000500 is a used Parts Related item handled by ASKINDEX Korea. External dimensions: W48 D111 H96. This listing has sold, but you can ask about restock or a similar unit, and request a quote. You can also compare other used products from the same manufacturer (Shimaden) and the same category (Parts Related).

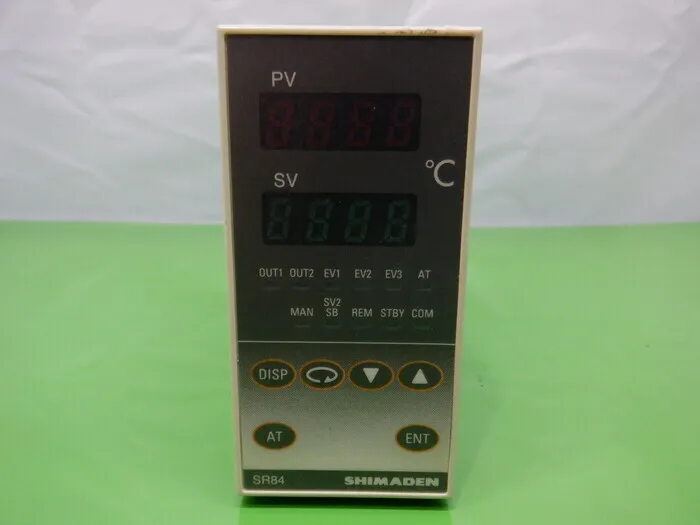

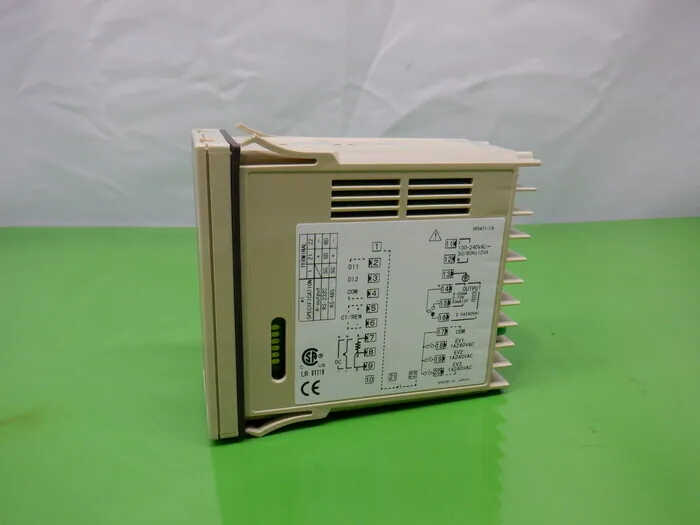

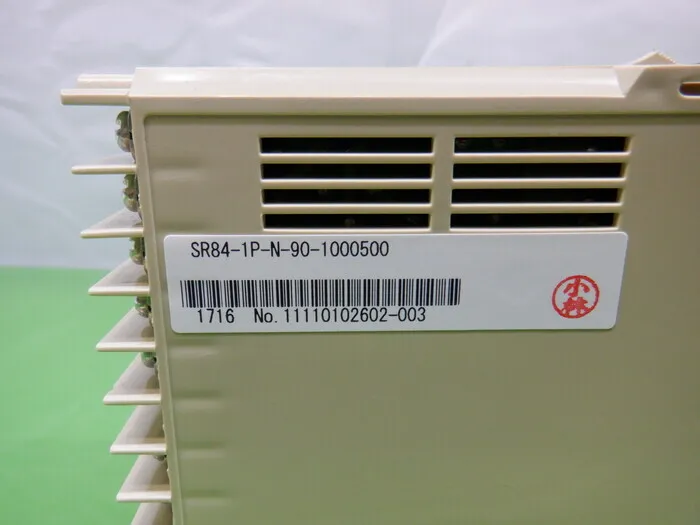

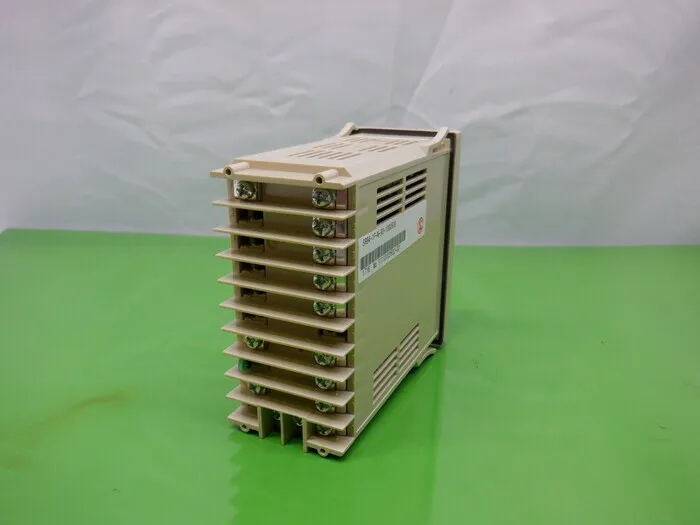

※ Click on the image below to zoom in.
