Digital Controller - Shimaden SR84-1P-N-90-1000500
Product Specifications
Maker Shimaden
Model SR84-1P-N-90-1000500
Category Parts Related
External Dimensions W48 D111 H96
Condition Used
Showroom Information
Exhibition hall Tsuru Technical Center
Price & Inquiry
price Price Inquiry
Inquiry Number N70684
Product Overview
Shimaden SR84-1P-N-90-1000500 is a used Parts Related item available from ASKINDEX Korea. External dimensions: W48 D111 H96. It is kept in stock at our Tsuru Technical Center showroom, so stock checks and price quotations are available immediately. You can also compare other used products from the same manufacturer (Shimaden) and the same category (Parts Related).
Mechanical Specifications
・Power supply: 100 ~ 240V AC ±10% 50/60Hz
Thermocouple input resistance: 500kΩ or more External resistance tolerance: 100Ω or less
Resistance thermometer: Specified current: 0.25mA Conductor resistance tolerance: 5Ω or less per wire
・Voltage 0 to 10, 10 to 50, -10 to 10, 0 to 20, 0 to 50, 0 to 100mV DC
Input resistance: 500kΩ or more, multi-input
Current: 4 to 20, 0 to 20mA DC Receiving resistance: 250Ω
・Voltage 0 to 1, 1 to 5, -1 to 1, 0 to 2, 0 to 5, 0 to 10V DC
Input resistance: 500kΩ or more Multi-input

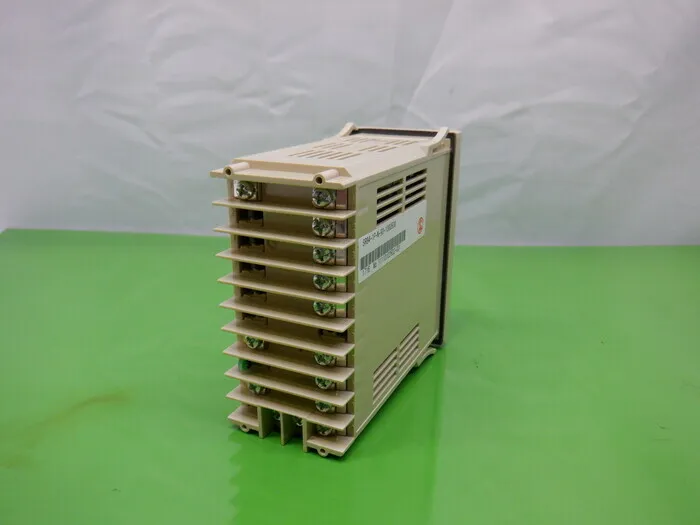

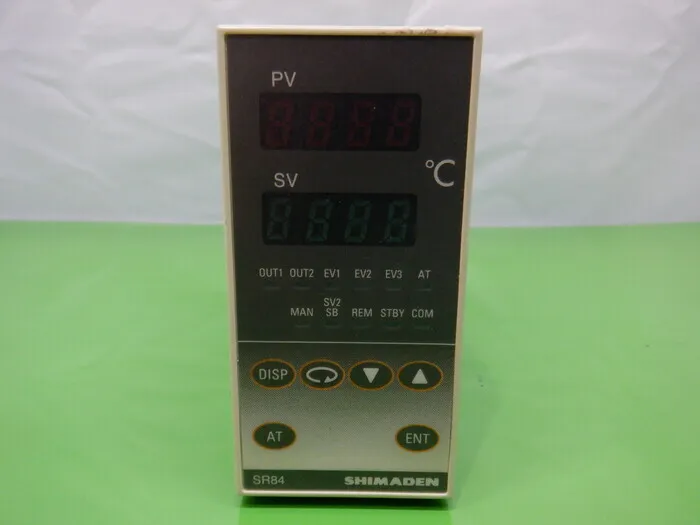

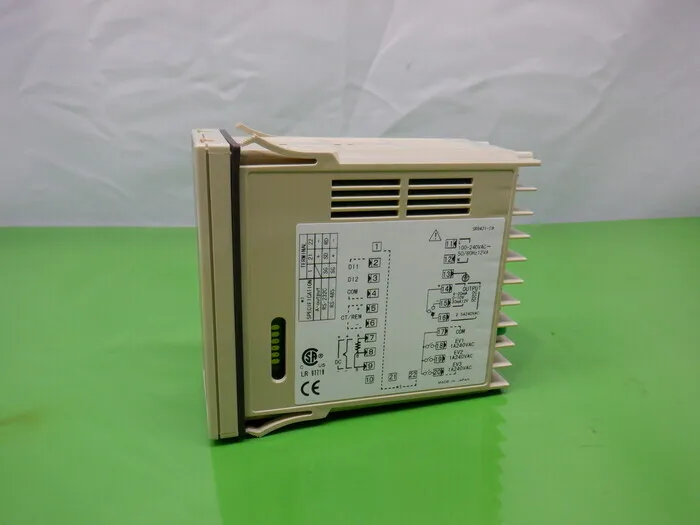

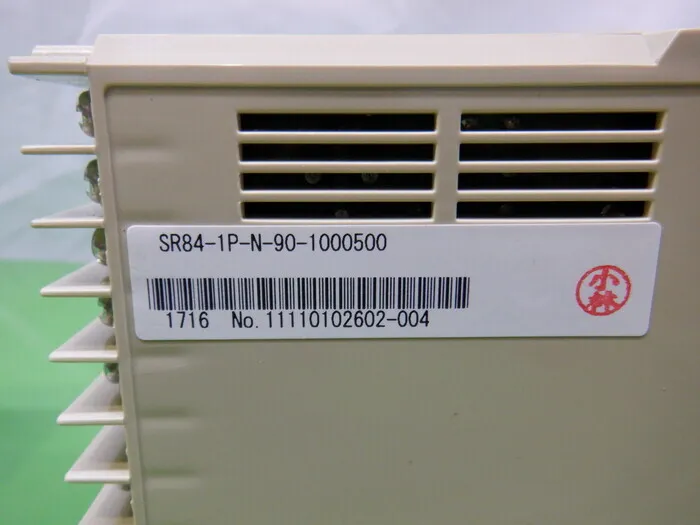

Attachments
※ Click on the image below to zoom in.
