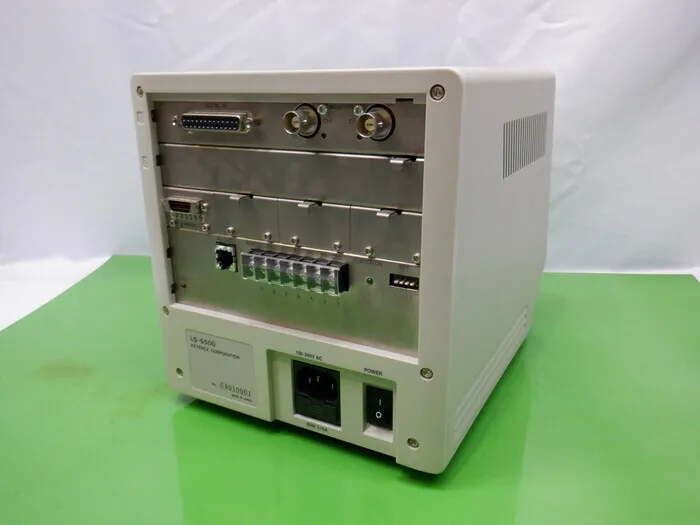

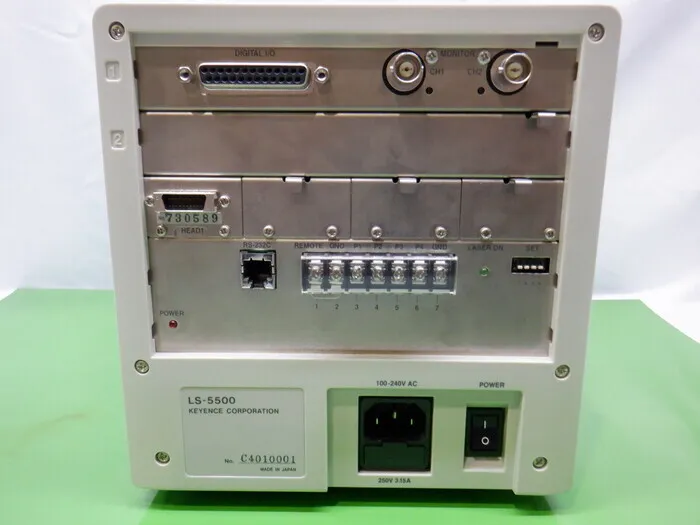

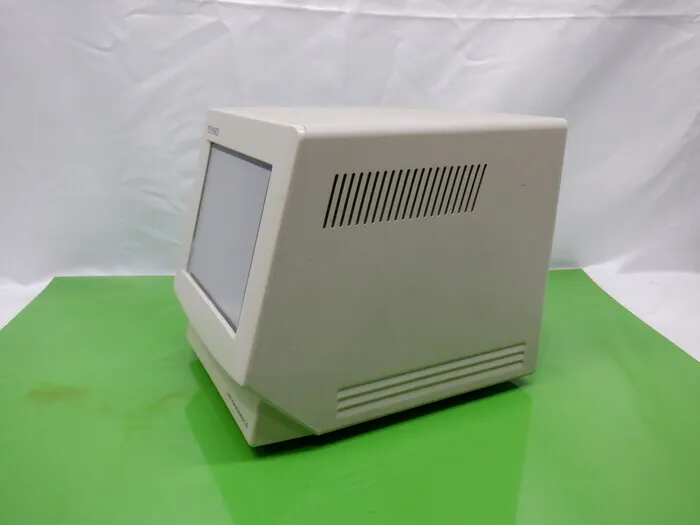

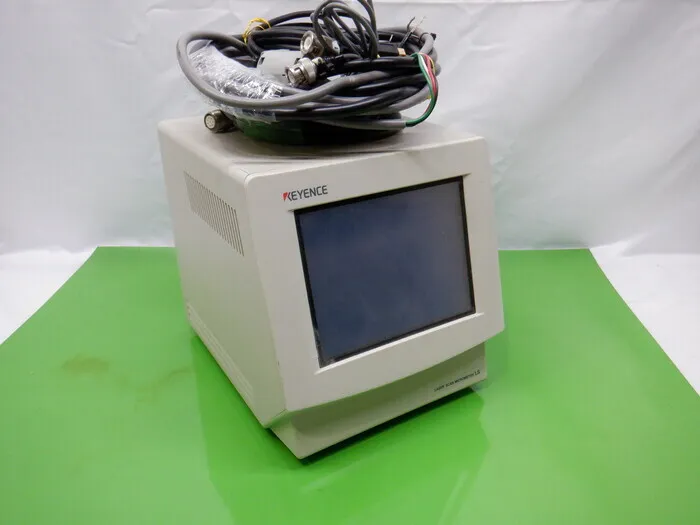

Controller (laser dimension measuring device) - Keyence LS-5500
Product Specifications
Maker Keyence
Model LS-5500
Category Other
External Dimensions W180 D230 H197
Condition Used
Showroom Information
Exhibition hall Enzan Technical Center
Price & Inquiry
price Price Inquiry
Inquiry Number N70772
Product Overview
Keyence LS-5500 is a used Other item available from ASKINDEX Korea. External dimensions: W180 D230 H197. It is kept in stock at our Enzan Technical Center showroom, so stock checks and price quotations are available immediately. You can also compare other used products from the same manufacturer (Keyence) and the same category (Other).
Mechanical Specifications

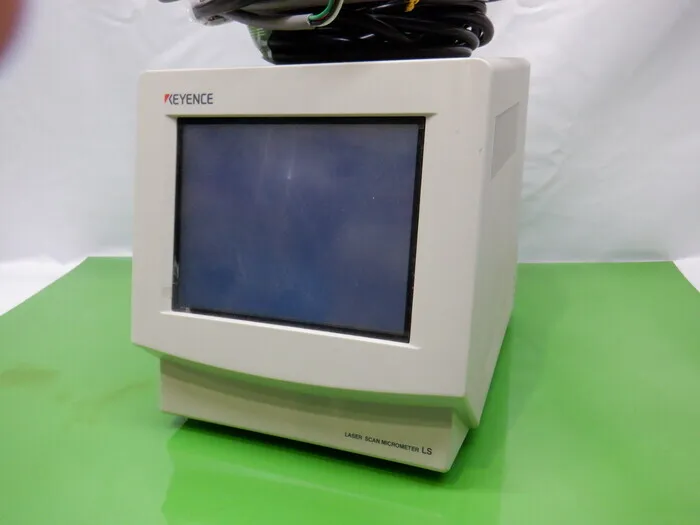

Type: Integrated display
Measurement value display: LCD display, 320 x 240 dots, with backlight
Minimum display unit: 0.05 µm
Display range: -99.99995 to 999.99995
Tolerance discrimination output display: 7-level LCD display
Laser radiation warning light: LCD display (measurement section is green LED)
Analog output: ±10 V output
7-stage comparator output: NPN open collector output, max. 100 mA (40 V)

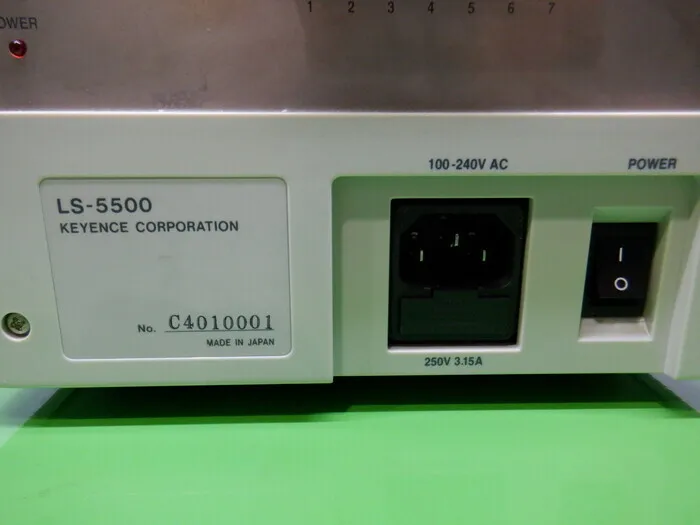

Power supply voltage: AC 85 to 264 V, 50/60 Hz, 85 VA or less
