Photoelectric sensor (ultra-small) - Thanks EX-28A
Product Specifications
Maker Thanks
Model EX-28A
Category Other
External Dimensions W D H
Condition Used
Showroom Information
Exhibition hall Tsuru Technical Center
Price & Inquiry
price Price Inquiry
Inquiry Number N70908
Product Overview
Thanks EX-28A is a used Other item available from ASKINDEX Korea. External dimensions: W D H. It is kept in stock at our Tsuru Technical Center showroom, so stock checks and price quotations are available immediately. You can also compare other used products from the same manufacturer (Thanks) and the same category (Other).
Mechanical Specifications
Built-in amplifier, narrow field of view reflective type (long distance spot light type) [side ON]
Detection distance: 45 to 115 mm
(100x100mm white non-glossy paper, set distance 80mm, spot diameter φ5mm)
Power supply voltage: 12 to 24V DC ±10%, ripple P-P 10% or less
Output: NPN transistor, open collector
・Maximum inflow current: 50mA
- Applied voltage: 30V DC or less (between output and 0V)
Residual voltage: 2V or less (at 50mA inflow current), 1V or less (at 16mA inflow current)
*Quantity in stock: 9 unused items

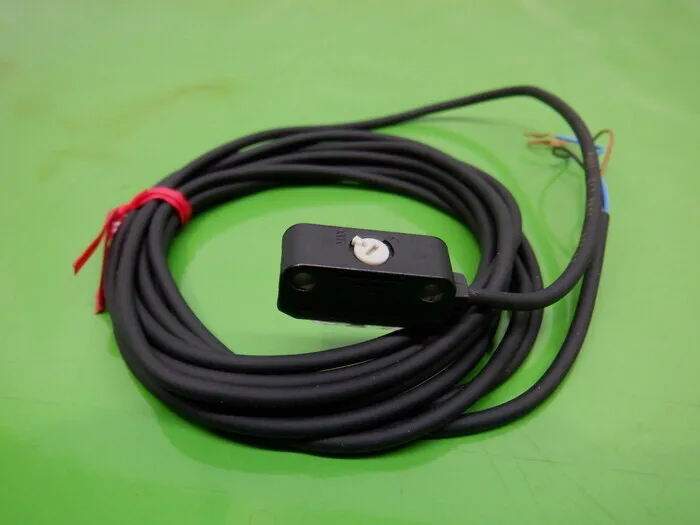

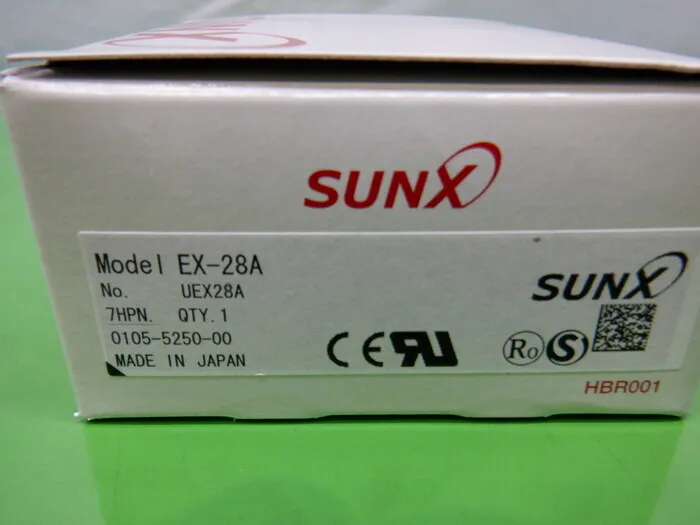

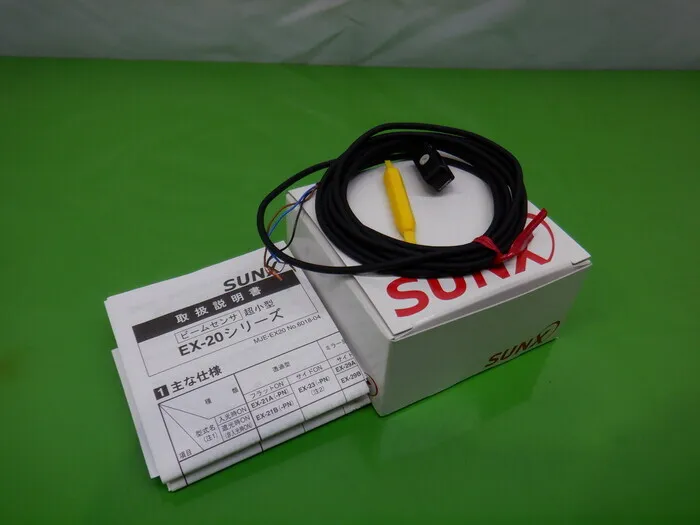

Attachments
※ Click on the image below to zoom in.
