Photoelectric sensor (ultra-small) - Thanks EX-23
Product Specifications
Maker Thanks
Model EX-23
Category Other
External Dimensions W D H
Condition Used
Showroom Information
Exhibition hall Tsuru Technical Center
Price & Inquiry
price Price Inquiry
Inquiry Number N70912
Product Overview
Thanks EX-23 is a used Other item available from ASKINDEX Korea. External dimensions: W D H. It is kept in stock at our Tsuru Technical Center showroom, so stock checks and price quotations are available immediately. You can also compare other used products from the same manufacturer (Thanks) and the same category (Other).
Mechanical Specifications
Built-in amplifier, transparent type [side ON]
Detection distance: 2mm
Power supply voltage: 12 to 24V DC ±10%, ripple P-P 10% or less
Output: NPN transistor, open collector
・Maximum inflow current: 50mA
- Applied voltage: 30V DC or less (between output and 0V)
Residual voltage: 2V or less (at 50mA inflow current), 1V or less (at 16mA inflow current)
*Quantity in stock: 10 unused items
Attachments

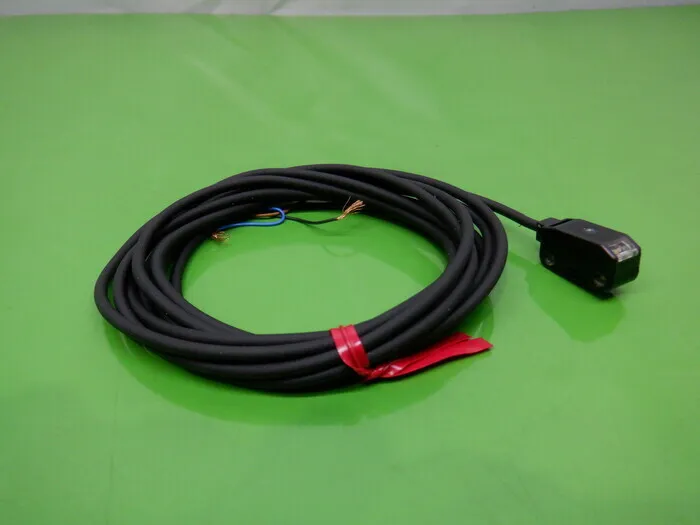

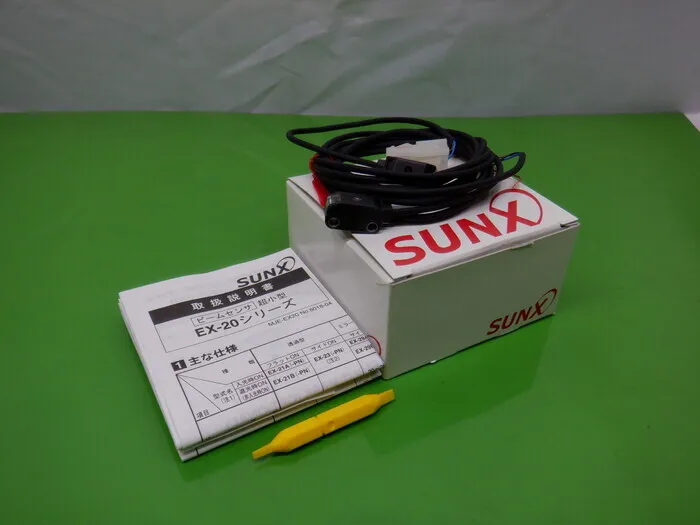

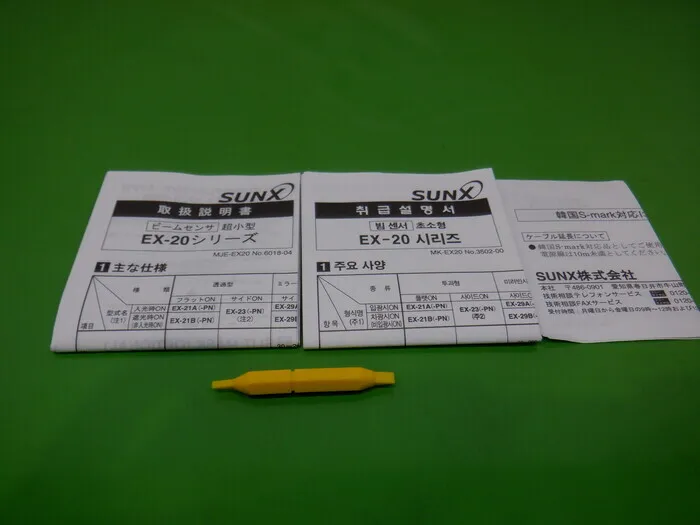

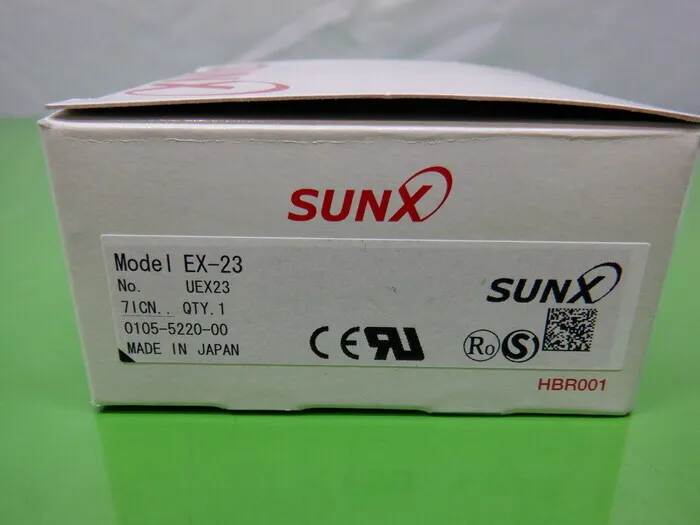

※ Click on the image below to zoom in.
