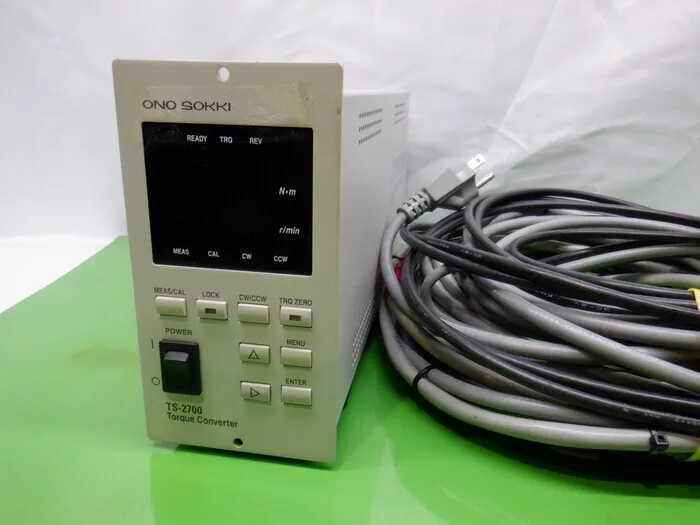

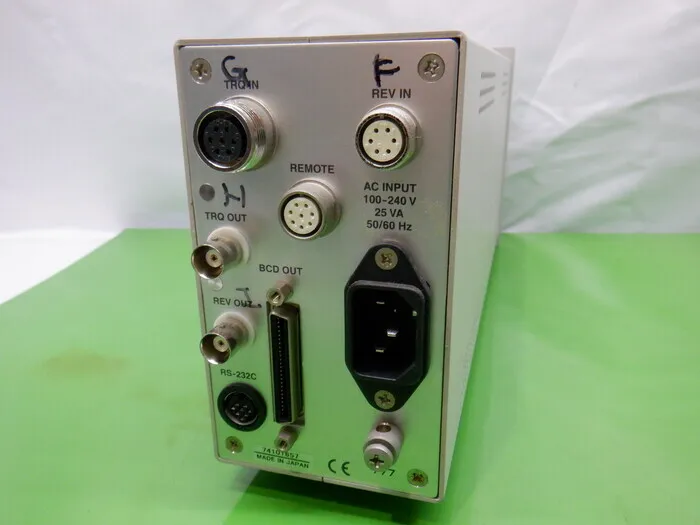

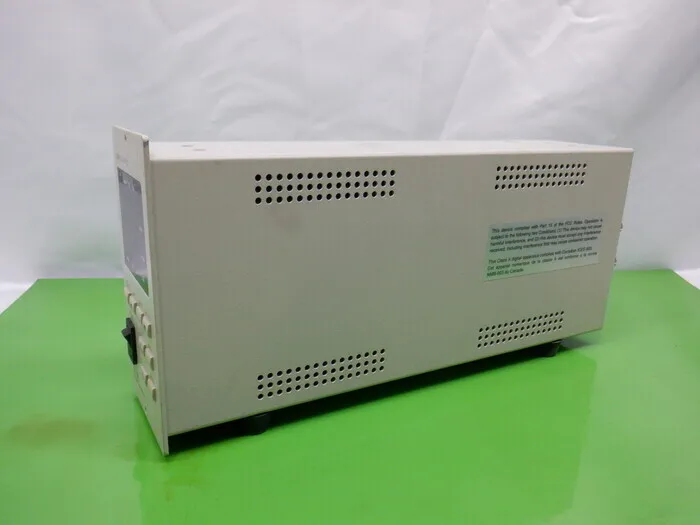

Torque converter - Ono Measuring Instruments TS-2700
Product Specifications
Maker Ono Measuring Instruments
Model TS-2700
Category Measuring Instruments ・ Instruments
Model year 2006
External Dimensions W76 D302 H142
Condition Used
Showroom Information
Exhibition hall Tsuru Technical Center
Price & Inquiry
price Price Inquiry
Inquiry Number N70937
Product Overview
Ono Measuring Instruments TS-2700 is a used Measuring Instruments ・ Instruments item available from ASKINDEX Korea. External dimensions: W76 D302 H142. It is kept in stock at our Tsuru Technical Center showroom, so stock checks and price quotations are available immediately. You can also compare other used products from the same manufacturer (Ono Measuring Instruments) and the same category (Measuring Instruments ・ Instruments).
Mechanical Specifications
Measurement items: Torque, rotation
Power supply voltage: AC 100 to 240 V, 50/60 Hz
Power consumption: 25 VA (AC 100 V) or less
Insulation resistance: 10 MΩ or more at DC 500 V megger
Withstand voltage: AC 1500 V for 1 minute
Operating temperature range: 0 to +40°C
Storage temperature range: −10 to +55°C

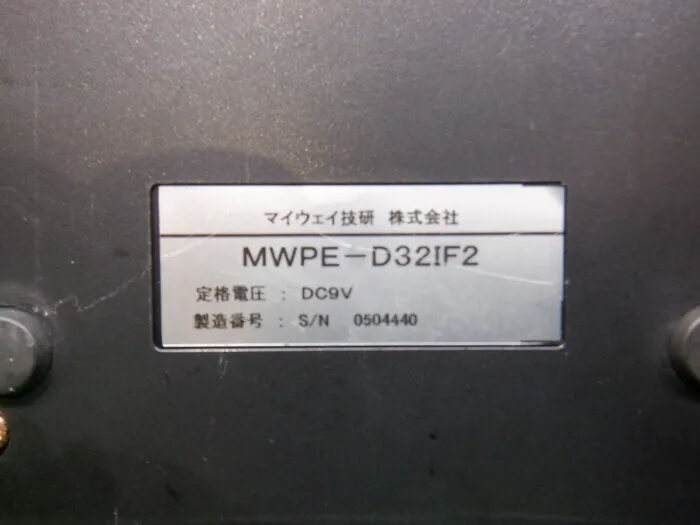

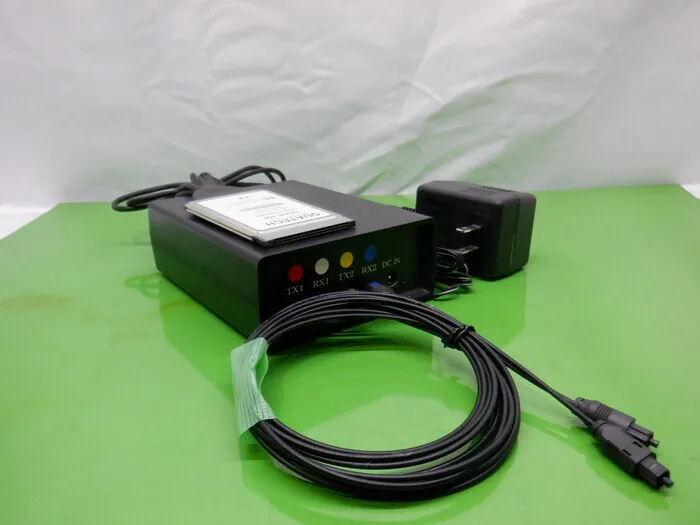

*Includes MyWay Giken MWPE-D32IF2 (DC9V)

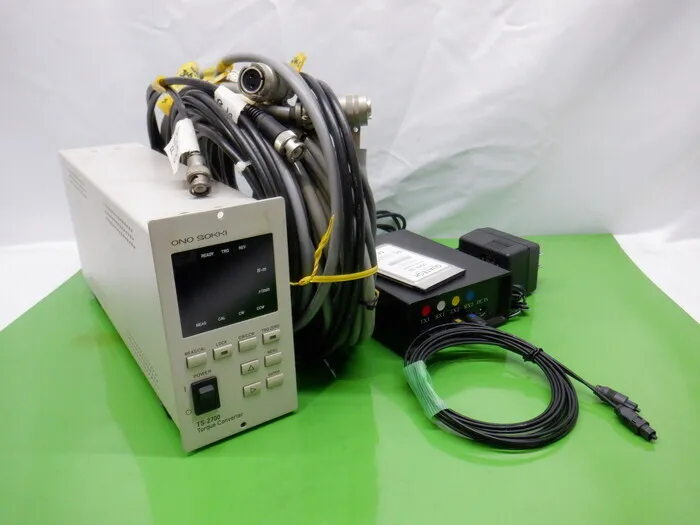

*Set with N70938, N70939, N70940, and N70941
Attachments
※ Click on the image below to zoom in.
