Photoelectric sensor (transmissive type) - Thanks EX-13EA(AD)
Product Specifications
Maker Thanks
Model EX-13EA(AD)
Category Other
External Dimensions W D H
Condition Used
Showroom Information
Exhibition hall Tsuru Technical Center
Price & Inquiry
price Price Inquiry
Inquiry Number N70981
Mechanical Specifications
Built-in amplifier, transparent type [side ON]
EX-13AD (receiver)
Detection distance: 500mm
Minimum detectable object: ø2mm opaque object (completely light-blocking object) (with emitter/receiver set distance of 500mm)
Power supply voltage: 12 to 24V DC ±10%, ripple P-P 10% or less
Output: NPN transistor, open collector
・Maximum inflow current: 50mA
- Applied voltage: 30V DC or less (between output and 0V)
Residual voltage: 2V or less (at 50mA inflow current), 1V or less (at 16mA inflow current)
Attachments
Product Overview
Thanks EX-13EA(AD) is a used Other item handled by ASKINDEX Korea. External dimensions: W D H. This listing has sold, but you can ask about restock or a similar unit, and request a quote. You can also compare other used products from the same manufacturer (Thanks) and the same category (Other).

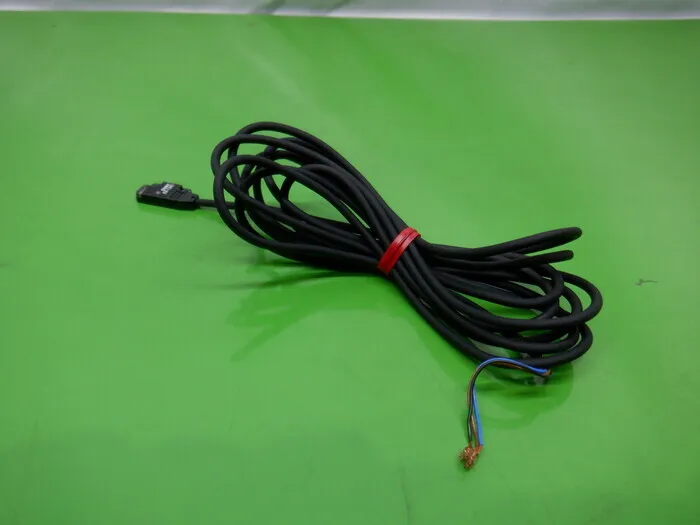

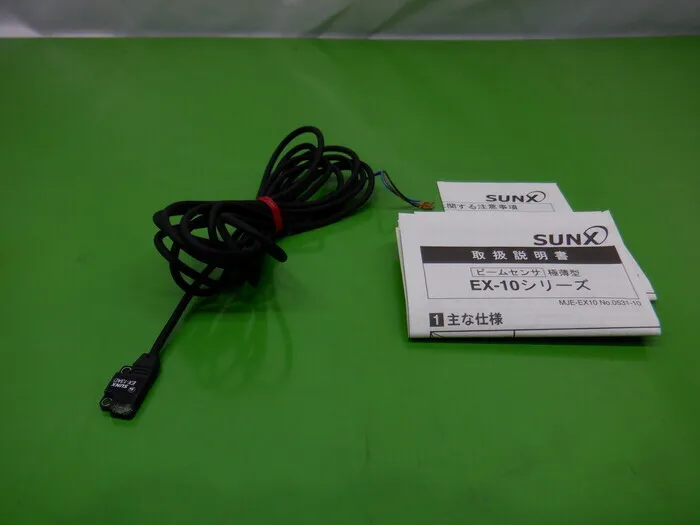

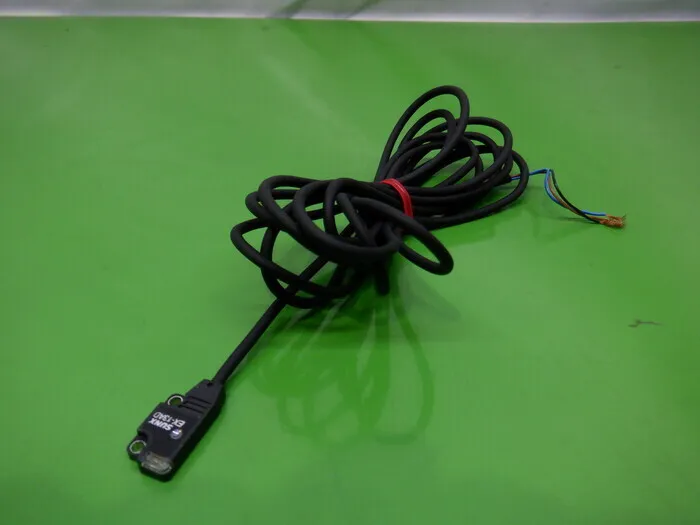

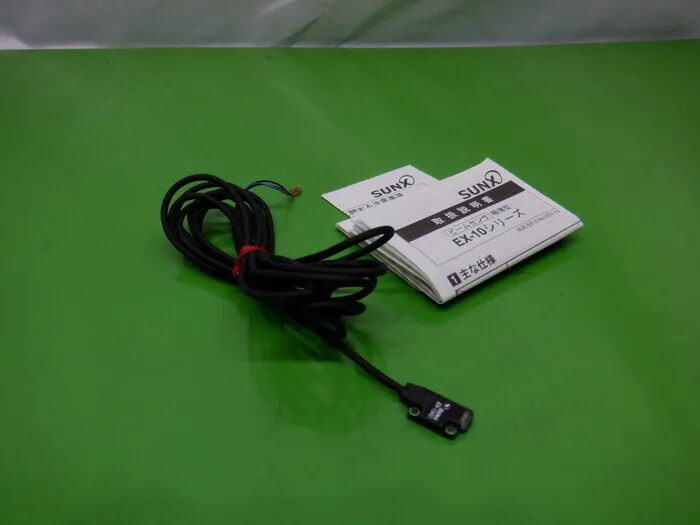

※ Click on the image below to zoom in.
