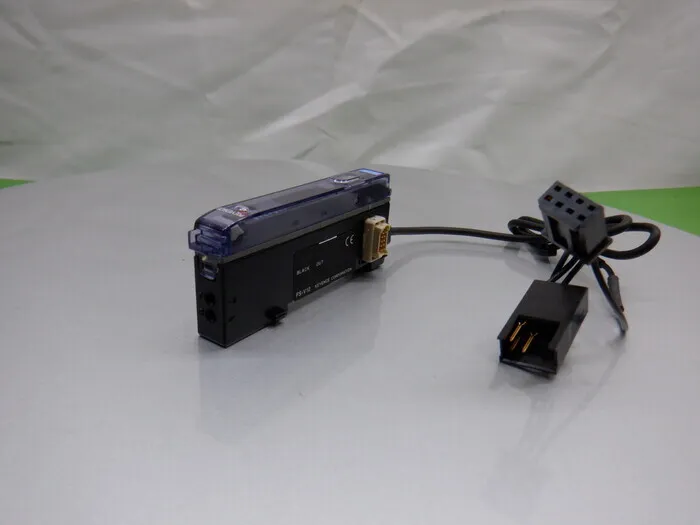

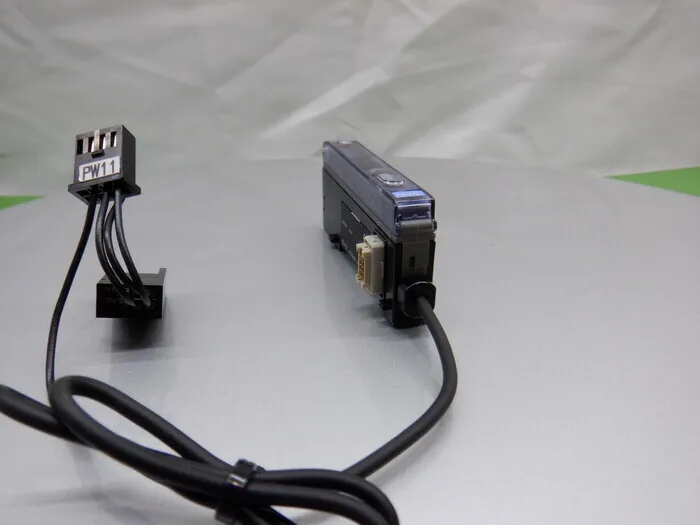

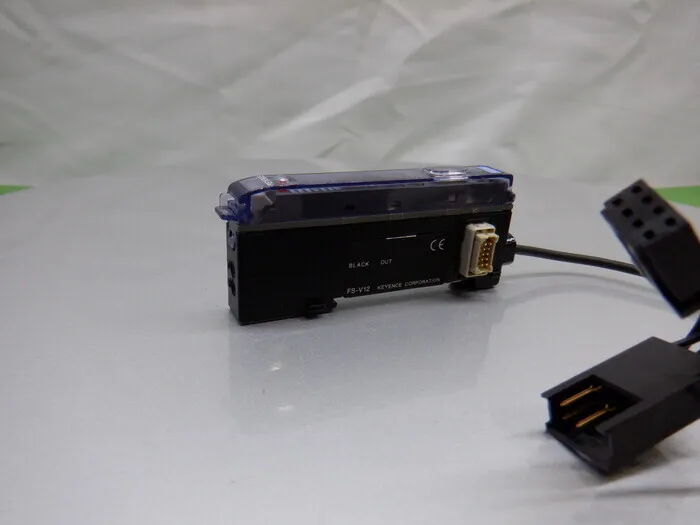

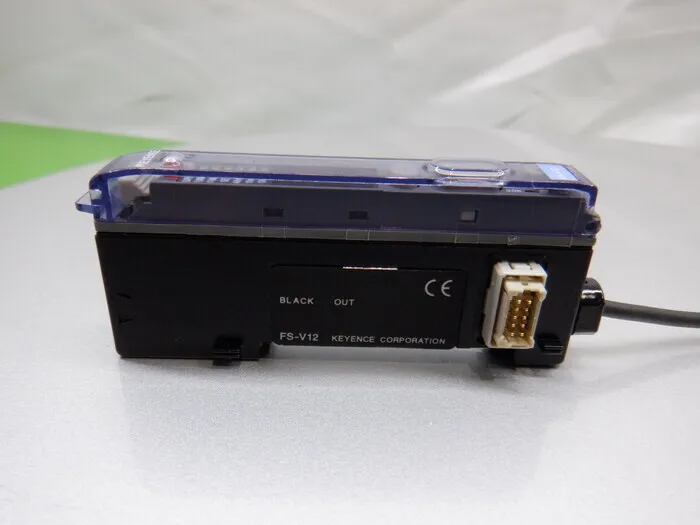

Fiber sensor amplifier (one-line slave unit) - Keyence FS-V12
Product Specifications
Maker Keyence
Model FS-V12
Category Other
Condition Used
Showroom Information
Exhibition hall Tsuru Technical Center
Price & Inquiry
price Price Inquiry
Inquiry Number N90485
Product Overview
Keyence FS-V12 is a used Other item available from ASKINDEX Korea. It is kept in stock at our Tsuru Technical Center showroom, so stock checks and price quotations are available immediately. You can also compare other used products from the same manufacturer (Keyence) and the same category (Other).
Mechanical Specifications
Type: One-line handset
Output type: NPN output
Light source: Red LED
Response time: 250 µs (FINE) / 500 µs (TURBO) / 1 ms (SUPER TURBO)
Control output: NPN open collector, maximum 100mA (40V or less), residual voltage 1V or less
Addition of additional handsets: Up to 16 units possible (17 base units in total)
Number of interference prevention units: FINE: 4 units, TURBO/SUPER: 8 units
Power supply voltage: DC 12 - 24 V ±10%, ripple (PP) 10% or less
Current consumption: 50 mA or less
*Number in stock: 2 pieces
