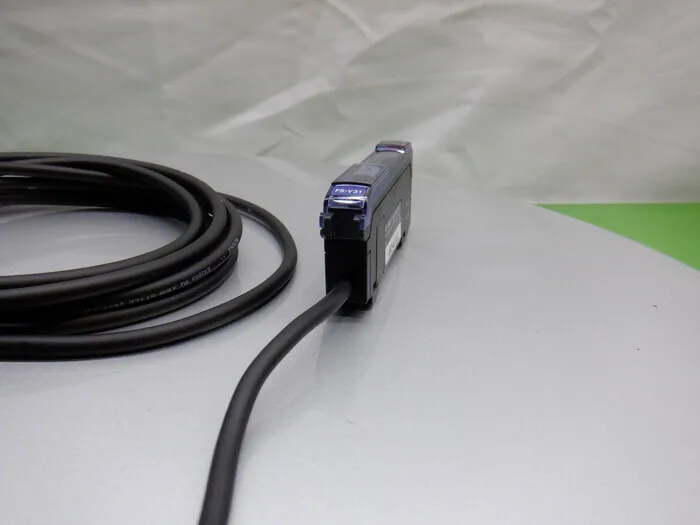

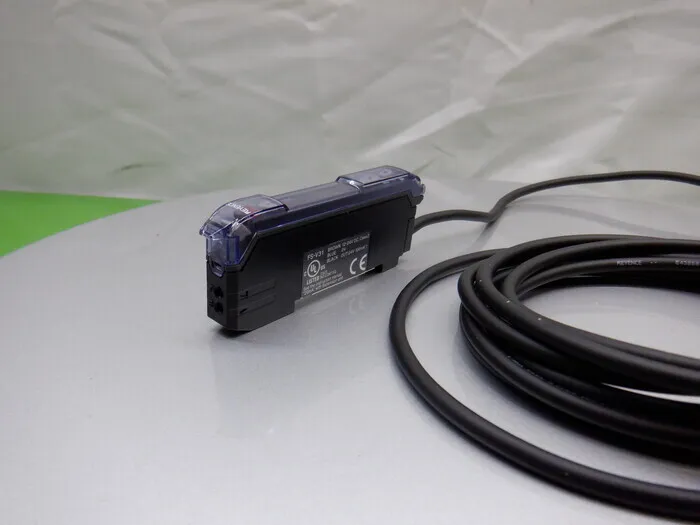

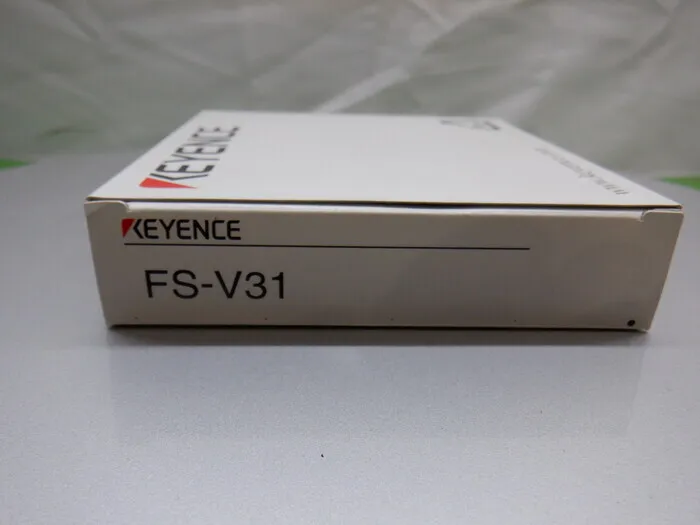

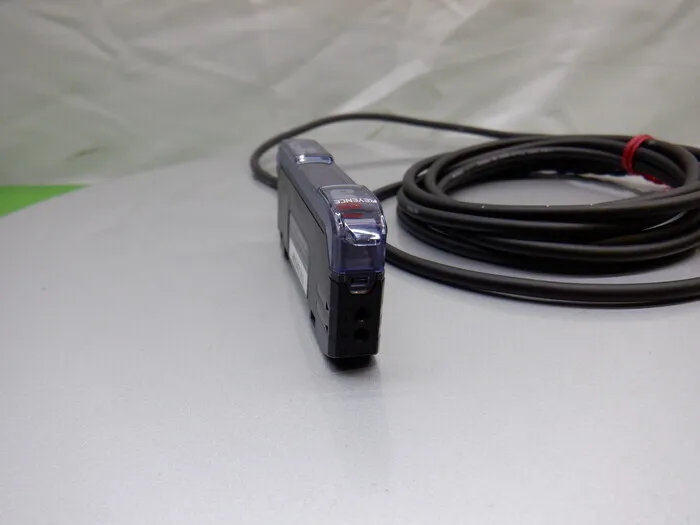

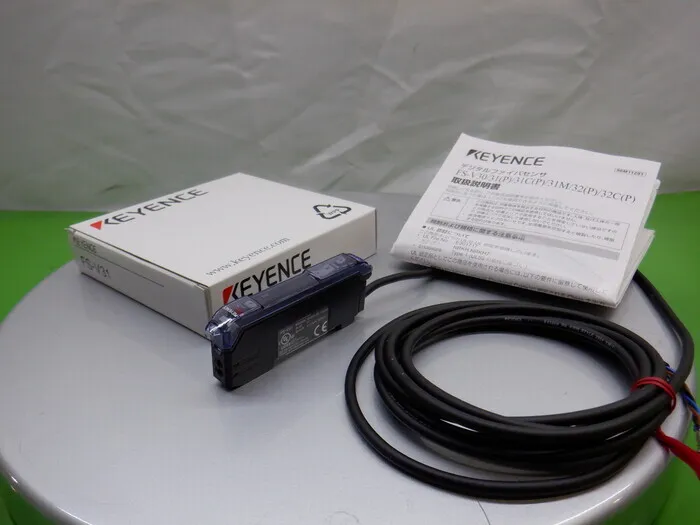

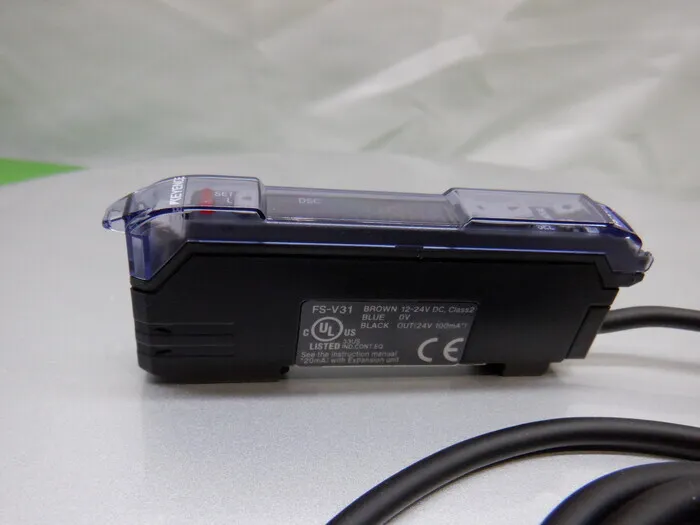

Fiber sensor amplifier (parent unit) - Keyence FS-V31
Product Specifications
Maker Keyence
Model FS-V31
Category Other
Condition Used
Showroom Information
Exhibition hall Tsuru Technical Center
Price & Inquiry
price Price Inquiry
Inquiry Number N90490
Product Overview
Keyence FS-V31 is a used Other item available from ASKINDEX Korea. It is kept in stock at our Tsuru Technical Center showroom, so stock checks and price quotations are available immediately. You can also compare other used products from the same manufacturer (Keyence) and the same category (Other).
Mechanical Specifications
Type: Standard
Output type: NPN output
Base unit/Sub unit: Base unit
Control output: 1 output NPN open collector 24V 100mA or less (when used alone)
20mA or less (when expanded) Residual voltage 1V or less
Light source LED: Red 4-element LED (wavelength 640nm)
Response time: 33 µs (HIGHSPEED) /250 µs (FINE) /500 µs (TURBO) /
1ms (SUPER) /4ms (ULTRA) /16ms (MEGA)
Detection mode: Light intensity discrimination (area detection possible, automatic sensitivity tracking function available)
External input: Input time 2ms (ON)/20ms (OFF) or more
Addition of additional handsets: Up to 16 units possible (total of 17 units connected) However, 2-output type is counted as 2 units
Power supply voltage: DC 12 - 24 V ±10%, ripple (PP) 10% or less
*Number in stock: 2 pieces
Attachments
※ Click on the image below to zoom in.
