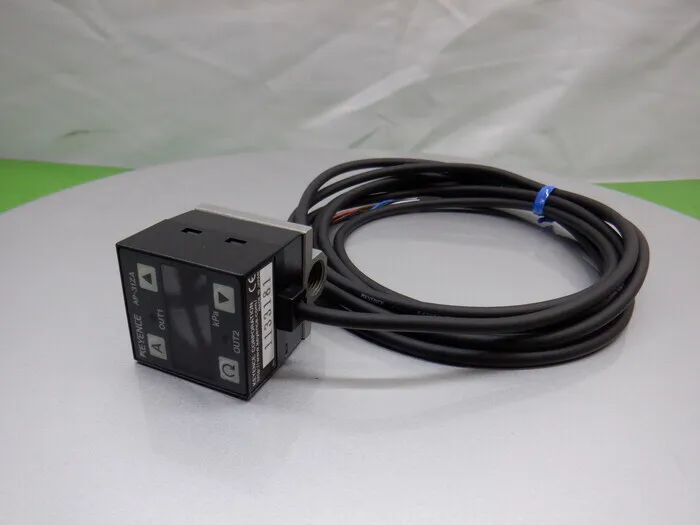

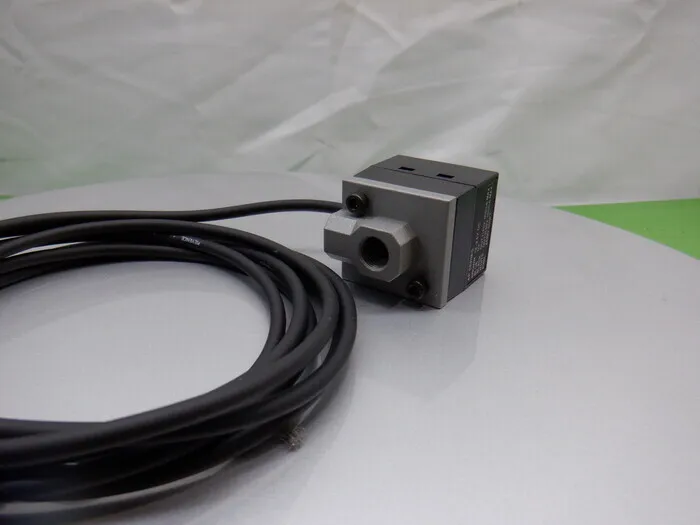

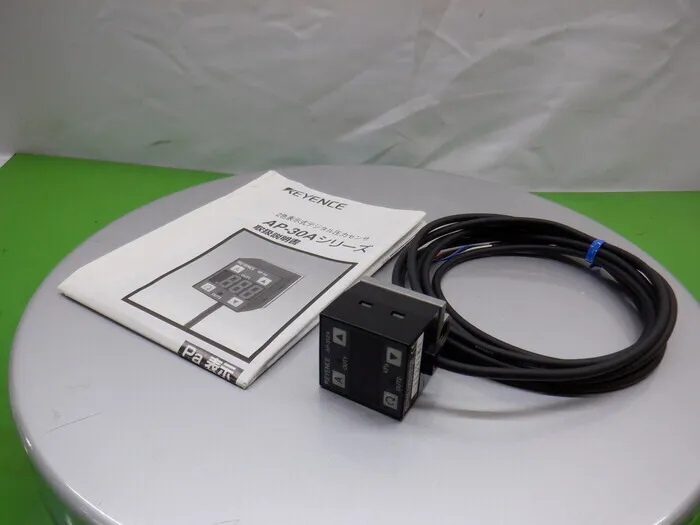

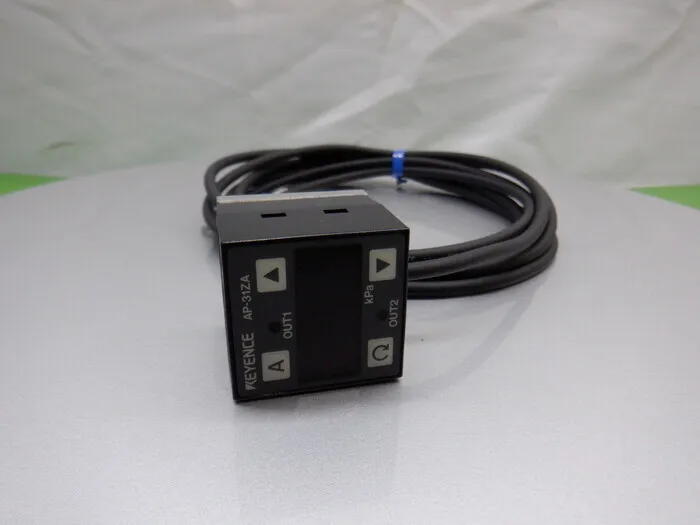

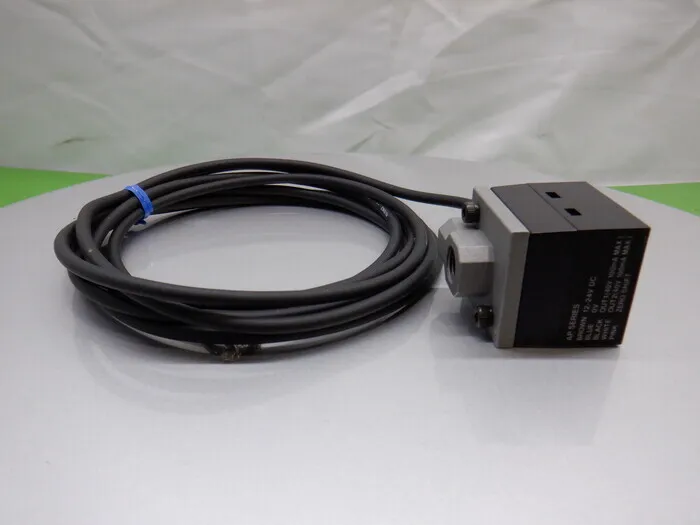

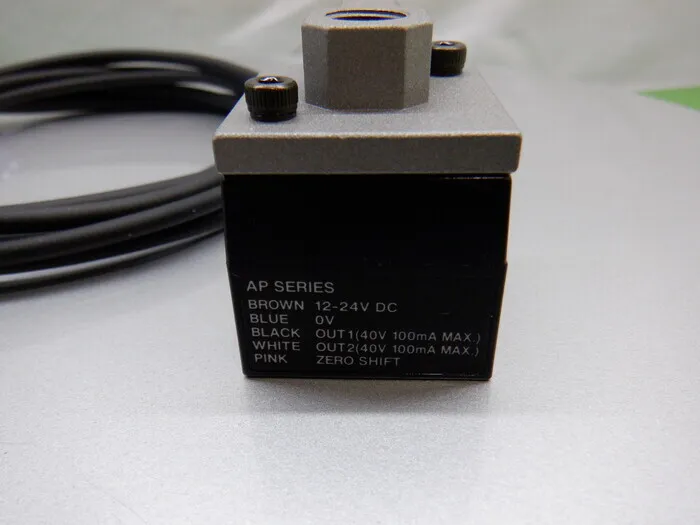

Digital pressure sensor (2-color display) - Keyence AP-31ZA
Product Specifications
Maker Keyence
Model AP-31ZA
Category Other
External Dimensions W D H
Condition Used
Showroom Information
Exhibition hall Tsuru Technical Center
Price & Inquiry
price Price Inquiry
Inquiry Number N90497
Product Overview
Keyence AP-31ZA is a used Other item available from ASKINDEX Korea. External dimensions: W D H. It is kept in stock at our Tsuru Technical Center showroom, so stock checks and price quotations are available immediately. You can also compare other used products from the same manufacturer (Keyence) and the same category (Other).
Mechanical Specifications
Type: Negative pressure/zero shift type NPN
Rated pressure range: 0 to -101.3 kPa
Suitable fluids: air and non-corrosive gases
Pressure type: Gauge pressure
Display method: 3.5 digits, 2-color, 7-segment LED display (character height 11 mm),
Display cycle: 5 times/second
Display resolution: 0.1 kPa
Display range/detection pressure range: -15 to +110% of FS
Response time (anti-chattering function): 2.5/5/100/500 ms selectable
Control output: NPN open collector, maximum 100 mA (40 V or less),
Residual voltage 1 V or less, NO/NC switchable
Power supply voltage: DC 12 - 24 V ±10% or less, ripple (PP) 10% or less/
90 mA (12 V) or less, 50 mA (24 V) or less
Current consumption: 90 mA (12 V) or less, 50 mA (24 V) or less
Attachments
※ Click on the image below to zoom in.
