Fiber sensor amplifier (slave unit) - Keyence FS-V32
Product Specifications
Maker Keyence
Model FS-V32
Category Other
Condition Used
Showroom Information
Exhibition hall Tsuru Technical Center
Price & Inquiry
price Price Inquiry
Inquiry Number N90502
Mechanical Specifications
Type: Standard
Output type: NPN output
Base unit/handset: Handset
Control output: 1 output NPN open collector 24V 100mA or less (when used alone)
20mA or less (when expanded) Residual voltage 1V or less
Light source LED: Red 4-element LED (wavelength 640nm)
Response time: 33 µs (HIGHSPEED) /250 µs (FINE) /500 µs (TURBO) /
1ms (SUPER) /4ms (ULTRA) /16ms (MEGA
Detection mode: Light intensity discrimination (area detection possible, automatic sensitivity tracking function available)
External input: Input time 2ms (ON)/20ms (OFF) or more
Addition of additional handsets: Up to 16 units possible (total of 17 units connected) However, 2-output type is counted as 2 units
Power supply voltage: DC 12 - 24 V ±10%, ripple (PP) 10% or less
Attachments
Product Overview
Keyence FS-V32 is a used Other item handled by ASKINDEX Korea. This listing has sold, but you can ask about restock or a similar unit, and request a quote. You can also compare other used products from the same manufacturer (Keyence) and the same category (Other).

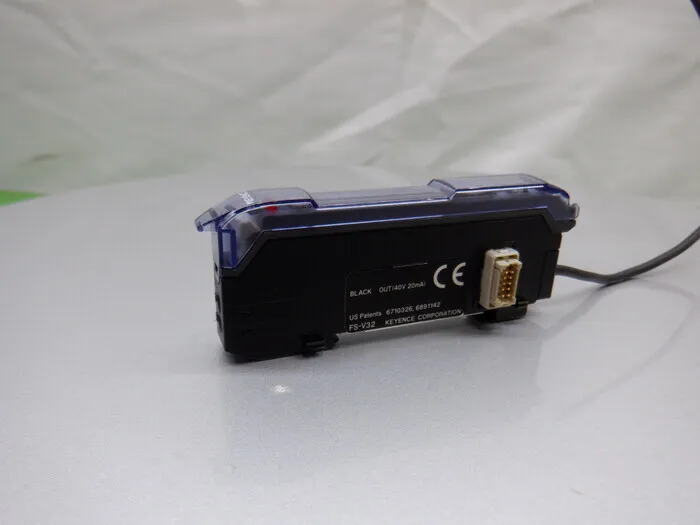

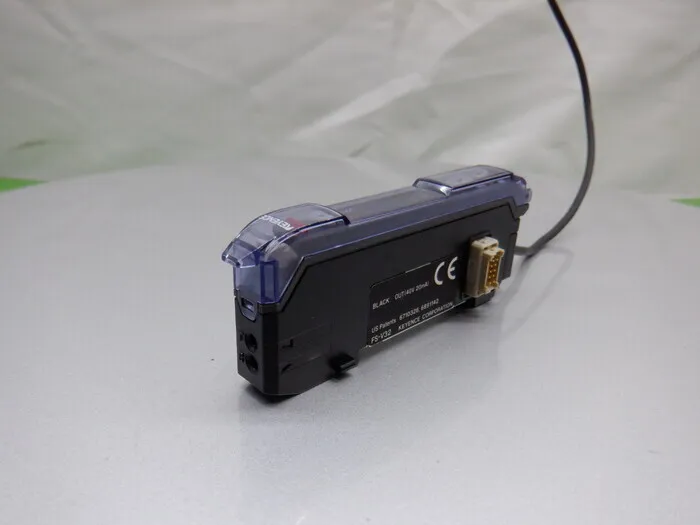

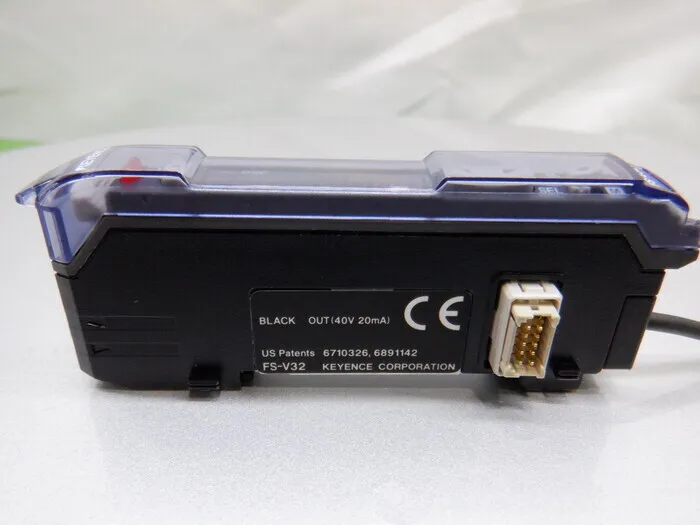

※ Click on the image below to zoom in.
