Mini Power Relay (24VDC) - Omron MY4N-D2(24VDC)
Product Specifications
Maker Omron
Model MY4N-D2(24VDC)
Category Parts Related
External Dimensions W29 D71 H65
Condition Used
Showroom Information
Exhibition hall Tsuru Technical Center
Price & Inquiry
price Price Inquiry
Inquiry Number NA0625
Product Overview
Omron MY4N-D2(24VDC) is a used Parts Related item available from ASKINDEX Korea. External dimensions: W29 D71 H65. It is kept in stock at our Tsuru Technical Center showroom, so stock checks and price quotations are available immediately. You can also compare other used products from the same manufacturer (Omron) and the same category (Parts Related).
model my4n-d2 (24VDC)
year
-> Machine specification Single stability, single, plug -in terminal, operation display LED
Coil surge absorption: Diode
Coil rating: DC24V 36.3MA
Contact configuration: 4C
Contact rated load: AC220V 3A (resistance load)
AC220V 0.8a (Induced load (cosφ = 0.4))
DC24V 3A (resistance load)
DC24V 1.5A (induced load (L/R = 7ms))
* With socket
Attachment

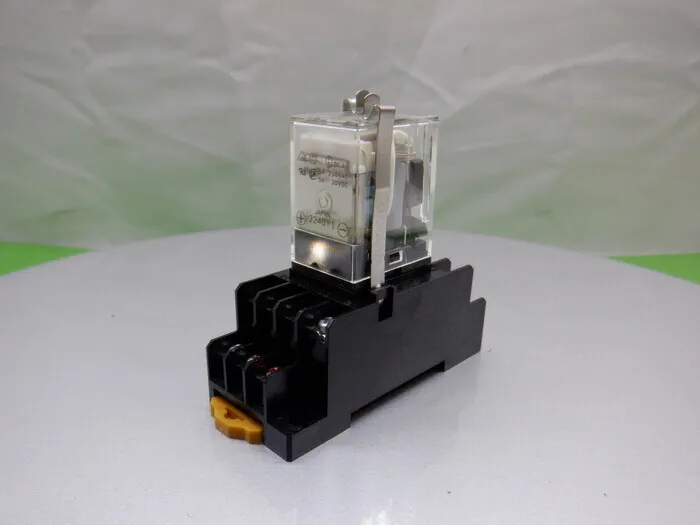

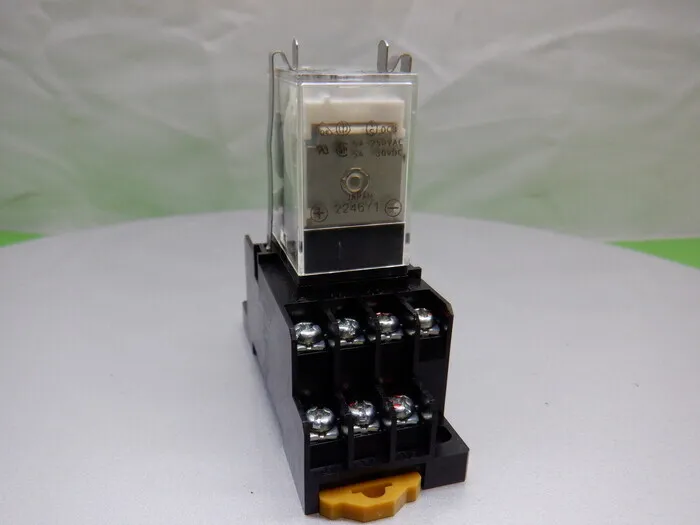

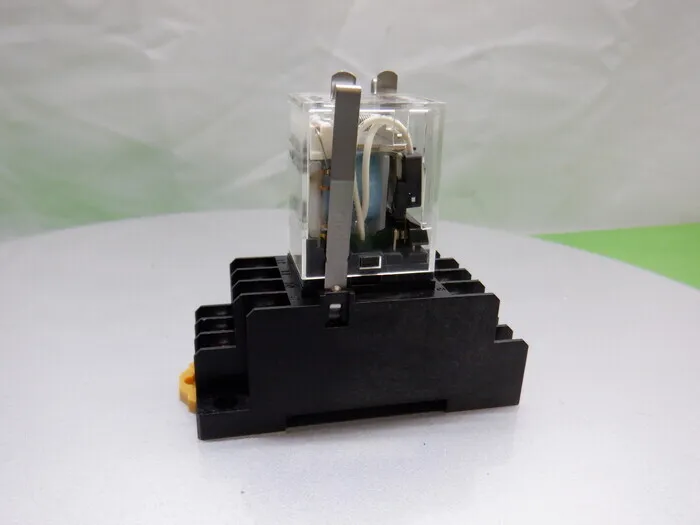

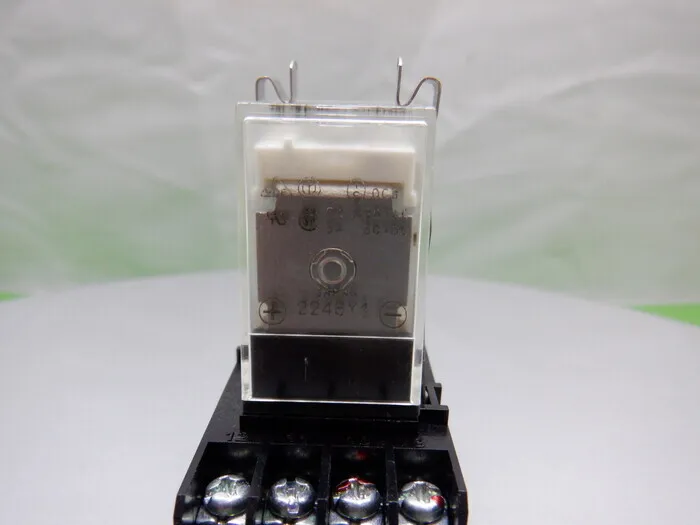

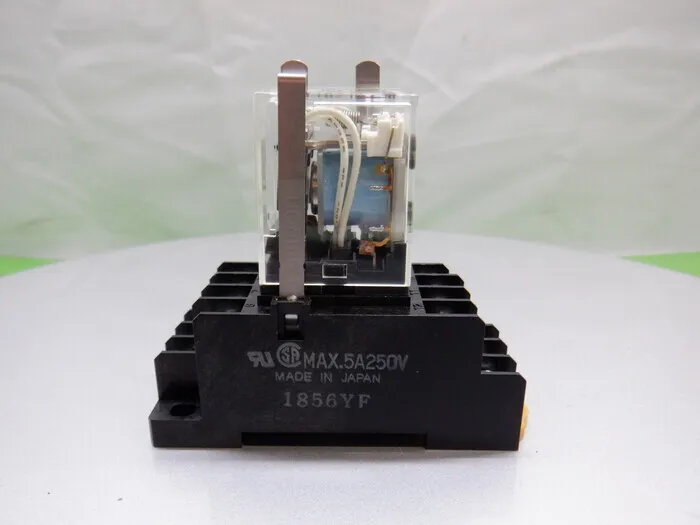

※ Click on the image below to zoom in.
