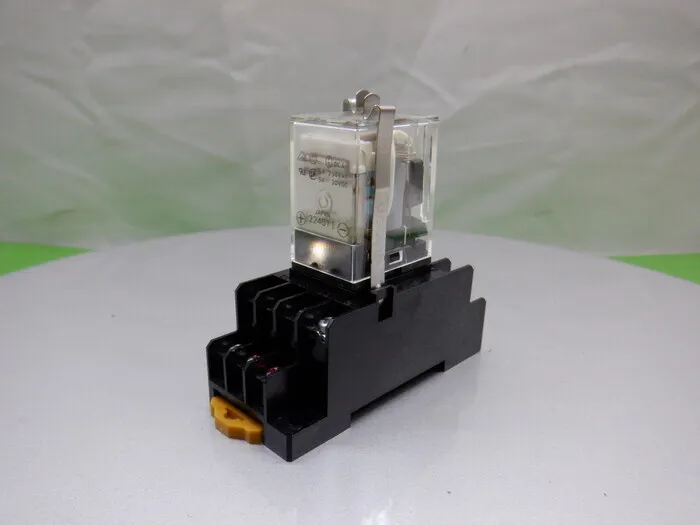

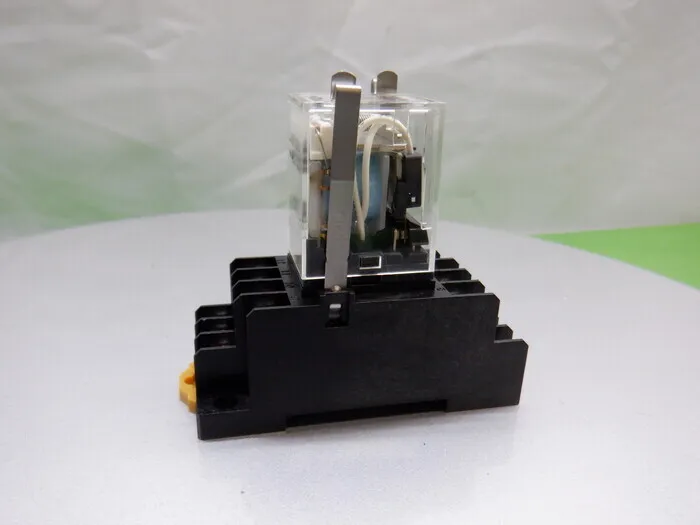

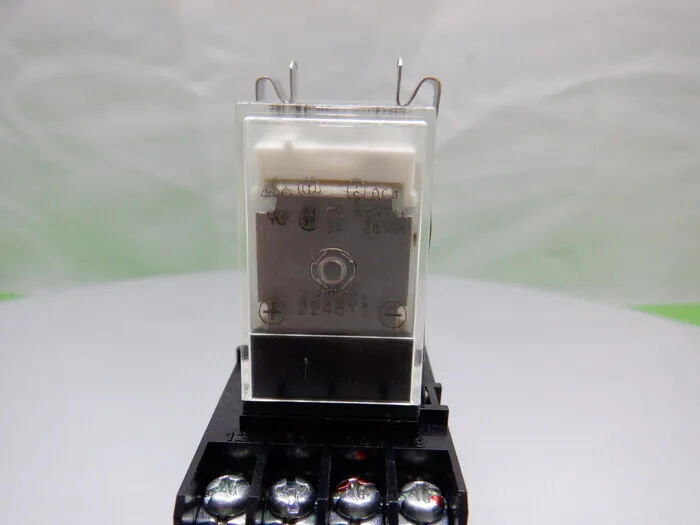

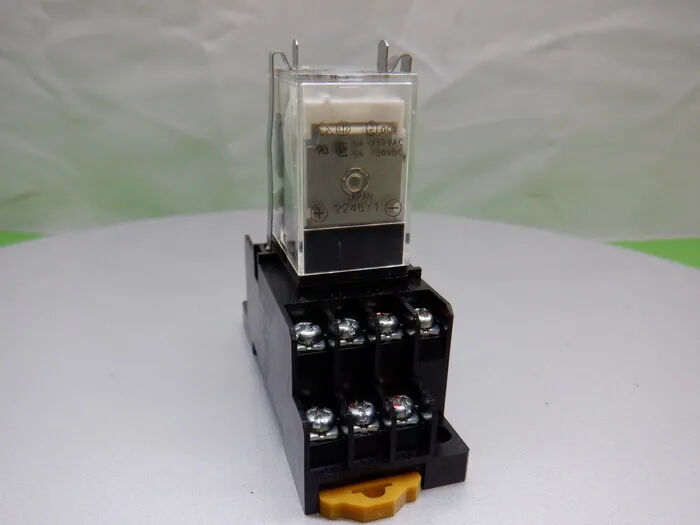

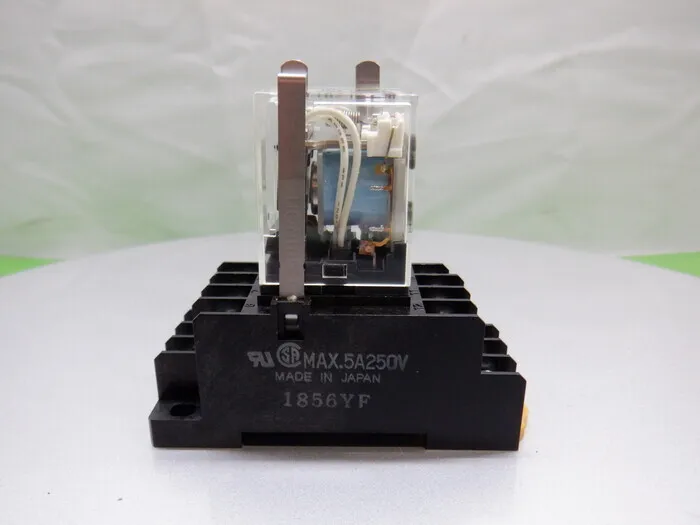

Mini Power Relay (24VDC) - Omron MY4N-D2(24VDC)
Product Specifications
Maker Omron
Model MY4N-D2(24VDC)
Category Parts Related
External Dimensions W29 D71 H65
Condition Used
Showroom Information
Exhibition hall Tsuru Technical Center
Price & Inquiry
price Price Inquiry
Inquiry Number NA0627
model my4n-d2 (24VDC)
year
-> Machine specification Single stability, single, plug -in terminal, operation display LED
Coil surge absorption: Diode
Coil rating: DC24V 36.3MA
Contact configuration: 4C
Contact rated load: AC220V 3A (resistance load)
AC220V 0.8a (Induced load (cosφ = 0.4))
DC24V 3A (resistance load)
DC24V 1.5A (induced load (L/R = 7ms))
* With socket
Attachment
Product Overview
Omron MY4N-D2(24VDC) is a used Parts Related item handled by ASKINDEX Korea. External dimensions: W29 D71 H65. This listing has sold, but you can ask about restock or a similar unit, and request a quote. You can also compare other used products from the same manufacturer (Omron) and the same category (Parts Related).
※ Click on the image below to zoom in.
