Power Relay (24VDC) - Omron LY2N-D2(24VDC)
Product Specifications
Maker Omron
Model LY2N-D2(24VDC)
Category Parts Related
External Dimensions W28 D74 H65
Condition Used
Showroom Information
Exhibition hall Tsuru Technical Center
Price & Inquiry
price Price Inquiry
Inquiry Number NA0628
Product Overview
Omron LY2N-D2(24VDC) is a used Parts Related item available from ASKINDEX Korea. External dimensions: W28 D74 H65. It is kept in stock at our Tsuru Technical Center showroom, so stock checks and price quotations are available immediately. You can also compare other used products from the same manufacturer (Omron) and the same category (Parts Related).
Model LY2N-D2 (24VDC)
year
-> Machine specification Single stability, single, plug -in terminal, operation display LED
Coil rating: DC24V 36.9MA
Contact configuration: 2C
Contact rated load: AC110V 10A (resistance load)
AC110V 7.5A (guidance load (cosφ = 0.4))
DC24V 10A (resistance load)
DC24V 5a (induced load (L/R = 7ms))
* With socket
Attachment

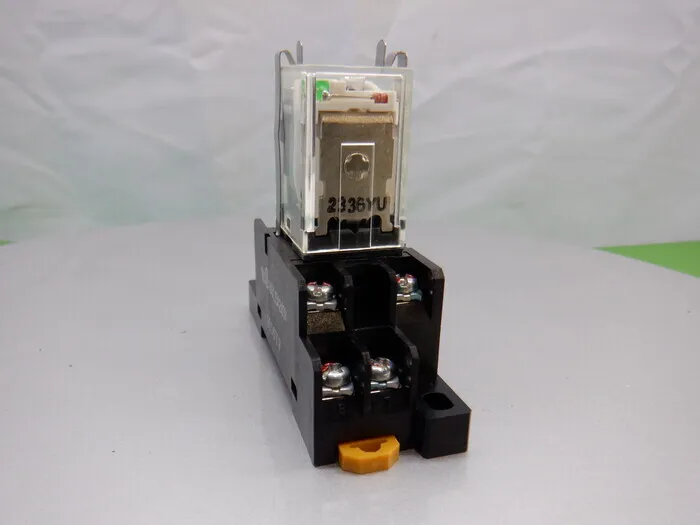

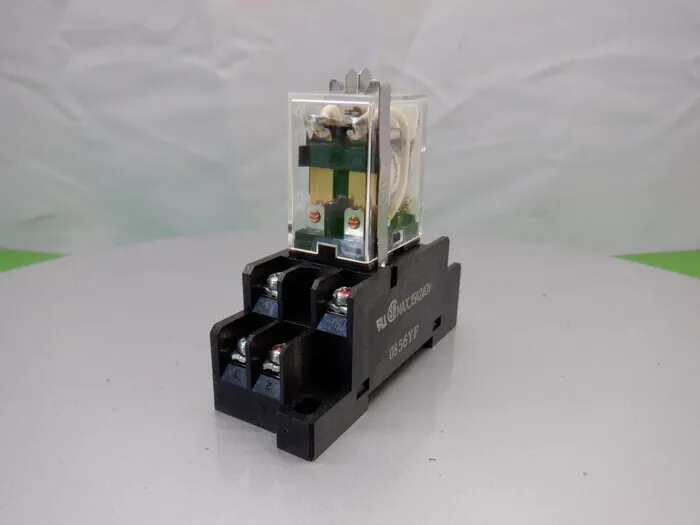

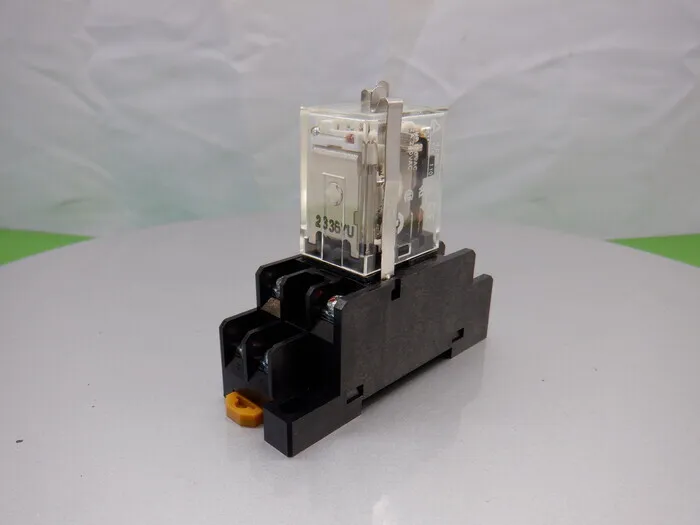

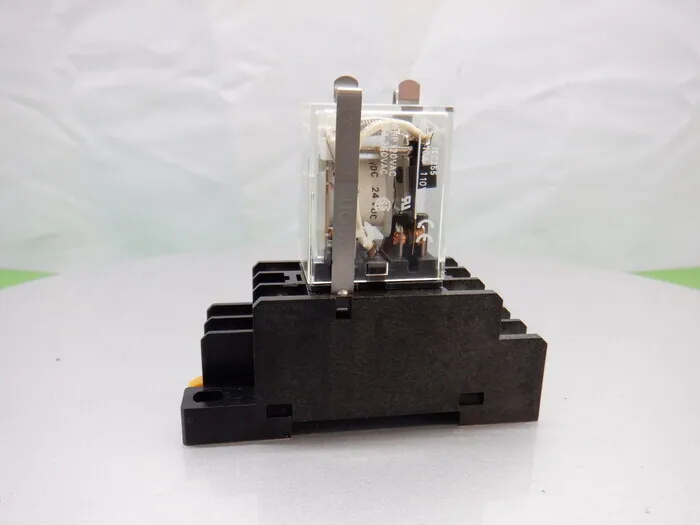

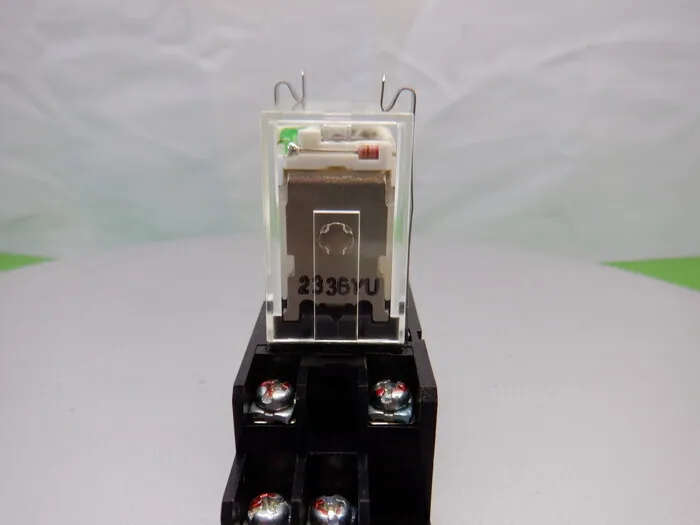

※ Click on the image below to zoom in.
