Electromagnet valve (pilot 3 port) - SMSI SYJ714R-5LOZ-02
Product Specifications
Maker SMSI
Model SYJ714R-5LOZ-02
Category Parts Related
External Dimensions W34 D77 H58
Condition Used
Showroom Information
Exhibition hall Tsuru Technical Center
Price & Inquiry
price Price Inquiry
Inquiry Number NA0656
Product Overview
SMSI SYJ714R-5LOZ-02 is a used Parts Related item available from ASKINDEX Korea. External dimensions: W34 D77 H58. It is kept in stock at our Tsuru Technical Center showroom, so stock checks and price quotations are available immediately. You can also compare other used products from the same manufacturer (SMSI) and the same category (Parts Related).
model SYJ714R-5LOZ-02
year
-> Machine specification Port number: 3 port valve
Rated voltage: DC24V
Screw type: RC
Pipe connection diameter: RC1/4
Switching method: 2nd position normal crosse
Pilot method: internal pilot
Use fluid: air
Refueling: Not required
Internal pilot Use pressure range: 0.15-0.7MPA
Attachment

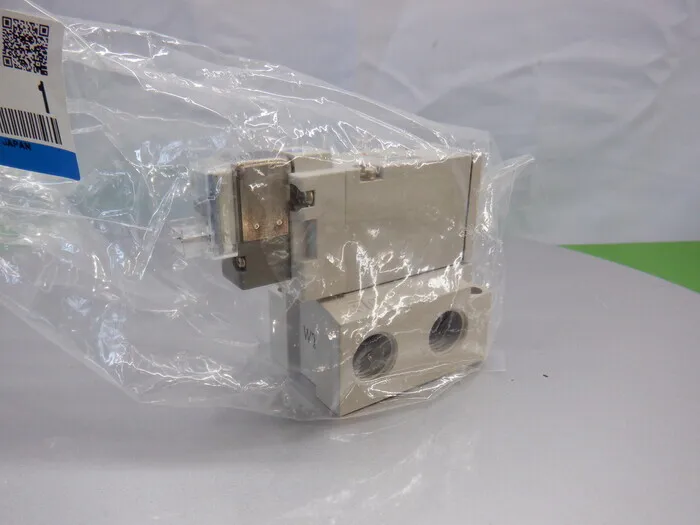

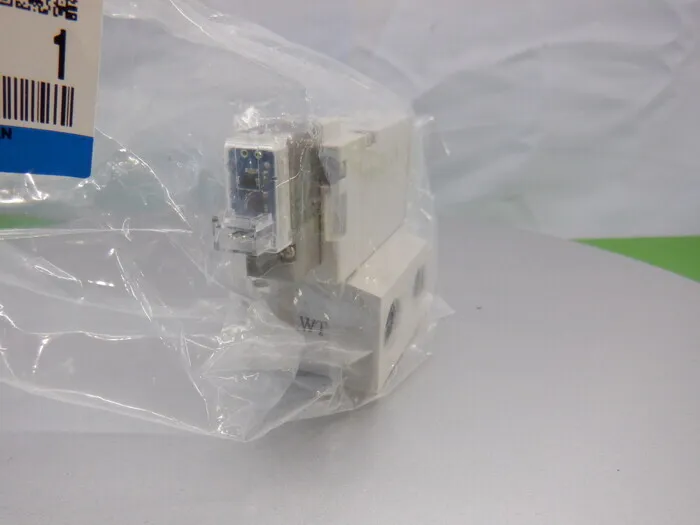

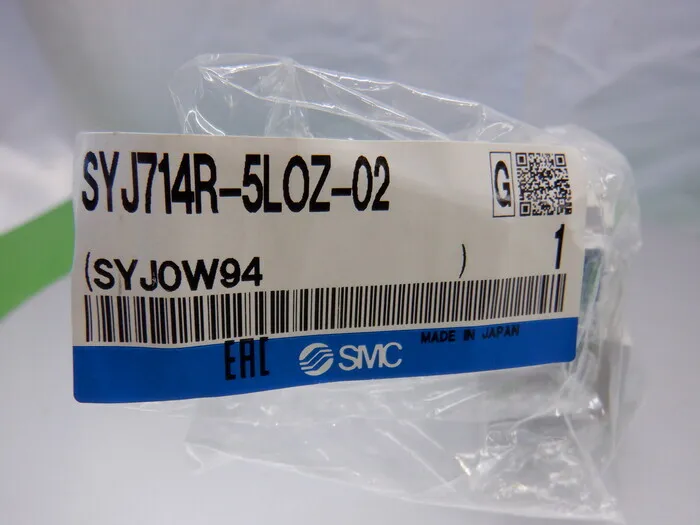

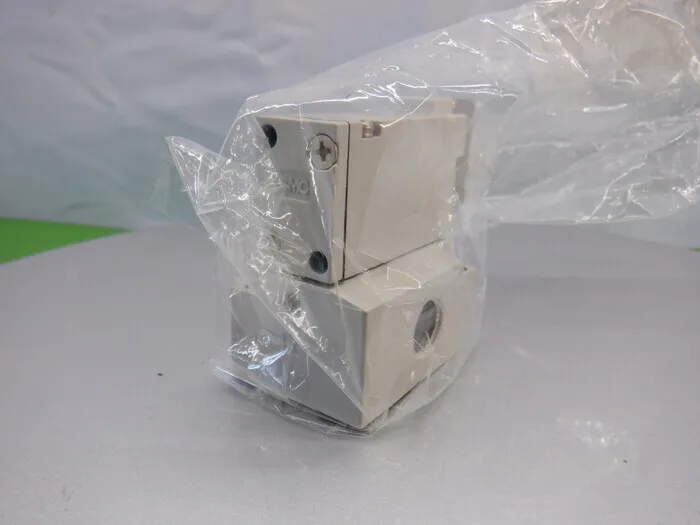

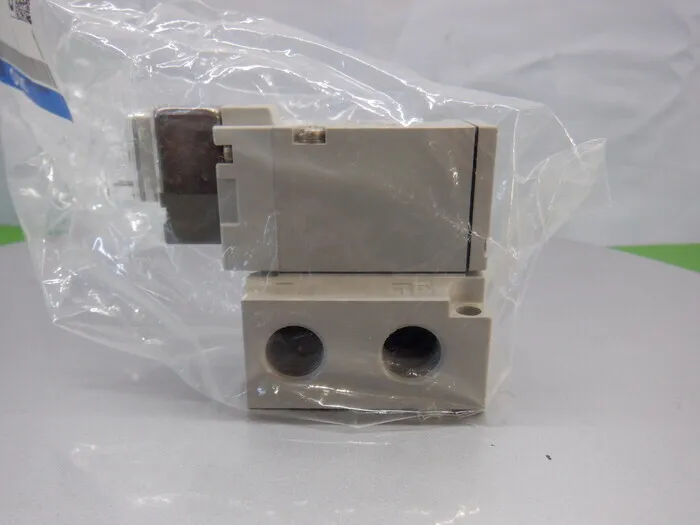

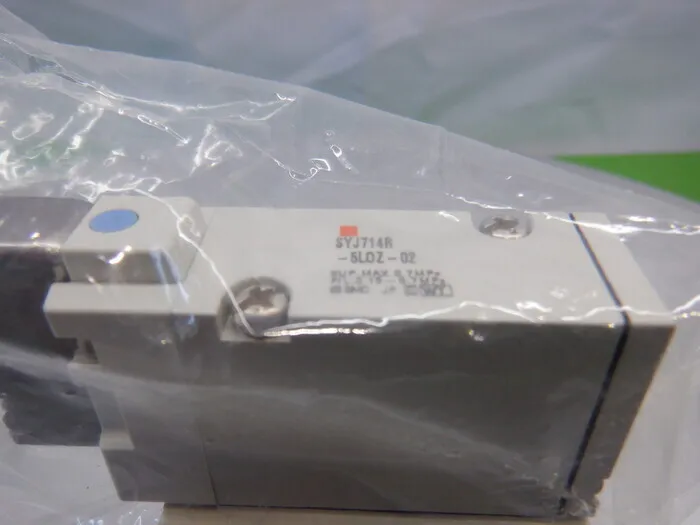

※ Click on the image below to zoom in.
