Turbo molecular pump - Edwards STP-iXA3306C
Product Specifications
Maker Edwards
Model STP-iXA3306C
Category Pump
External Dimensions W430 D400 H580
Condition Used
Showroom Information
Exhibition hall Tsuru Technical Center
Price & Inquiry
price Price Inquiry
Inquiry Number NC0689
Product Overview
Edwards STP-iXA3306C is a used Pump item available from ASKINDEX Korea. External dimensions: W430 D400 H580. It is kept in stock at our Tsuru Technical Center showroom, so stock checks and price quotations are available immediately. You can also compare other used products from the same manufacturer (Edwards) and the same category (Pump).
model STP-IXA3306C
year
-> Machine specification Power supply voltage 200-240V
Exhaust speed N2 3200 L/S
Exhaust speed AR 2800 L/S
Achievement pressure 10-7 Pa (10-9TORR)
Available back pressure 266Pa (2TORR)
Maximum gas flow rate N2 *(water cooling only) 4000sccm
Maximum gas flow rate AR * (water cooling only) 2100sccm
Rated speed 27700 rotation
Attachment

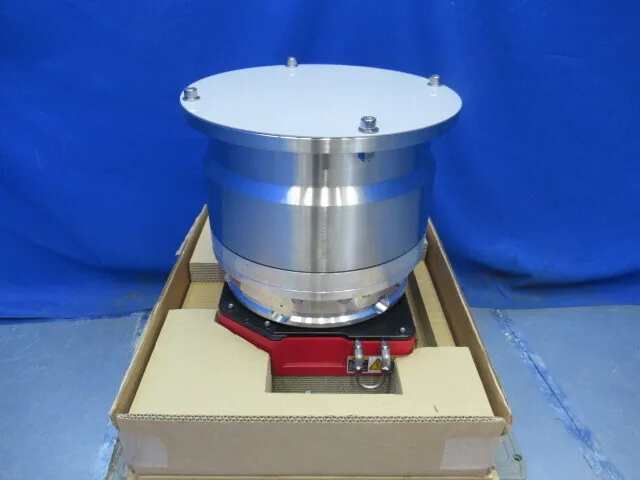

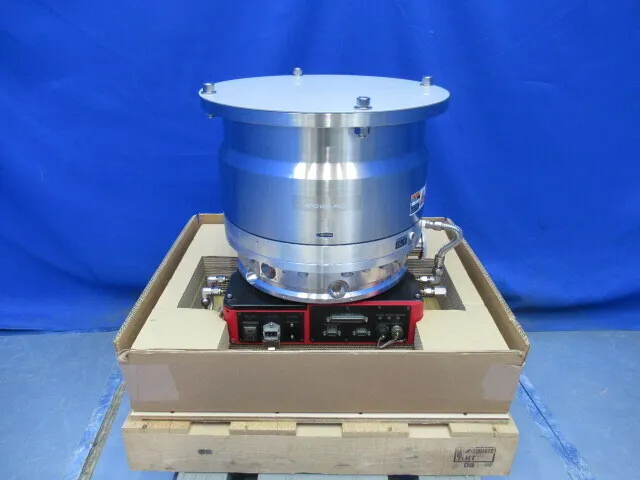

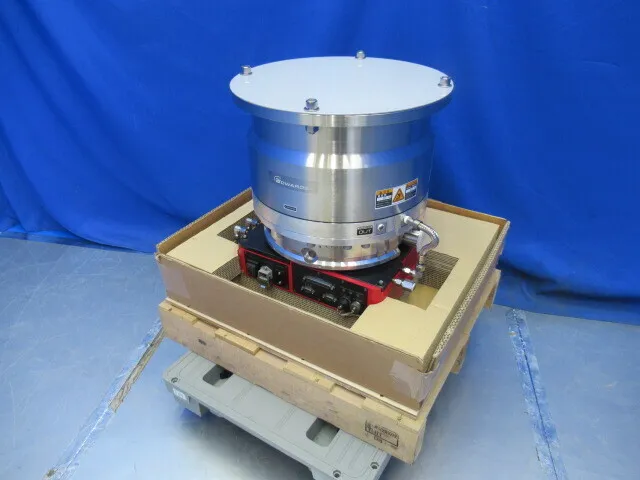

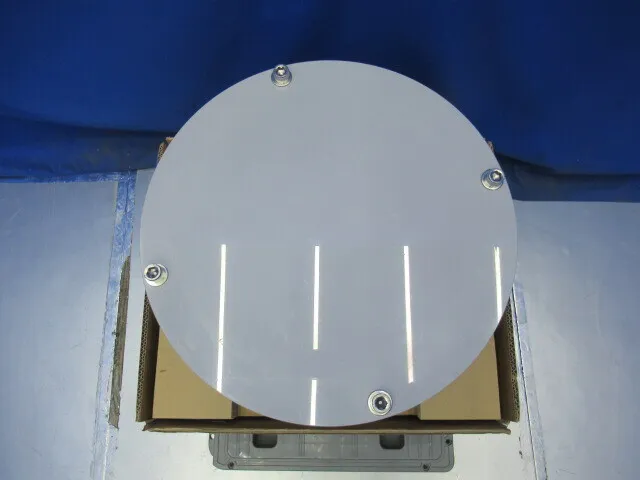

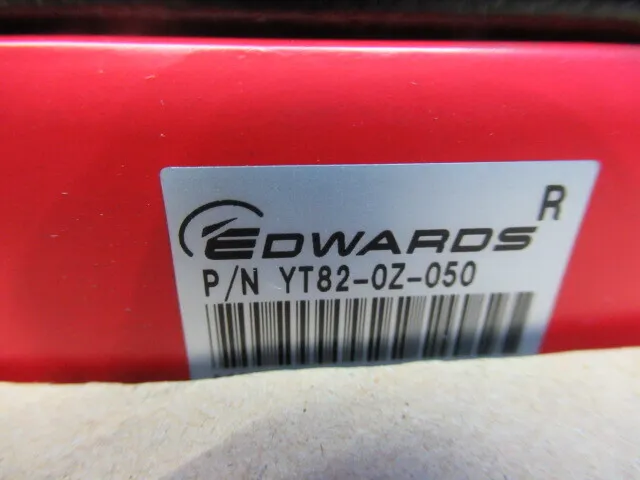

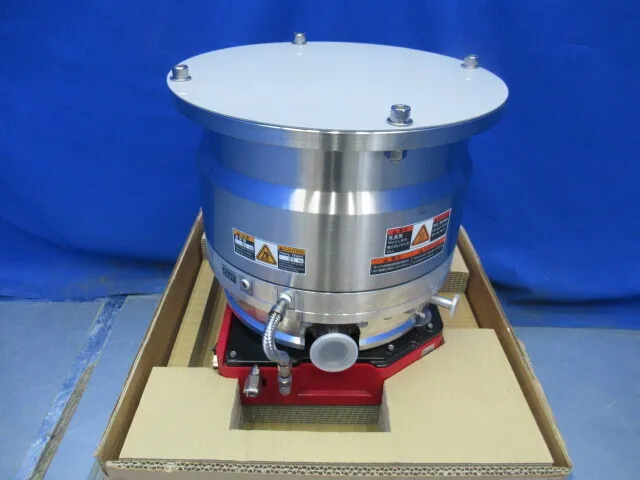

※ Click on the image below to zoom in.
