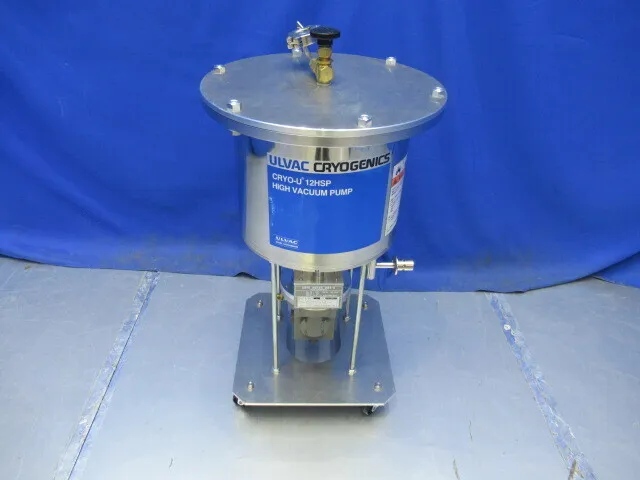

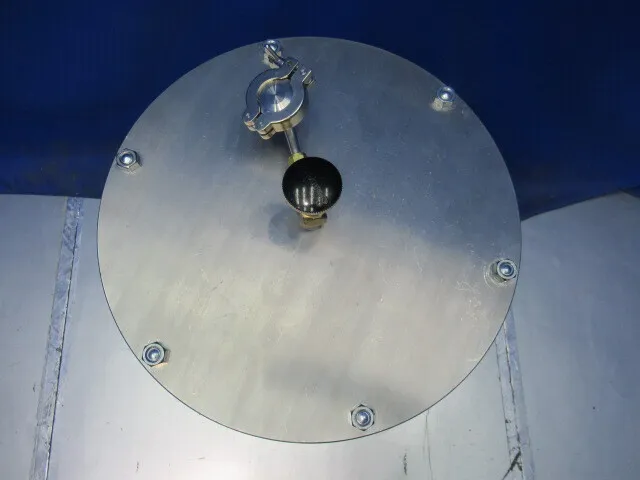

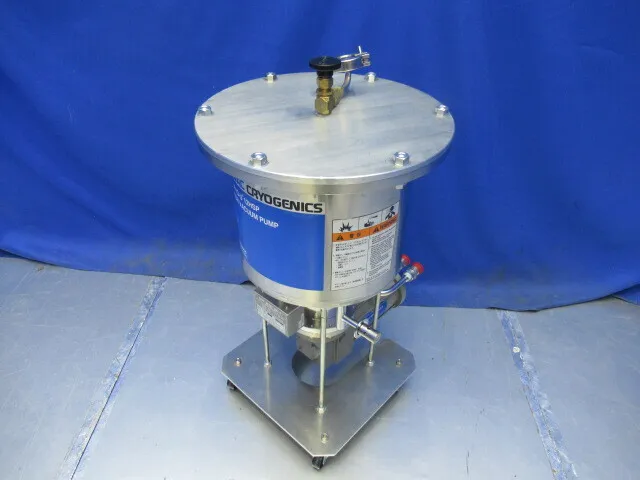

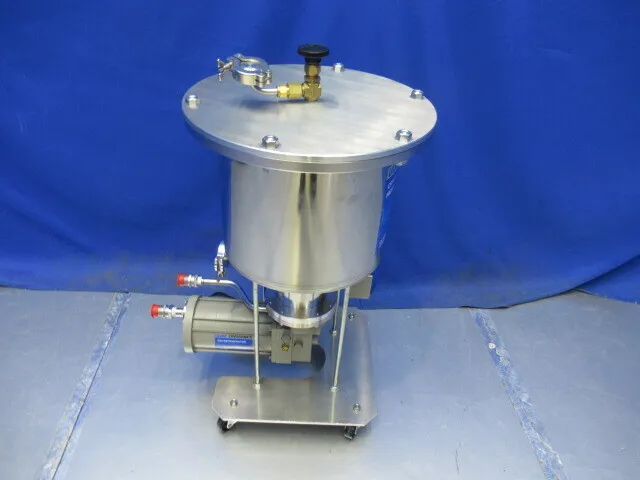

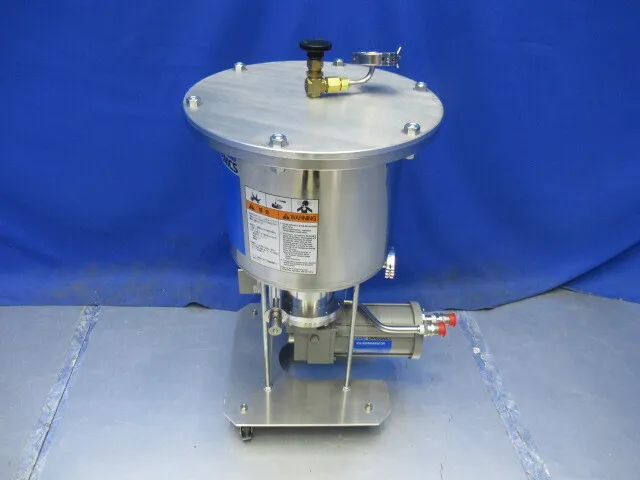

Cryopumps - ULVAC CRYO-U12HSP
Product Specifications
Maker ULVAC
Model CRYO-U12HSP
Category Pump
External Dimensions W520 D550 H700
Condition Used
Showroom Information
Exhibition hall Tsuru Technical Center
Price & Inquiry
price Price Inquiry
Inquiry Number O30661
Product Overview
ULVAC CRYO-U12HSP is a used Pump item available from ASKINDEX Korea. External dimensions: W520 D550 H700. It is kept in stock at our Tsuru Technical Center showroom, so stock checks and price quotations are available immediately. You can also compare other used products from the same manufacturer (ULVAC) and the same category (Pump).
Mechanical Specifications
Exhaust speed: 4100L/S
Flange outer diameter φ400mm
Exhaust speed (20℃) Ar_3,300L/s
Ultimate pressure 10-7(10-9)Pa(Torr)
Maximum flow rate: Ar_2.0×103(15)Pa・L/s(Torr・L/s)
Pumping capacity Ar_2.1×108 (1.6×106) Pa・L (Torr・L)
Cooling down time 85/75min(50/60Hz)
Cryometer (MBS-C2)

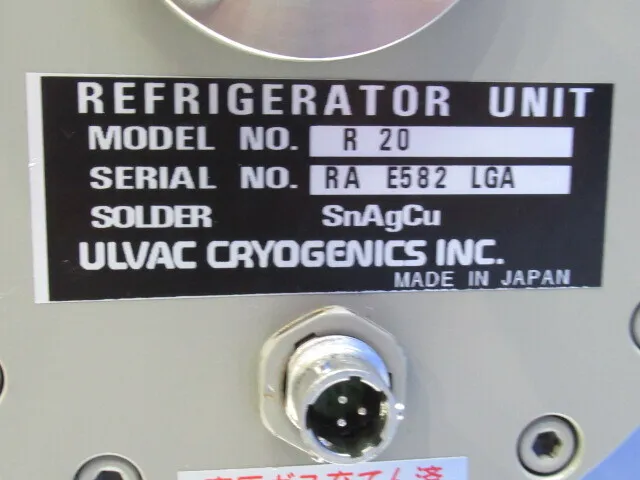

Regulator (R20)
Attachments
※ Click on the image below to zoom in.
