Cryopumps - ULVAC CRYO-U12HL
Product Specifications
Maker ULVAC
Model CRYO-U12HL
Category Pump
External Dimensions W750 D550 H500
Condition Used
Showroom Information
Exhibition hall Tsuru Technical Center
Price & Inquiry
price Price Inquiry
Inquiry Number O30763
Product Overview
ULVAC CRYO-U12HL is a used Pump item available from ASKINDEX Korea. External dimensions: W750 D550 H500. It is kept in stock at our Tsuru Technical Center showroom, so stock checks and price quotations are available immediately. You can also compare other used products from the same manufacturer (ULVAC) and the same category (Pump).
Mechanical Specifications
Flange outer diameter φ400mm
Exhaust speed (20℃) Ar_3,300L/s
Ultimate pressure 10-7(10-9)Pa(Torr)
Maximum flow rate: Ar_2.0×103(15)Pa・L/s(Torr・L/s)
Pumping capacity Ar_2.1×103 (2.3×106) Pa・L (Torr・L)
Cooling down time 90/80min(50/60Hz)
Cryometer (MBS-2)
Regulator (R20)
on castersangletable
Attachments

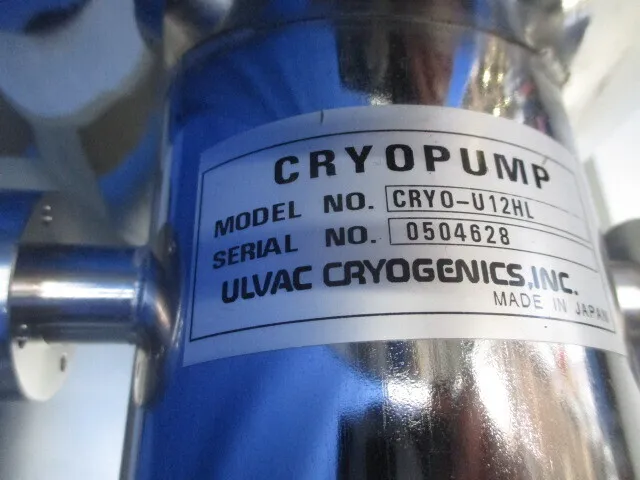

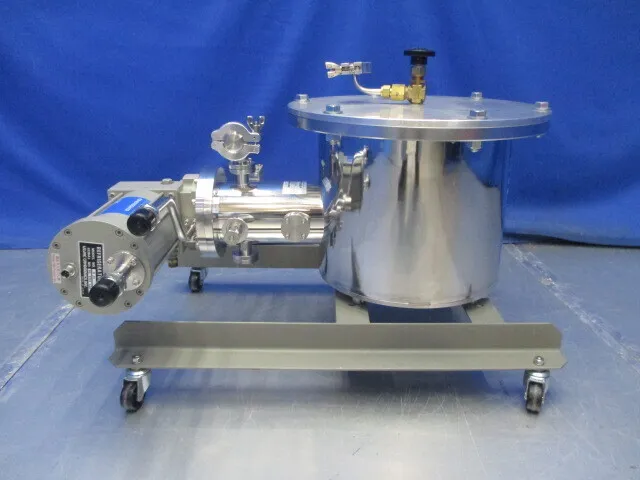

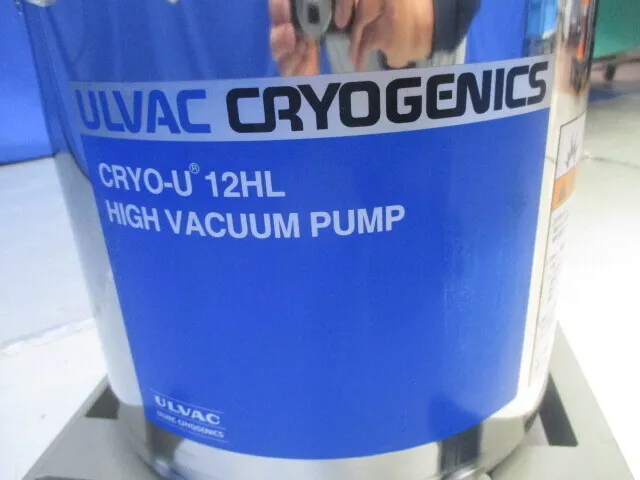

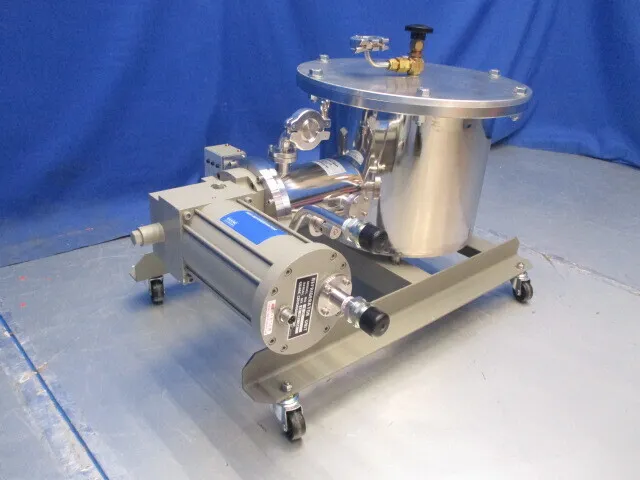

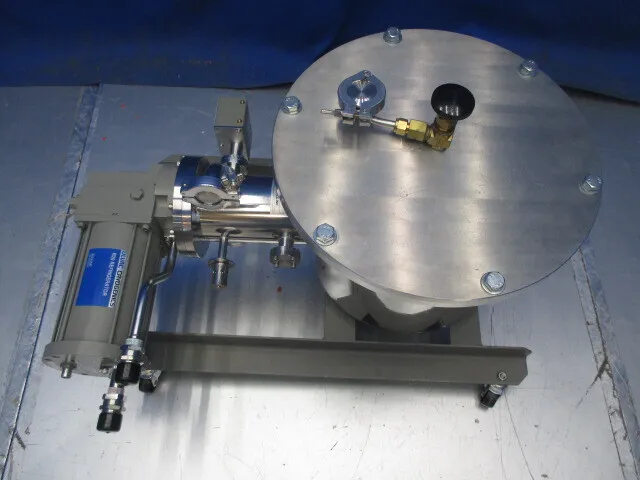

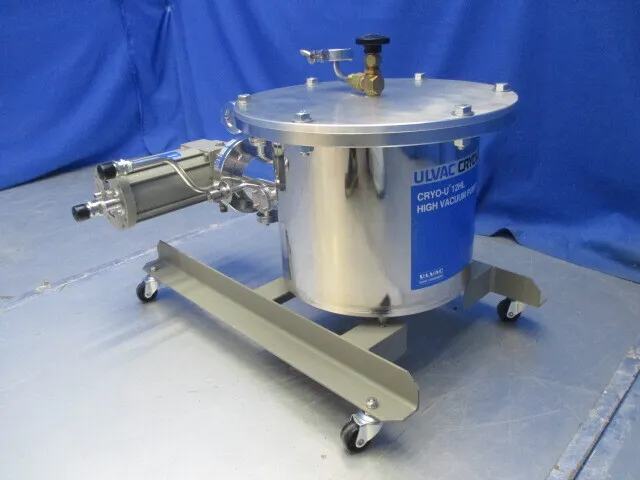

※ Click on the image below to zoom in.
