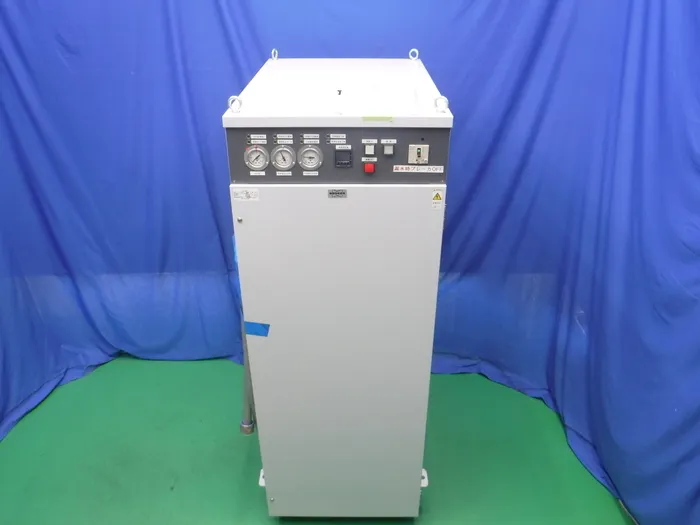

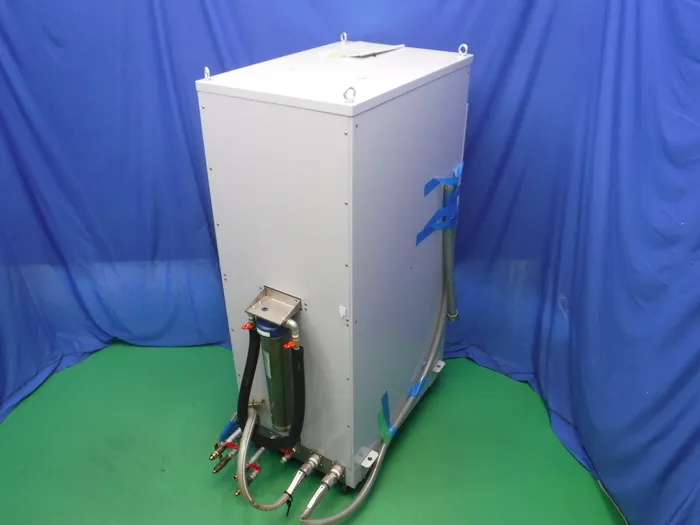

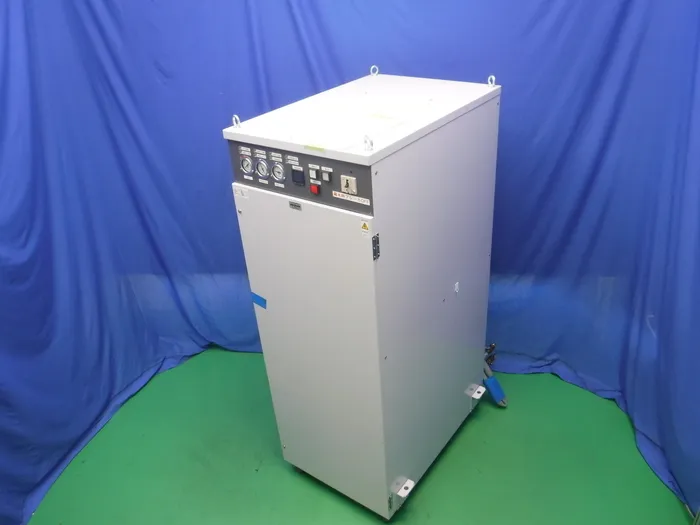

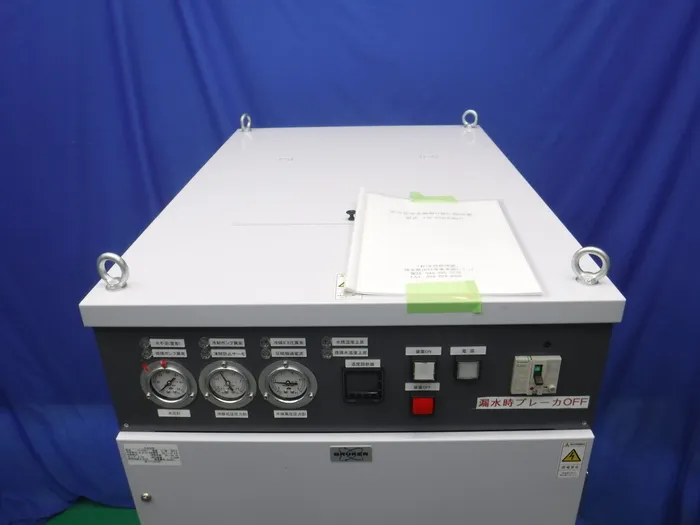

Chiller (water-cooled) - Chiyoda Cold Heat TQ-5500W(I)
Product Specifications
Maker Chiyoda Cold Heat
Model TQ-5500W(I)
Category Factory Equipment-Related
External Dimensions W675 D1165 H1700
Condition Used
Showroom Information
Exhibition hall Enzan Technical Center
Price & Inquiry
price Price Inquiry
Inquiry Number O50185
Product Overview
Chiyoda Cold Heat TQ-5500W(I) is a used Factory Equipment-Related item available from ASKINDEX Korea. External dimensions: W675 D1165 H1700. It is kept in stock at our Enzan Technical Center showroom, so stock checks and price quotations are available immediately. You can also compare other used products from the same manufacturer (Chiyoda Cold Heat) and the same category (Factory Equipment-Related).

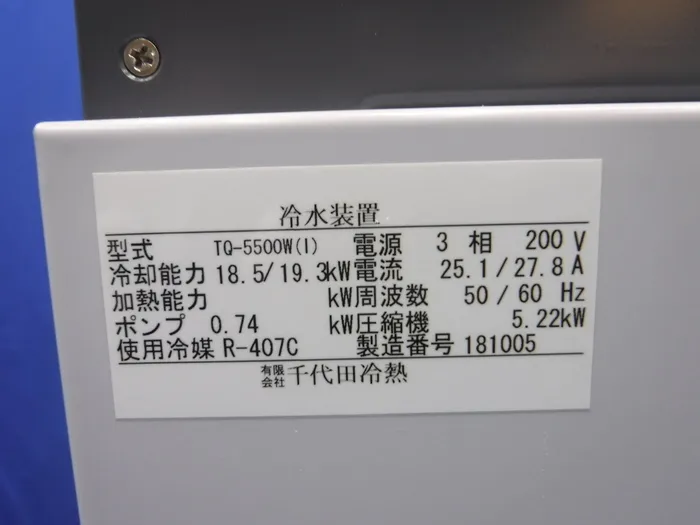

Mechanical Specifications
Cooling capacity: 18.5/19.3kW (20℃)
Temperature setting range: 20 to 35°C Liquid used: Pure water
Circulating water flow rate: 27L/min Refrigerant: R-407C
Power consumption: 7.0/7.7kW Pump 0.74kW Compressor 5.22kW
Power supply: AC200V 50/60Hz 3P
Attachments
※ Click on the image below to zoom in.
