Stepping motor - Oriental Motor PK266-02B
Product Specifications
Maker Oriental Motor
Model PK266-02B
Category Parts Related
Model year 2017
External Dimensions W56.4 D56.4 H86
Condition Used
Showroom Information
Exhibition hall Kyushu Technical Center
Price & Inquiry
price Price Inquiry
Inquiry Number O60901
Product Overview
Oriental Motor PK266-02B is a used Parts Related item available from ASKINDEX Korea. External dimensions: W56.4 D56.4 H86. It is kept in stock at our Kyushu Technical Center showroom, so stock checks and price quotations are available immediately. You can also compare other used products from the same manufacturer (Oriental Motor) and the same category (Parts Related).
Mechanical Specifications
2 phase
Rated current 2A/phase
Voltage 3.6V
Mounting angle: 56.4 mm
Shaft type: Double shaft
Connection method: Unipolar 6-lead
Maximum static torque 0.9 N m
Basic step angle 1.8°

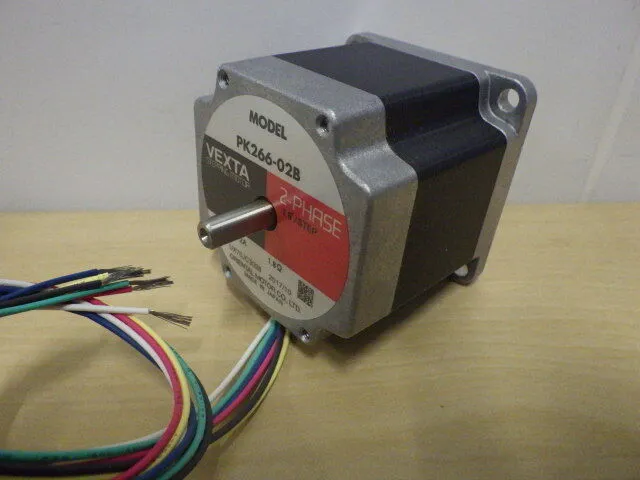

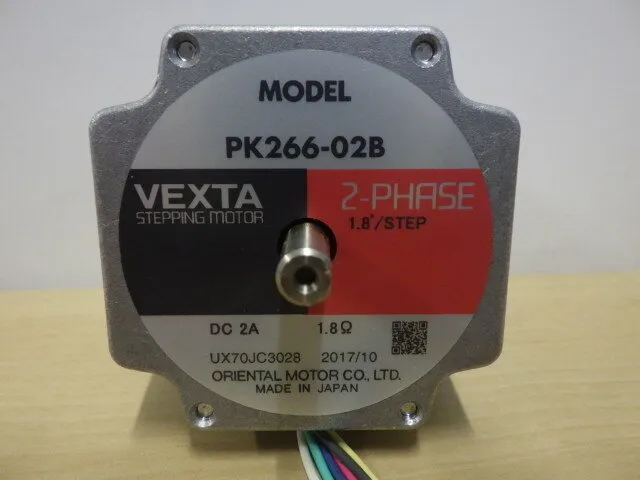

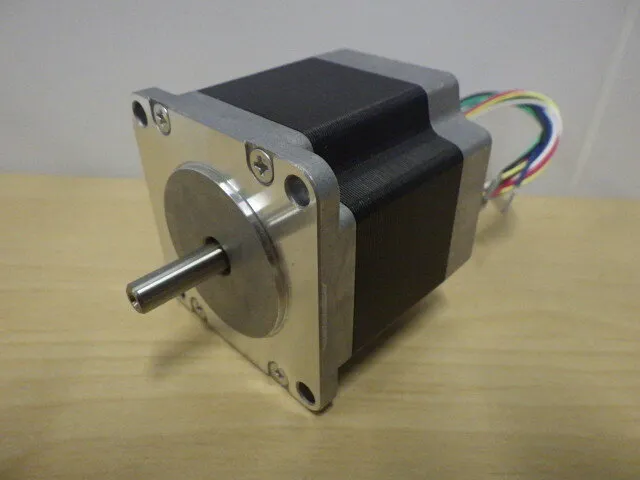

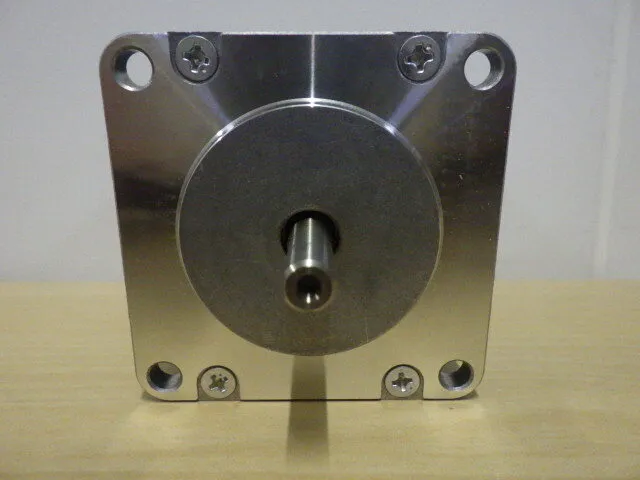

Attachments
※ Click on the image below to zoom in.
