Displacement Sensors - Thanks HL-C105B/HL-C1C
Product Specifications
Maker Thanks
Model HL-C105B/HL-C1C
Category R&D of Physical ・ Chemical Equipment
External Dimensions W40D90H125
Condition Used
Showroom Information
Exhibition hall Kyushu Technical Center
Price & Inquiry
price Price Inquiry
Inquiry Number O61142
Product Overview
Thanks HL-C105B/HL-C1C is a used R&D of Physical ・ Chemical Equipment item available from ASKINDEX Korea. External dimensions: W40D90H125. It is kept in stock at our Kyushu Technical Center showroom, so stock checks and price quotations are available immediately. You can also compare other used products from the same manufacturer (Thanks) and the same category (R&D of Physical ・ Chemical Equipment).
Mechanical Specifications
[Sensor head (HL-C105B)]
Type: Diffuse reflection
Measurement center distance: 50mm
Measurement range: ±5mm
Resolution: 1μm
Beam diameter: approx. 70x120μm
Light-emitting element: Red semiconductor laser (wavelength 658 nm)
[Controller (HL-C1C)]
Connectable sensor heads: 2 units
Power supply: DC24V
Attachments

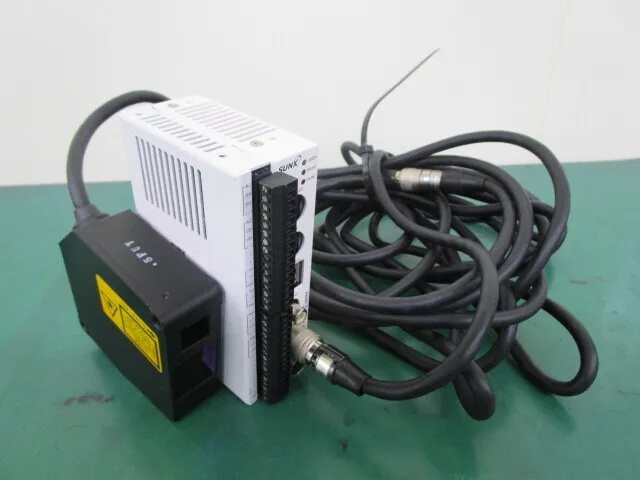

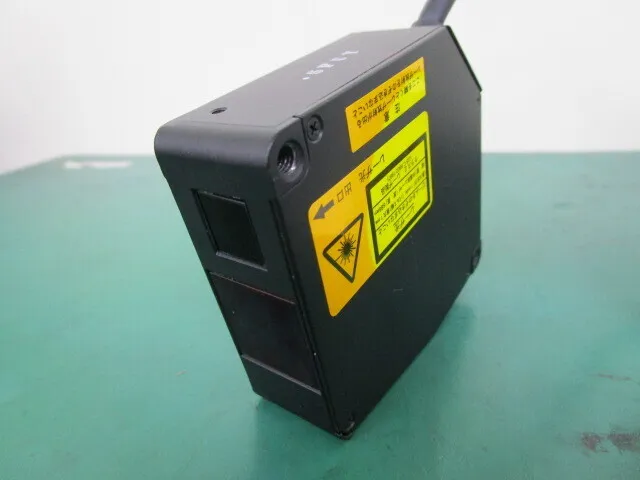

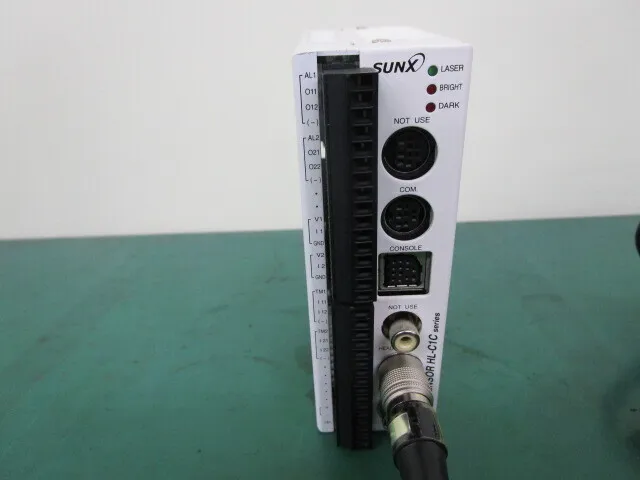

※ Click on the image below to zoom in.
