Organic EL luminous efficiency measuring device - Tokyo Instruments EL1003
Product Specifications
Maker Tokyo Instruments
Model EL1003
Category Measuring Instruments ・ Instruments
Condition Used
Showroom Information
Exhibition hall Enzan Technical Center
Price & Inquiry
price Price Inquiry
Inquiry Number O70398
Product Overview
Tokyo Instruments EL1003 is a used Measuring Instruments ・ Instruments item available from ASKINDEX Korea. It is kept in stock at our Enzan Technical Center showroom, so stock checks and price quotations are available immediately. You can also compare other used products from the same manufacturer (Tokyo Instruments) and the same category (Measuring Instruments ・ Instruments).
Mechanical Specifications
Accessories: Luminance meter (LS-160), DC power supply (VI1002)
computer
Mountable sample size: 20 to 100 mm square
Luminance measurement field of view: φ1.1-1.5mm/φ0.4-0.5mm
Luminance measurement angle: 0.3°
Spectral wavelength range: 380-780nm
Wavelength resolution: 2nm
Current measurement range: 0 to 200.0mA 100μA
Voltage measurement range: 0.00 to 38.00V 10mV
Radiation angle distribution measurement Rotation angle range: ±90°
* Cart sold separately

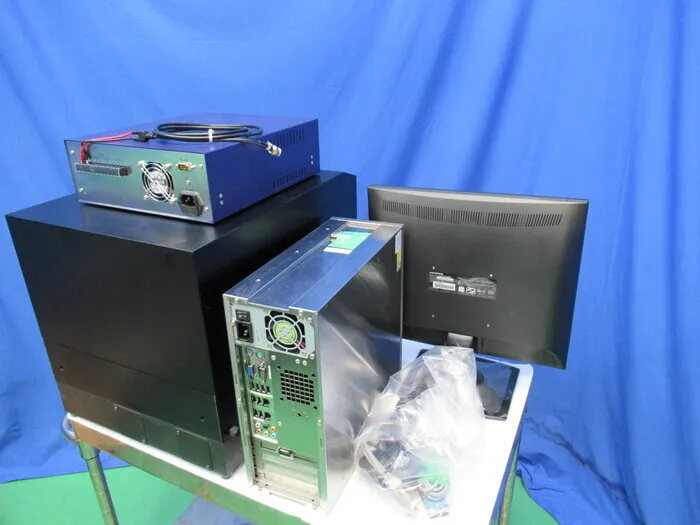

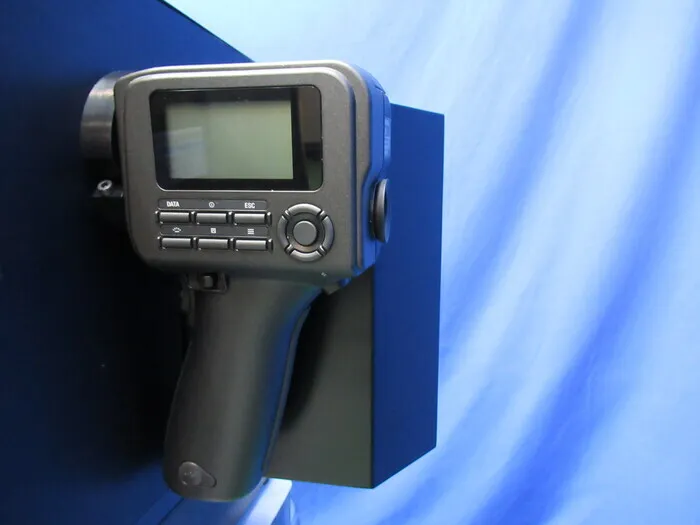

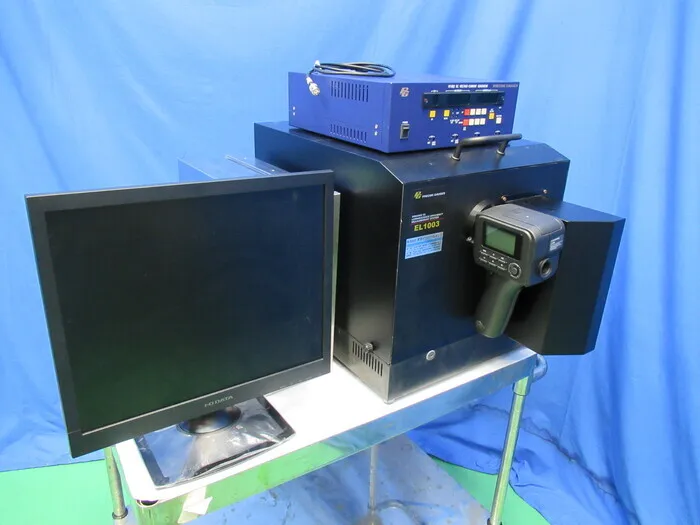

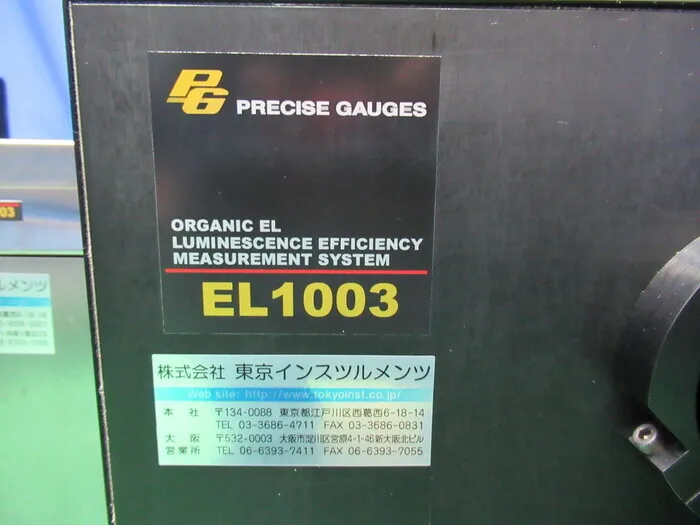

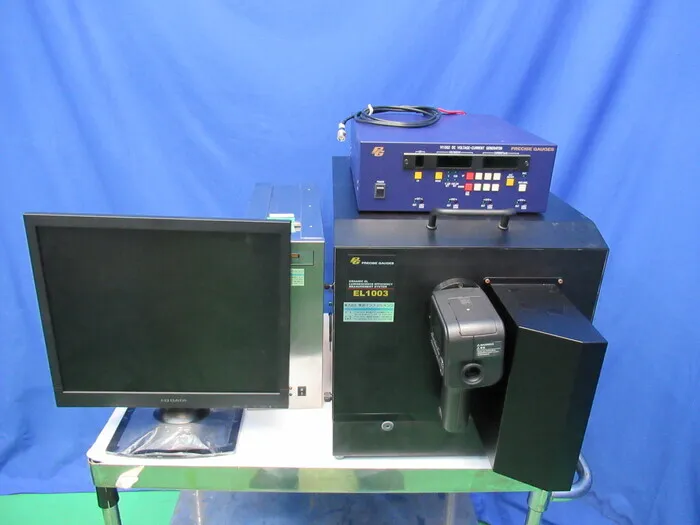

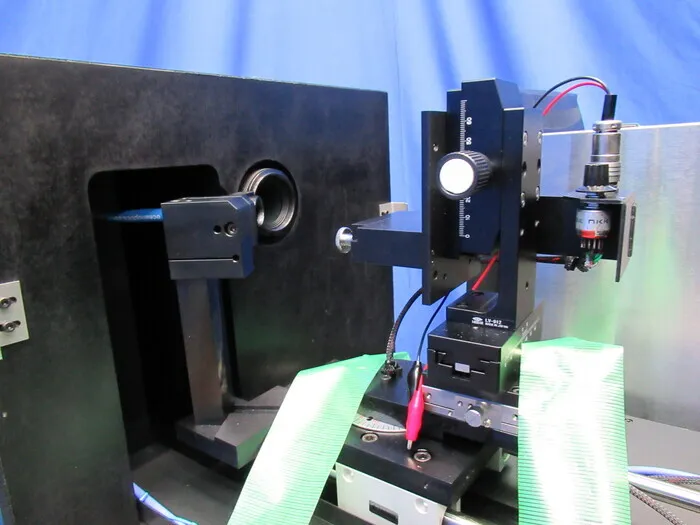

Attachments
