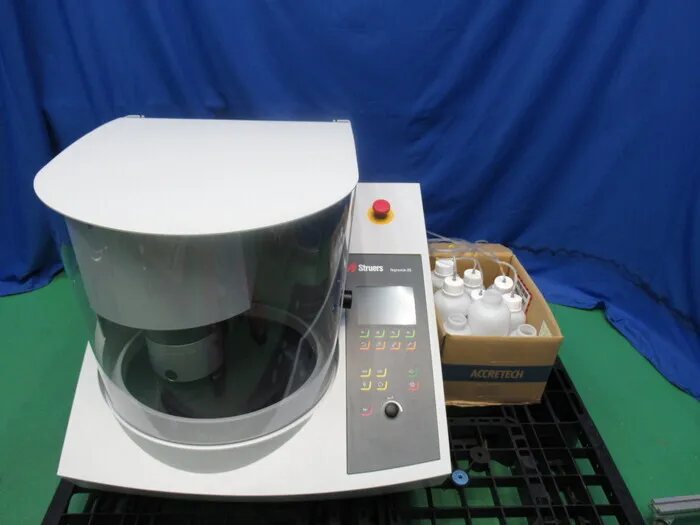

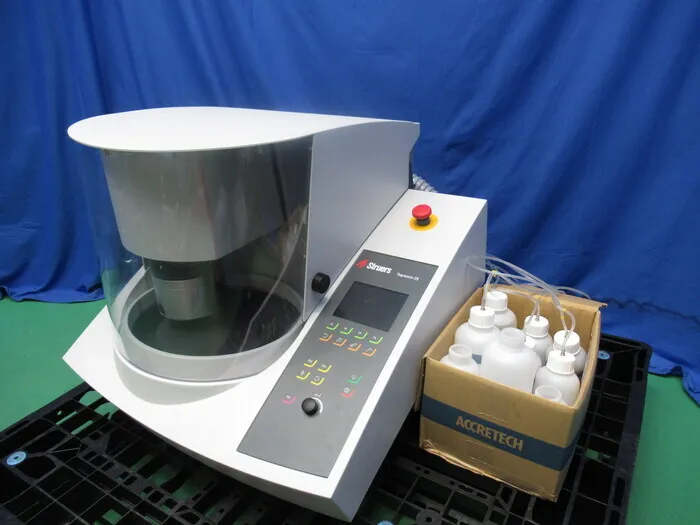

Precision automatic grinding machine - Struers Tegramin-25
Product Specifications
Maker Struers
Model Tegramin-25
Category Machining ・ Machine Tools
External Dimensions W675 D750 H582(900)
Condition Used
Showroom Information
Exhibition hall Enzan Technical Center
Price & Inquiry
price Price Inquiry
Inquiry Number O80237
Product Overview
Struers Tegramin-25 is a used Machining ・ Machine Tools item available from ASKINDEX Korea. External dimensions: W675 D750 H582(900). It is kept in stock at our Enzan Technical Center showroom, so stock checks and price quotations are available immediately. You can also compare other used products from the same manufacturer (Struers) and the same category (Machining ・ Machine Tools).
Mechanical Specifications

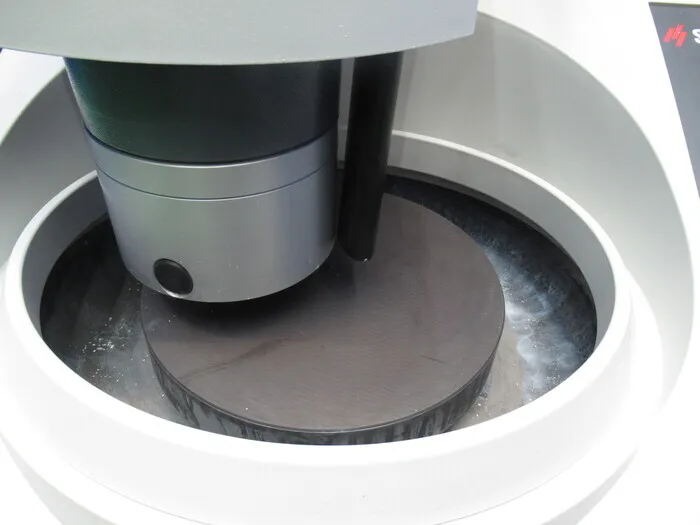

Working disc: φ250mm
Rotation speed: 40-600rpm
Rotation direction: Counterclockwise
Head rotation speed: 50-150 rpm
Rotation direction: Clockwise, Counterclockwise
Water pressure: 1 to 10 bar
Air pressure: 6-10bar Air flow: 3.5-4L/min

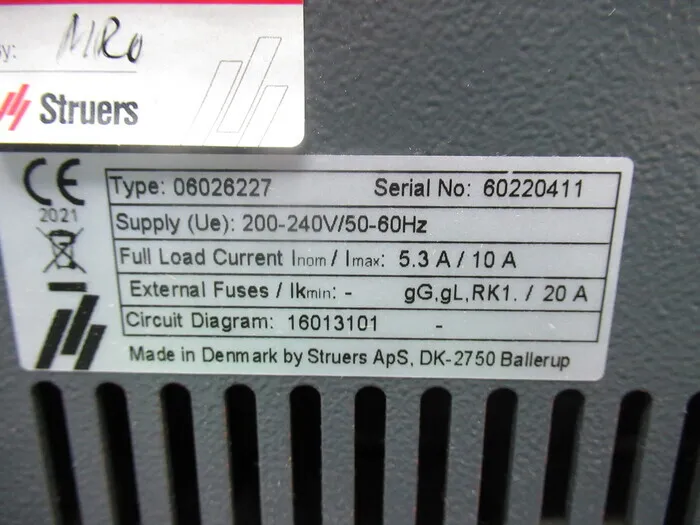

Power supply: AC200-240V 50/60Hz
Attachments
※ Click on the image below to zoom in.
