Sequencer (basic unit) - Mitsubishi Electric FX1N-60MT-D
Product Specifications
Maker Mitsubishi Electric
Model FX1N-60MT-D
Category Parts Related
External Dimensions W175 D80 H100
Condition Used
Showroom Information
Exhibition hall Tsuru Technical Center
Price & Inquiry
price Price Inquiry
Inquiry Number OB0618
Product Overview
Mitsubishi Electric FX1N-60MT-D is a used Parts Related item available from ASKINDEX Korea. External dimensions: W175 D80 H100. It is kept in stock at our Tsuru Technical Center showroom, so stock checks and price quotations are available immediately. You can also compare other used products from the same manufacturer (Mitsubishi Electric) and the same category (Parts Related).
Mechanical Specifications
Rated voltage: DC12-24V
Voltage tolerance: DC102-28.8V 20W MAX
Instruction types: 27 sequence instructions,
2 step ladder instructions
Application commands: 89 types
Number of inputs: 128 points or less (when used with expansion units) However, the total number of inputs and outputs is 128 points or less
Number of outputs: 128 points or less (when used with expansion units) However, the total number of inputs and outputs must be 128 points or less
Attachments

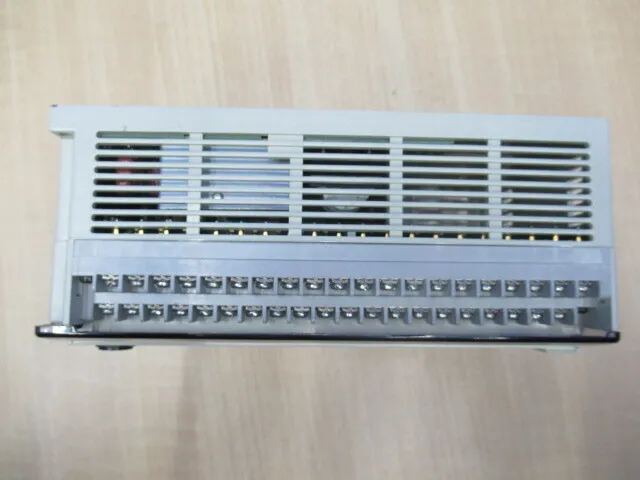

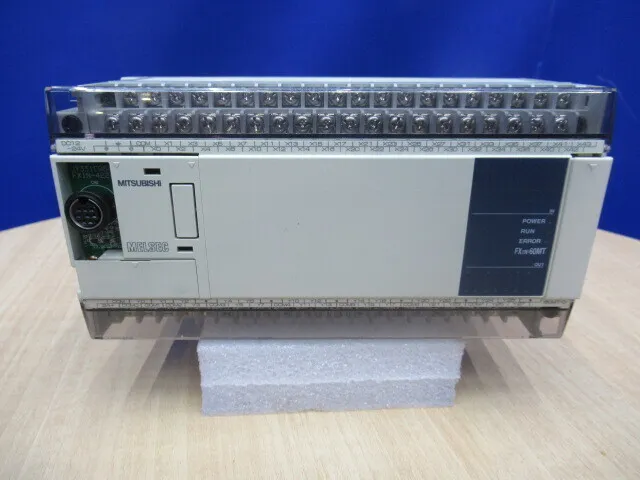

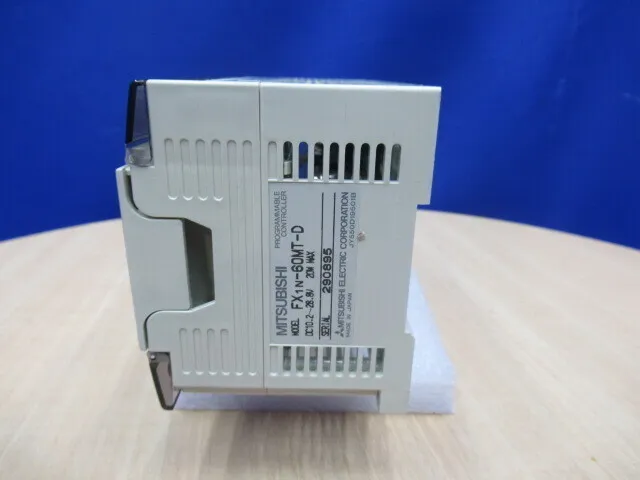

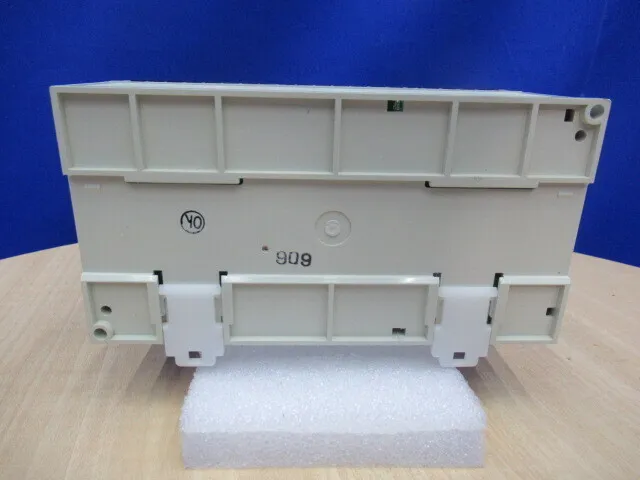

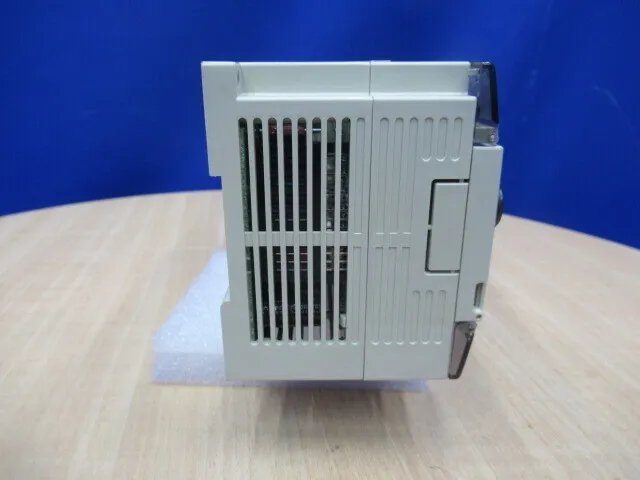

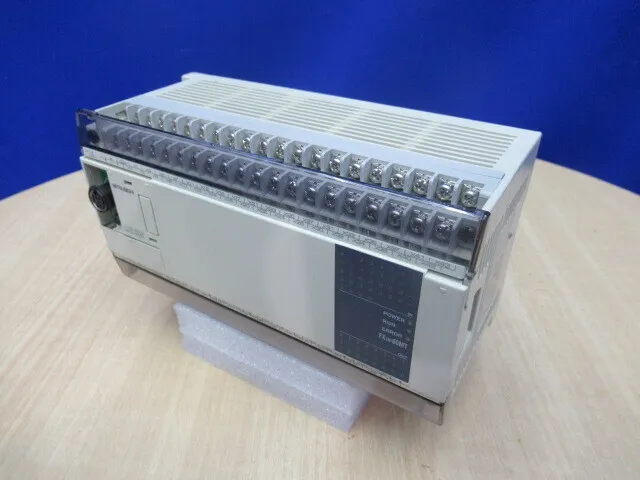

※ Click on the image below to zoom in.
