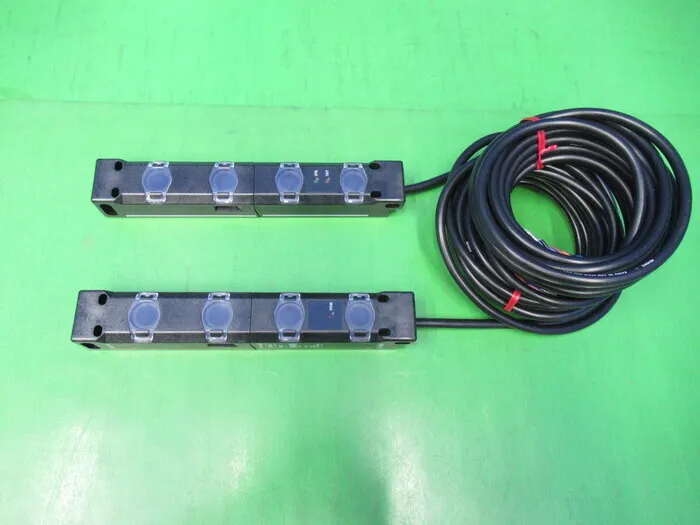

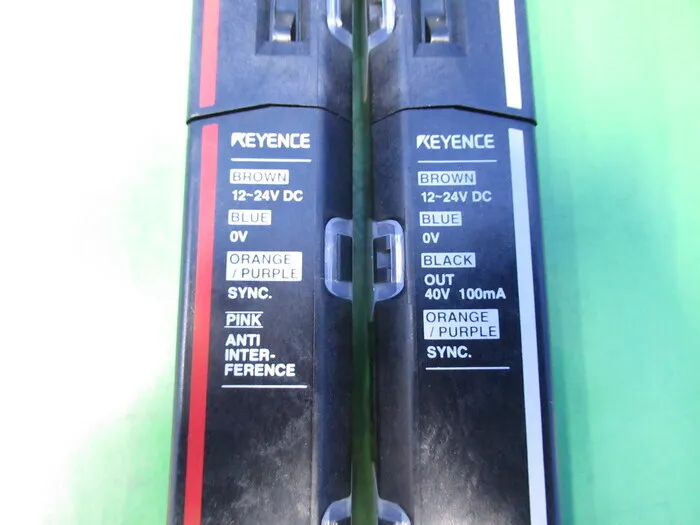

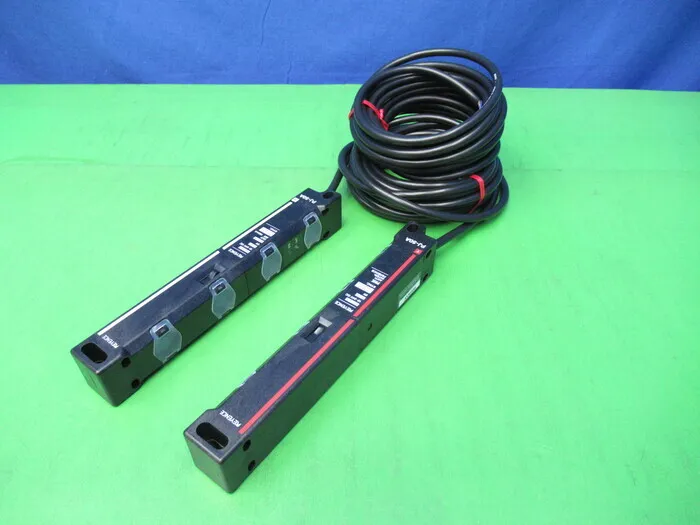

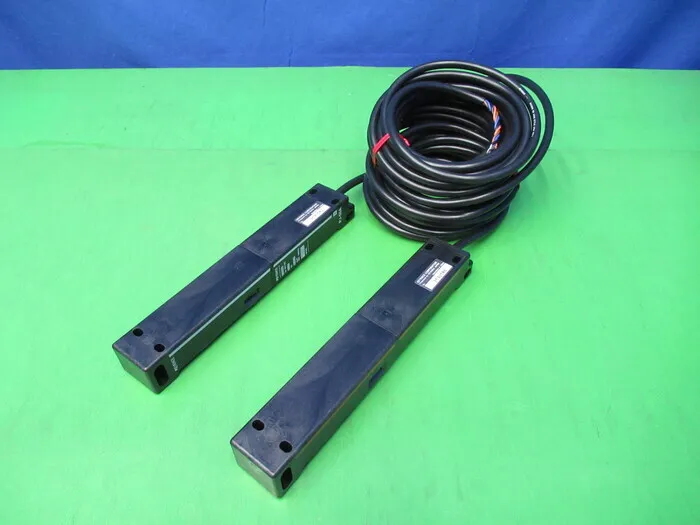

Area sensor (basic unit) - Keyence PJ-50A
Product Specifications
Maker Keyence
Model PJ-50A
Category Parts Related
External Dimensions W190 30 H25
Condition Used
Showroom Information
Exhibition hall Enzan Technical Center
Price & Inquiry
price Price Inquiry
Inquiry Number P30361
Product Overview
Keyence PJ-50A is a used Parts Related item available from ASKINDEX Korea. External dimensions: W190 30 H25. It is kept in stock at our Enzan Technical Center showroom, so stock checks and price quotations are available immediately. You can also compare other used products from the same manufacturer (Keyence) and the same category (Parts Related).
Mechanical Specifications
Expansion type
Number of beams: 4
Optical axis pitch: 40mm
Maximum number of optical axes: 28 optical axes (PJ-50A x 1 + PJ-55A x 12)
Detection area: 120mm (4 optical axes) to 1080mm (28 optical axes)
Detection distance: 5m
Detection object: Opaque object with diameter 50 mm or more
Light source: Infrared LED
Power supply: DC12-24V

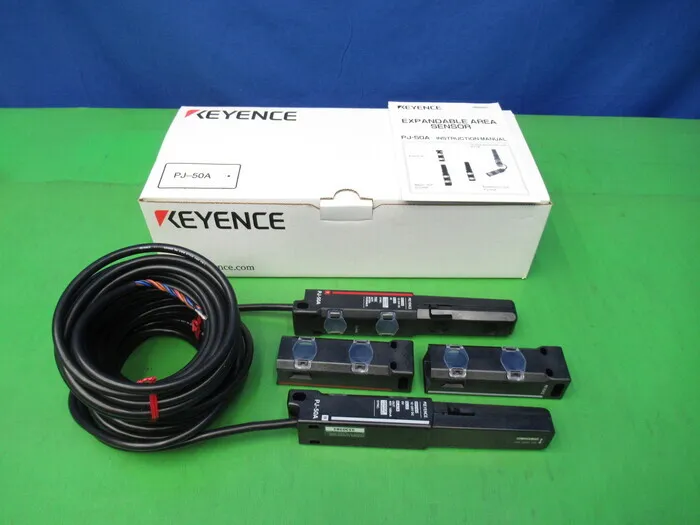

Cardboard box included
Attachments
※ Click on the image below to zoom in.
