5-axis optical stage - MKS 9082
Product Specifications
Maker MKS
Model 9082
Category R&D of Physical ・ Chemical Equipment
External Dimensions W117 D92 H34
Condition Used
Showroom Information
Exhibition hall Kyushu Technical Center
Price & Inquiry
price Price Inquiry
Inquiry Number P30511
Product Overview
MKS 9082 is a used R&D of Physical ・ Chemical Equipment item available from ASKINDEX Korea. External dimensions: W117 D92 H34. It is kept in stock at our Kyushu Technical Center showroom, so stock checks and price quotations are available immediately. You can also compare other used products from the same manufacturer (MKS) and the same category (R&D of Physical ・ Chemical Equipment).
Mechanical Specifications
Travel range: X, Y, Z axis 3 mm, angle adjustment (θx, θy) 8°
Drive system: Kinematic mechanism
Adjustment method: Fine adjustment with hexagonal wrench
Load capacity: 22 N
Material: Aluminum
Sensitivity: 0.9 µm linear translation, 18 µrad angular adjustment
Thread size: 8-32 and 1/4-20 tapped holes
Attachments

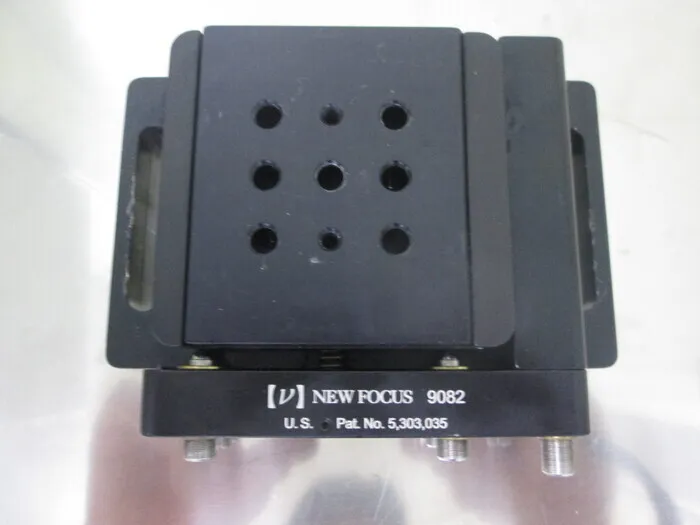

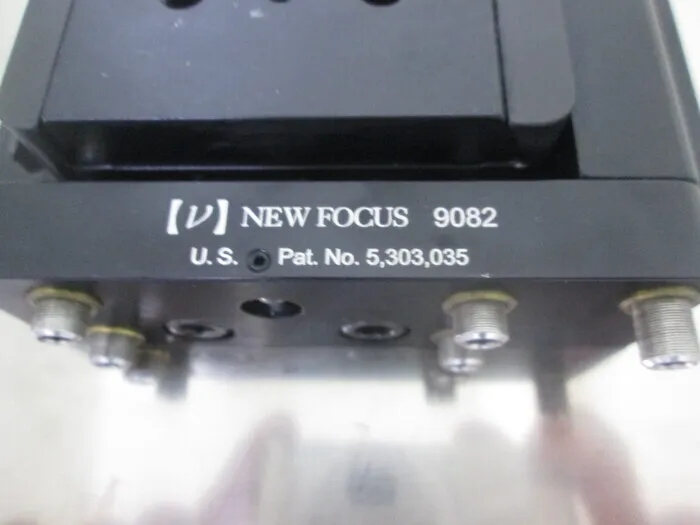

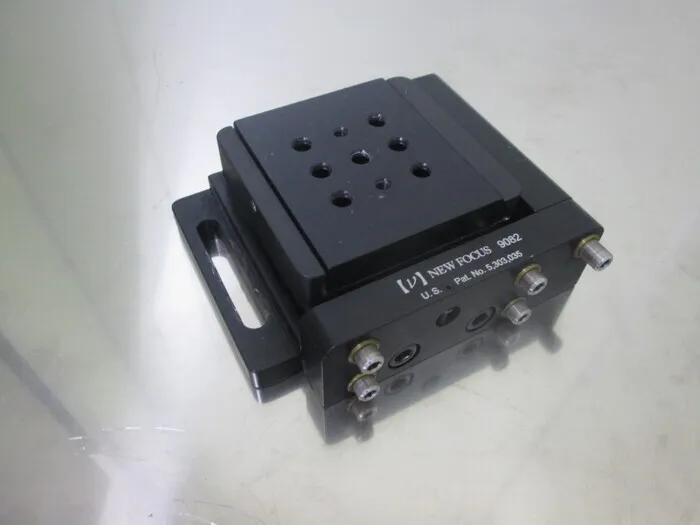

※ Click on the image below to zoom in.
