Amplifier unit - Keyence LX2-V10
Product Specifications
Maker Keyence
Model LX2-V10
Category Other
External Dimensions W48 D80 H78
Condition Used
Showroom Information
Exhibition hall Kyushu Technical Center
Price & Inquiry
price Price Inquiry
Inquiry Number P30986
Product Overview
Keyence LX2-V10 is a used Other item available from ASKINDEX Korea. External dimensions: W48 D80 H78. It is kept in stock at our Kyushu Technical Center showroom, so stock checks and price quotations are available immediately. You can also compare other used products from the same manufacturer (Keyence) and the same category (Other).
Mechanical Specifications
Display range: -19999 to 19999
Sampling rate: 12500 times/second
NPN open collector x 1ch
DC40V or less Max.100mA
Response time: 0.16ms
Output voltage: 0 to 5V (analog)
Output impedance: 100Ω
Temperature characteristics: 0.1% of FS/°C
Current consumption: 190mA or less (DC24V±10%)
Ambient temperature: 0 to +50°C
Ambient humidity: 35 to 86% RH (no condensation)
*2 in stock (2 under negotiation/Yahoo! Auctions)

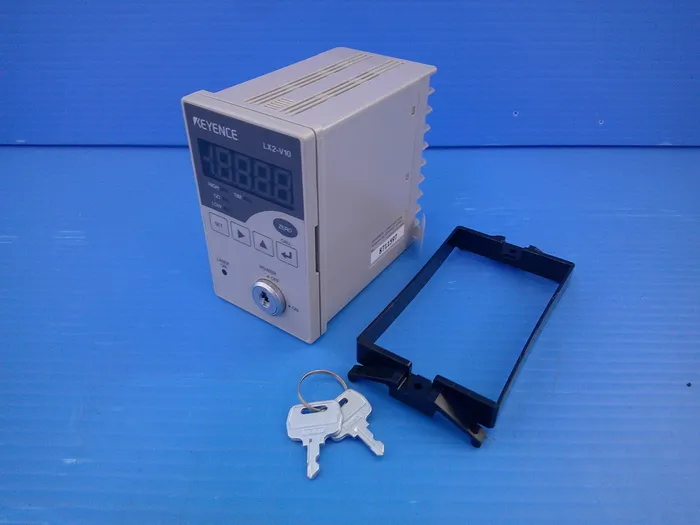

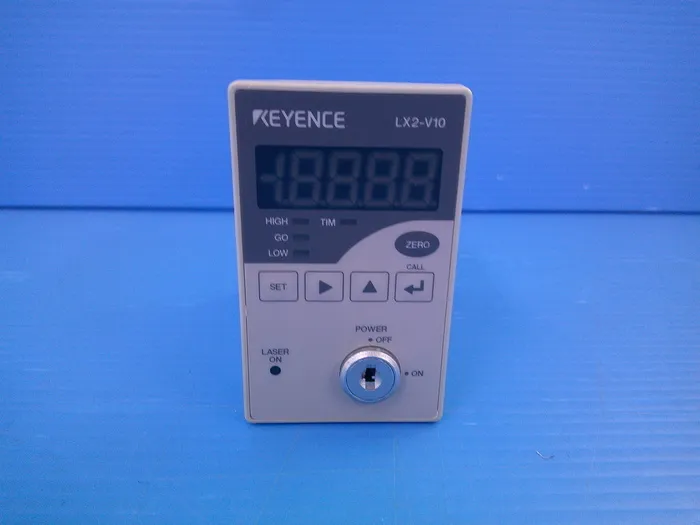

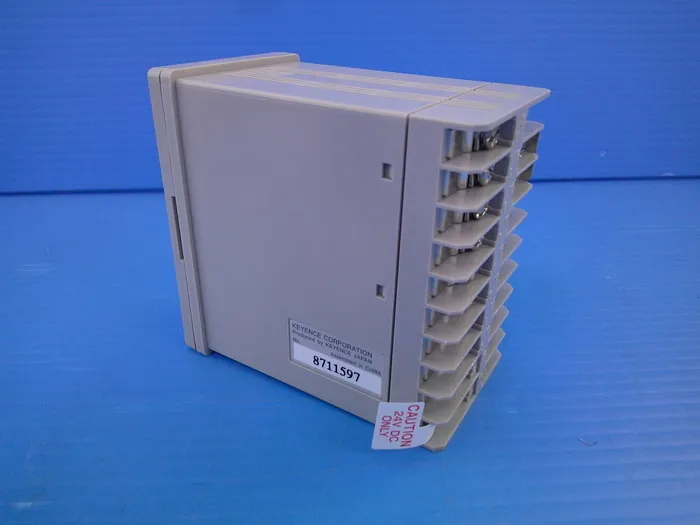

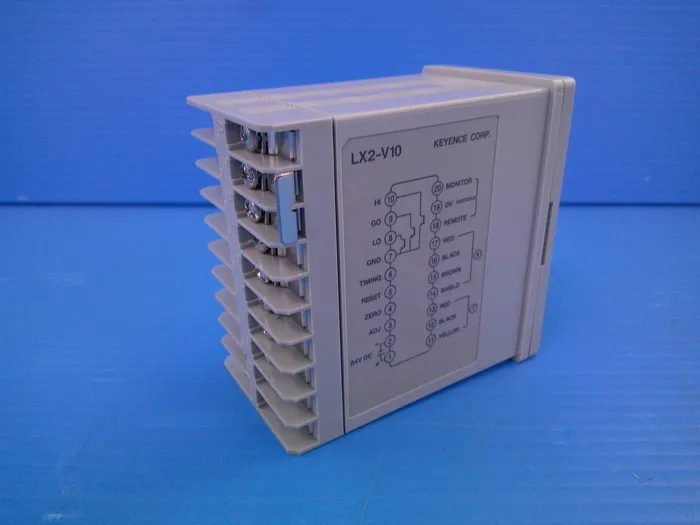

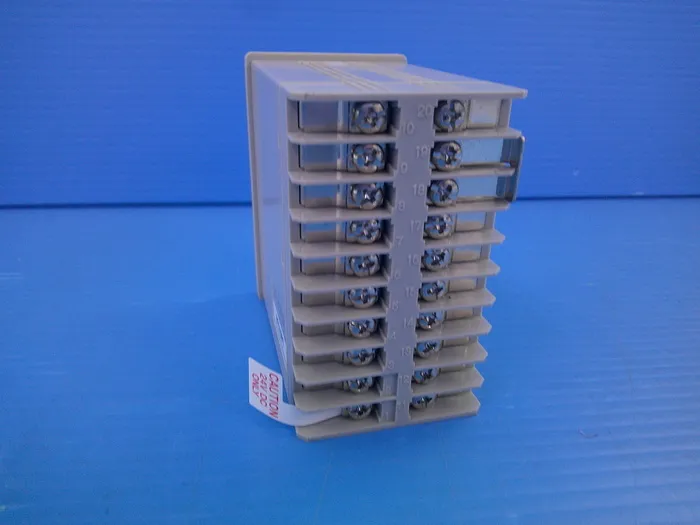

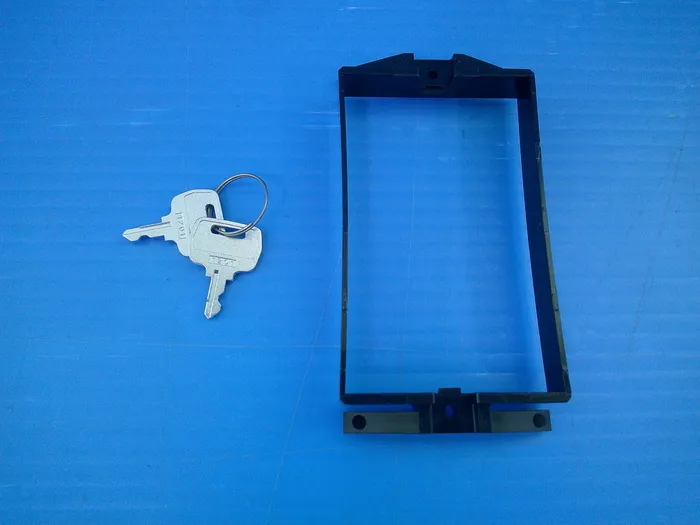

Attachments
※ Click on the image below to zoom in.
