Switching power supply - Omron S8VS-09024A/ED2
Product Specifications
Maker Omron
Model S8VS-09024A/ED2
Category Parts Related
External Dimensions W52 D121 H117
Condition Used
Showroom Information
Exhibition hall Enzan Technical Center
Price & Inquiry
price Price Inquiry
Inquiry Number P80712
Product Overview
Omron S8VS-09024A/ED2 is a used Parts Related item available from ASKINDEX Korea. External dimensions: W52 D121 H117. It is kept in stock at our Enzan Technical Center showroom, so stock checks and price quotations are available immediately. You can also compare other used products from the same manufacturer (Omron) and the same category (Parts Related).
Mechanical Specifications
Output conditions: Rated input voltage AC100 to 240V
Input voltage tolerance range: AC85 to 264V
DC 80 to 370 V
Frequency 50/60Hz (47-450Hz)
Input current: 2.3A or less, 1.9A typ. (at AC100V input)
1.4A or less, 1.2A typ. (at AC200V input)
Leakage current: 0.5mA or less (at AC100V input)
1.0mA or less (when AC200V input)
Inrush current (25°C cold start): 17.5A or less, 14A typ. (at 100V AC input)
35A or less, 28A typ. (at AC200V input)
Output characteristics: Output current 3.75A
Voltage variable range -10 to +15% at V.ADJ
Ripple noise voltage: 150mV or less (at rated input/output)
Static input fluctuation: 0.5% or less (at 100% load)
Static load fluctuation: 1.5% or less (rated input, 0 to 100% load)
Ambient temperature fluctuation: 0.05%/℃ or less
Start-up time: 660 ms typ. (when AC100V input)
420ms typ. (AC200V input)
Output hold time: 28 ms typ. (at 100 V AC input)
136ms typ. (AC200V input)

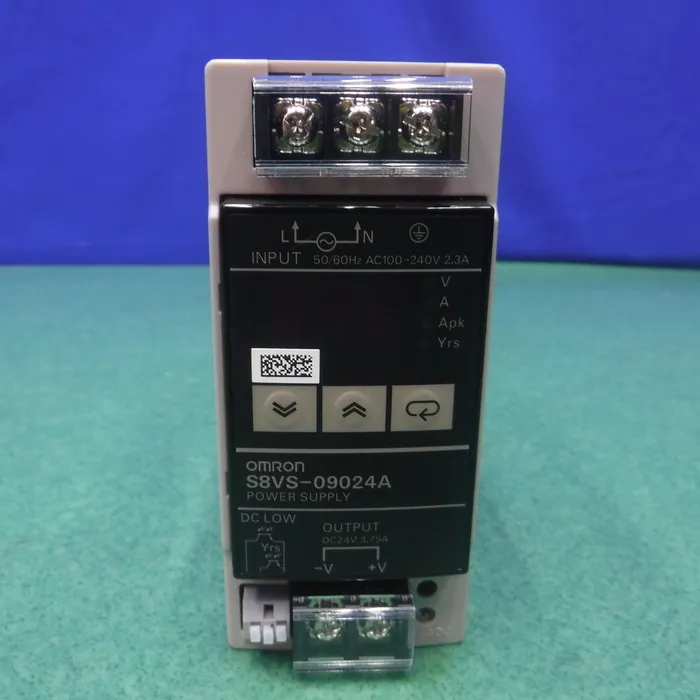

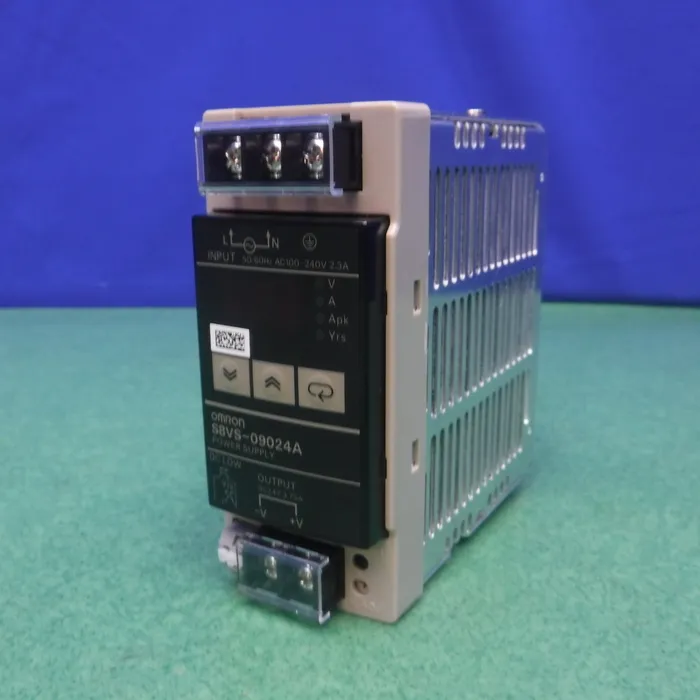

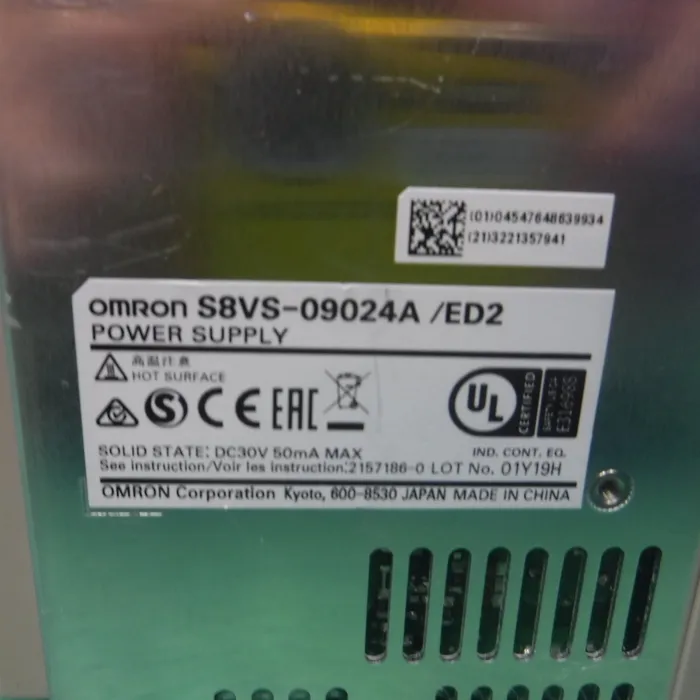

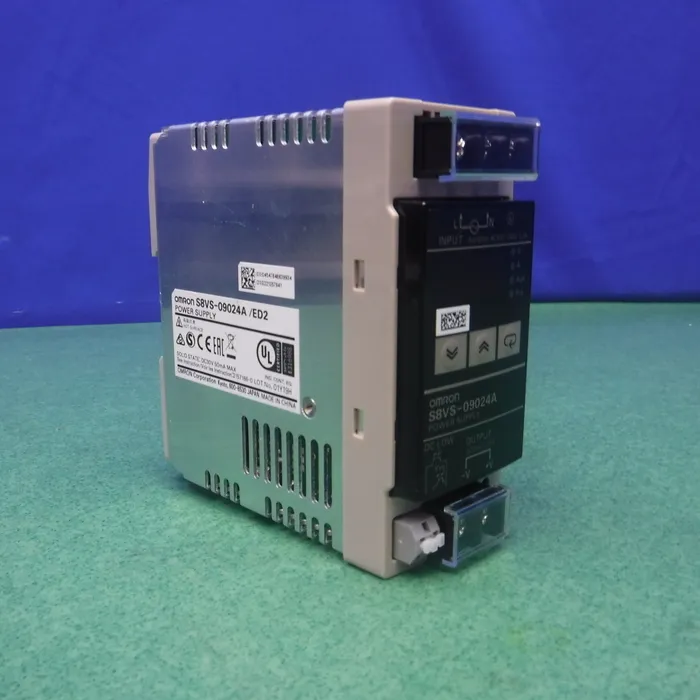

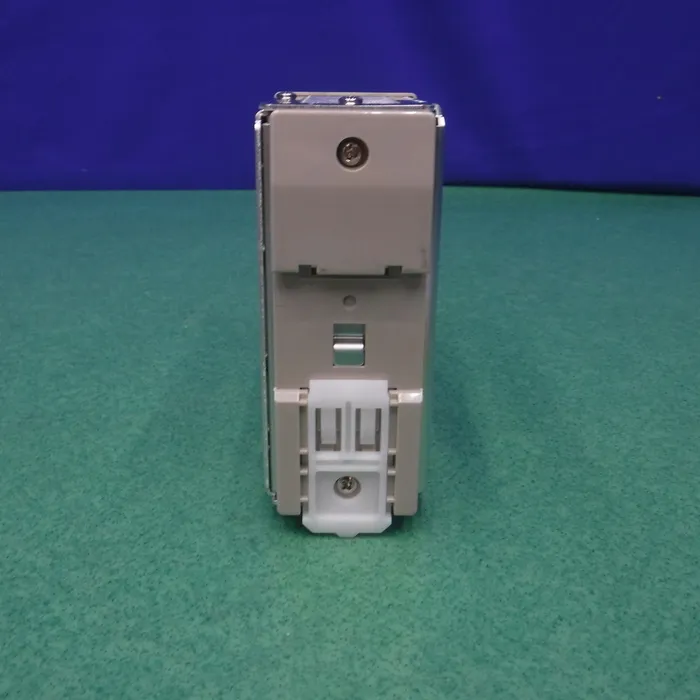

Attachments
※ Click on the image below to zoom in.
