Spectroradiometer - Topcon SR-3AR
Product Specifications
Maker Topcon
Model SR-3AR
Category Measuring Instruments ・ Instruments
External Dimensions W150 D380 H245
Condition Used
Showroom Information
Exhibition hall Enzan Technical Center
Price & Inquiry
price Price Inquiry
Inquiry Number PA0120
Product Overview
Topcon SR-3AR is a used Measuring Instruments ・ Instruments item available from ASKINDEX Korea. External dimensions: W150 D380 H245. It is kept in stock at our Enzan Technical Center showroom, so stock checks and price quotations are available immediately. You can also compare other used products from the same manufacturer (Topcon) and the same category (Measuring Instruments ・ Instruments).
Mechanical Specifications
Photodetector: Thermoelectrically cooled linear array sensor
Dispersion element: diffraction grating
Optical system: Objective lens: f = 82mm F2.5
Eyepiece: 5° field of view
Measuring angle: 2/1/0.2/0.1° (electrically switched)
Measurement distance: 350 mm to infinity (distance from the tip of the objective lens hardware)
Spectral wavelength width: 5 to 8 nm (half width)
Measurement wavelength range: 380 to 780 nm
Measurement details Spectral radiance: W･sr-1･m-2･nm-1
Power supply: Dedicated AC adapter AC100-240V 50/60Hz 34W
Included case dimensions: W530 D250 H470

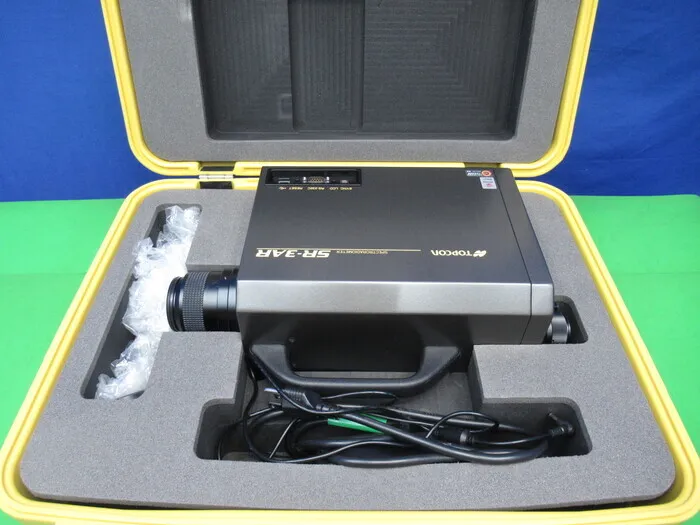

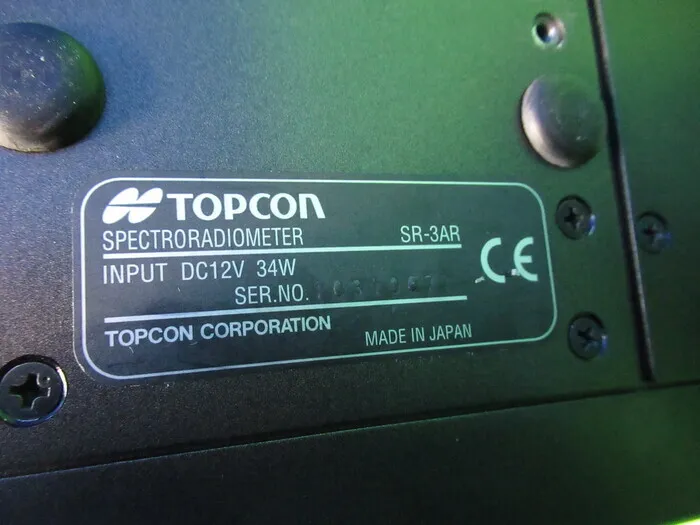

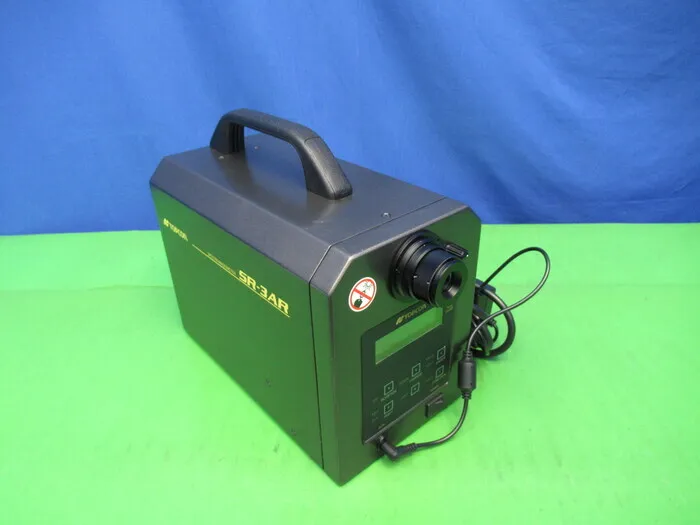

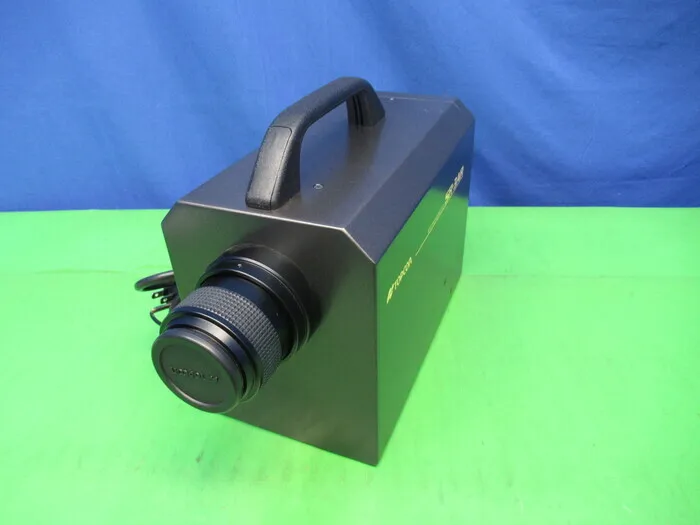

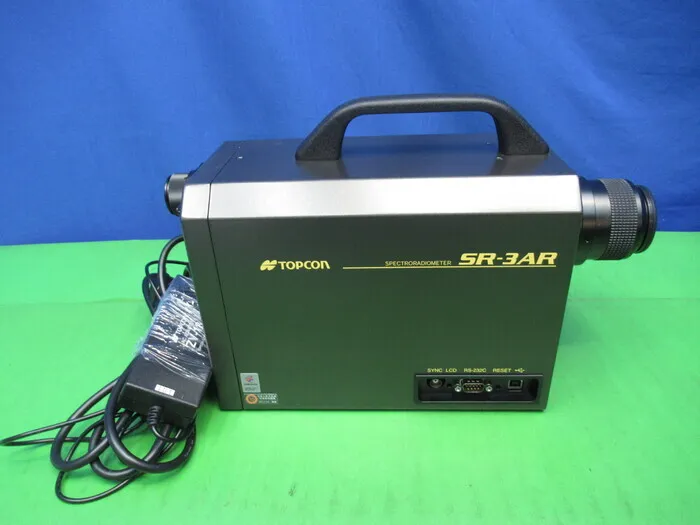

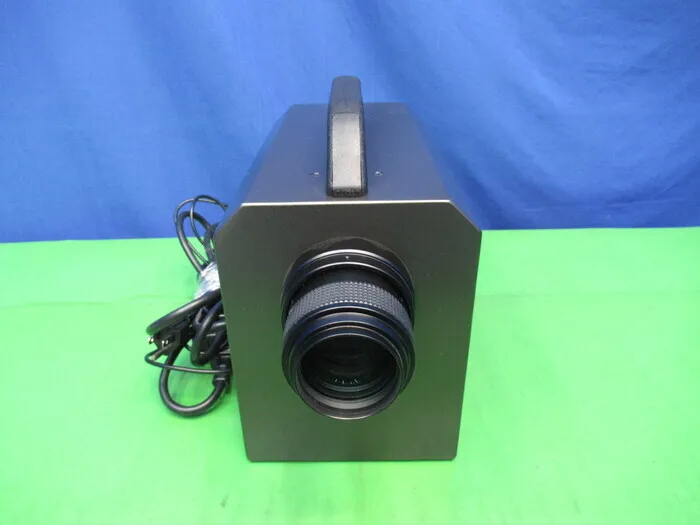

Attachments
※ Click on the image below to zoom in.
