Chemical Drum Pump - Aqua System CHD-20AHPN
Product Specifications
Maker Aqua System
Model CHD-20AHPN
Category Pump
Condition Used
Showroom Information
Exhibition hall Enzan Technical Center
Price & Inquiry
price Price Inquiry
Inquiry Number PA0327
Product Overview
Aqua System CHD-20AHPN is a used Pump item available from ASKINDEX Korea. It is kept in stock at our Enzan Technical Center showroom, so stock checks and price quotations are available immediately. You can also compare other used products from the same manufacturer (Aqua System) and the same category (Pump).
Mechanical Specifications
Unused item
Lifting height: 3m (pushing)
Maximum discharge amount: 25L/min (at 1cP)
Body material: PVDF, PP, PTFE, ETFE, Alloy625, SUS304
Packing: FKM, NBR
Compatible models: 200L closed drums
Operating temperature range: 0 to 60°C
Air consumption: 235 L/min (at 0.3 MPa)
Hose inner diameter: φ25mm Hose length: 2m
Compressor: 5 horsepower
Manual gun nozzle, PVC (Φ25 x 2m)

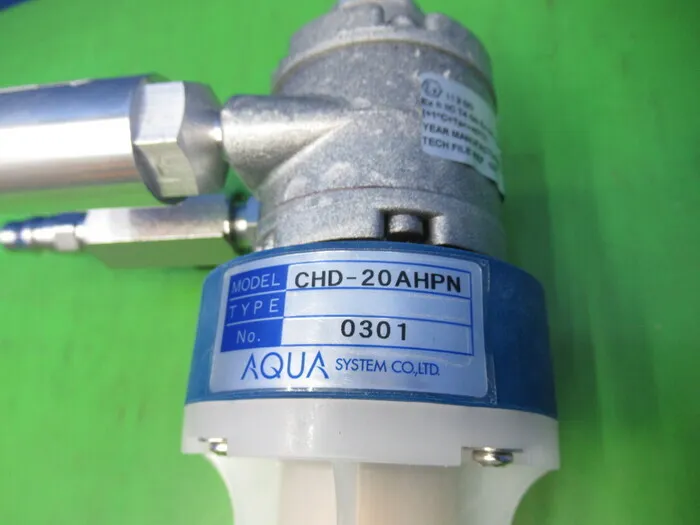

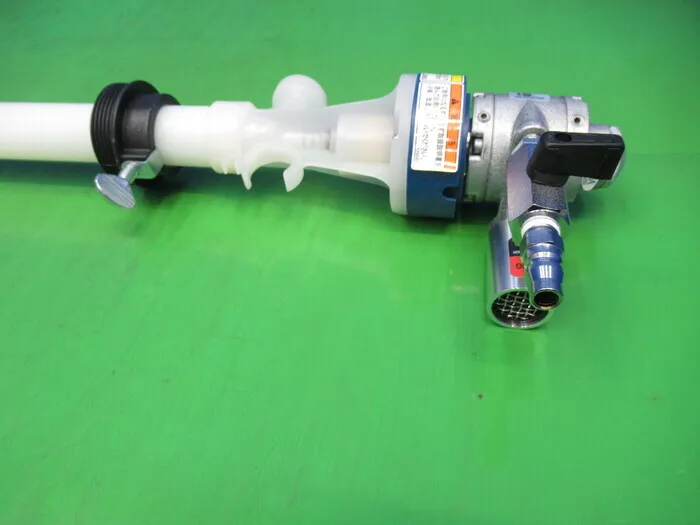

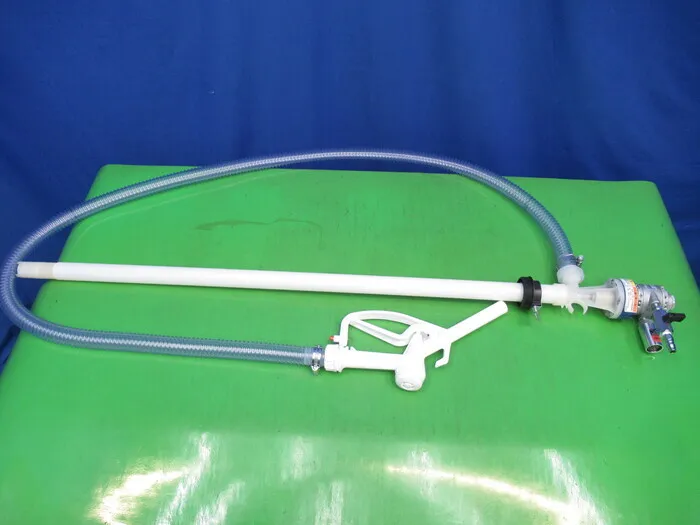

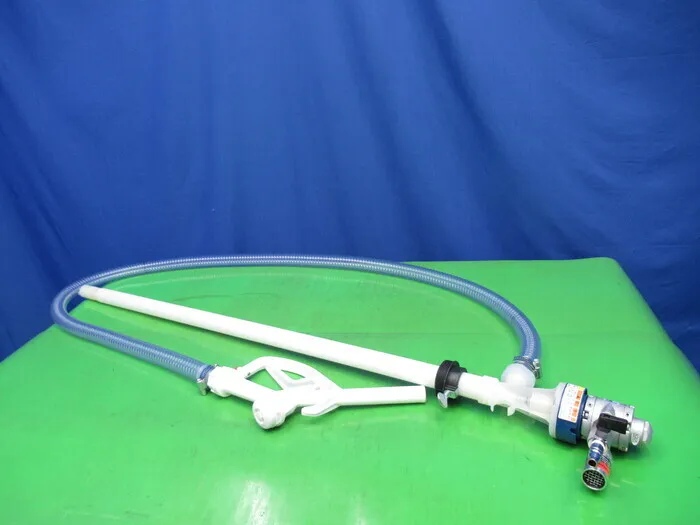

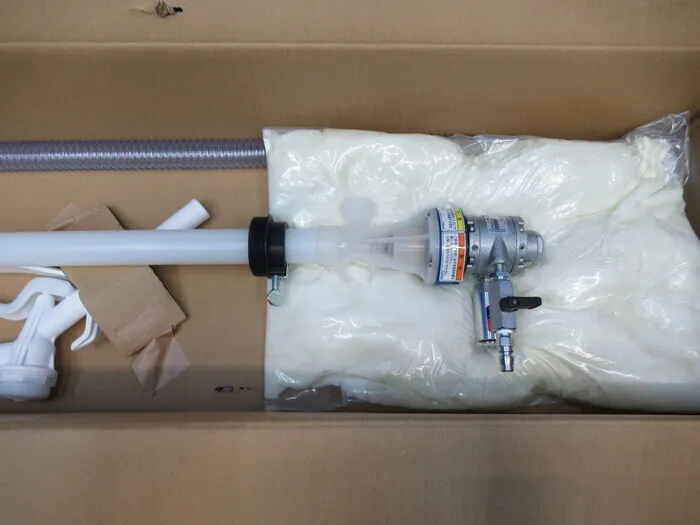

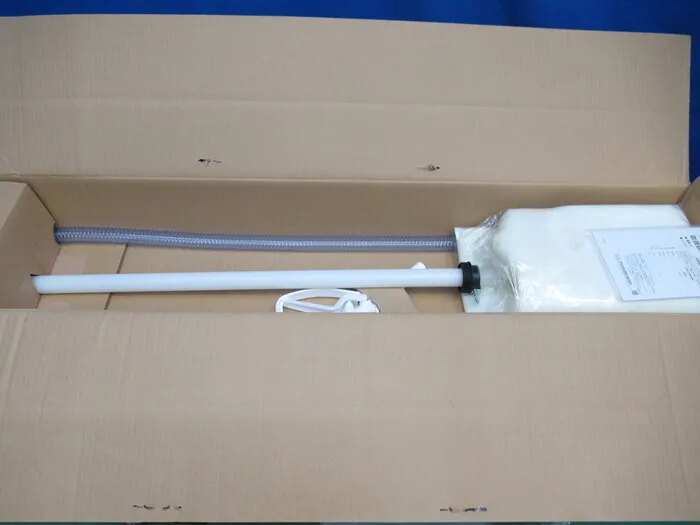

Attachments
※ Click on the image below to zoom in.
