Optical interference film thickness measuring instrument - Dainippon Screen VM-1210
Product Specifications
Maker Dainippon Screen
Model VM-1210
Category Measuring Instruments ・ Instruments
External Dimensions 700×600×900
Condition Used
Showroom Information
Exhibition hall etc
Price & Inquiry
price Price Inquiry
Inquiry Number PA0506
Product Overview
Dainippon Screen VM-1210 is a used Measuring Instruments ・ Instruments item available from ASKINDEX Korea. External dimensions: 700×600×900. It is kept in stock at our etc showroom, so stock checks and price quotations are available immediately. You can also compare other used products from the same manufacturer (Dainippon Screen) and the same category (Measuring Instruments ・ Instruments).
Mechanical Specifications
Measurement area:
φ5μm (10X objective lens)
φ2.5 μm (20X objective lens)
φ10 μm (5X objective lens)
φ1 μm (50X objective lens) (optional)
Film thickness measurement range: 10nm to 20μm (when measuring SiO2 on Si with a 10X objective lens)
Measurement time: 1 second or less (when measuring SiO2 on Si with a 10X objective lens)
Measurement repeatability (σ):
0.1 nm (for film thicknesses of 10 nm to 3,000 nm)
0.03% (when film thickness is 3 μm to 20 μm)

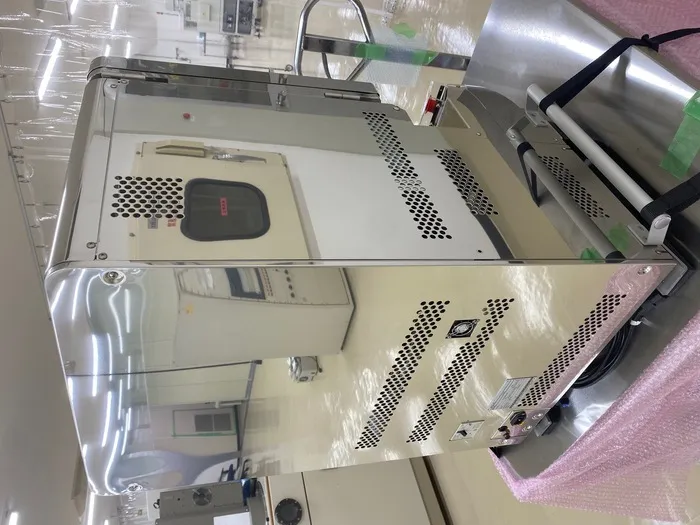

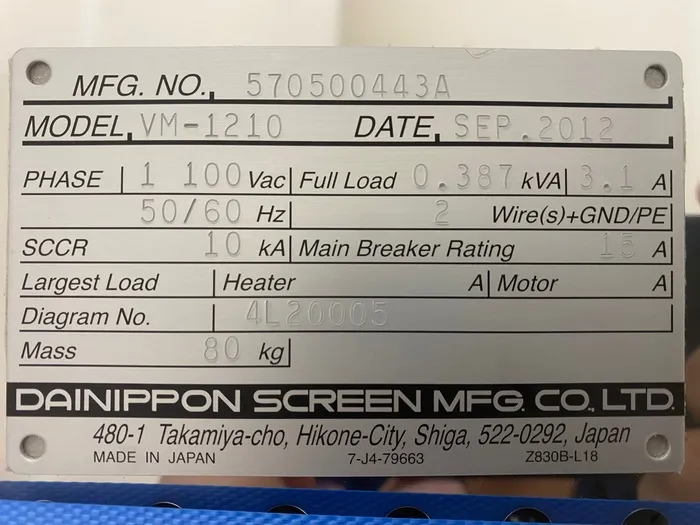

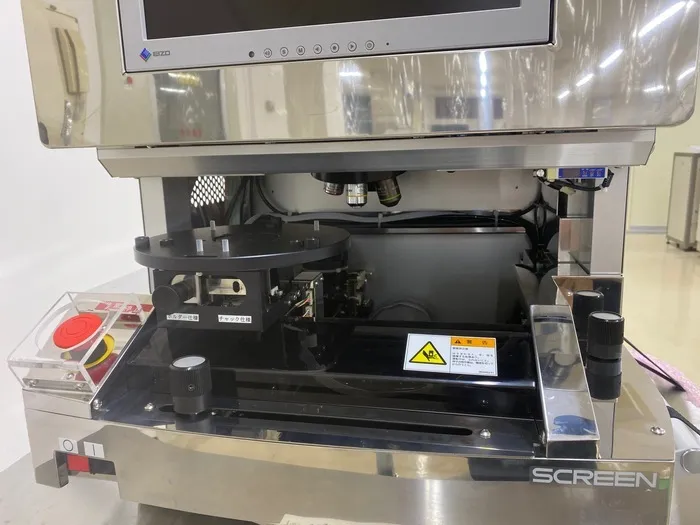

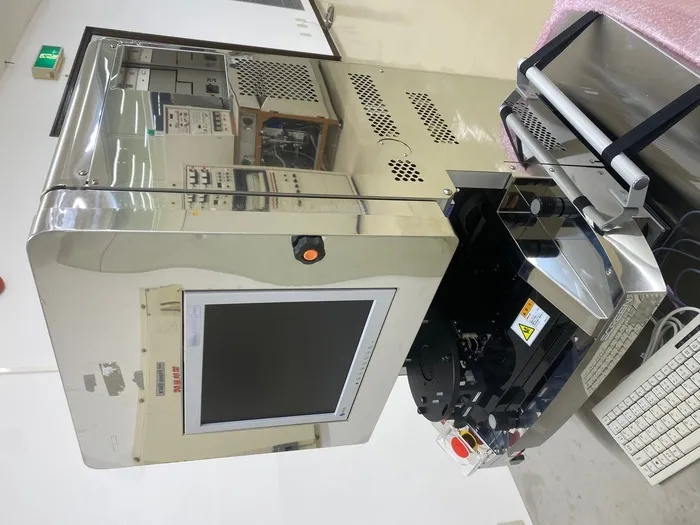

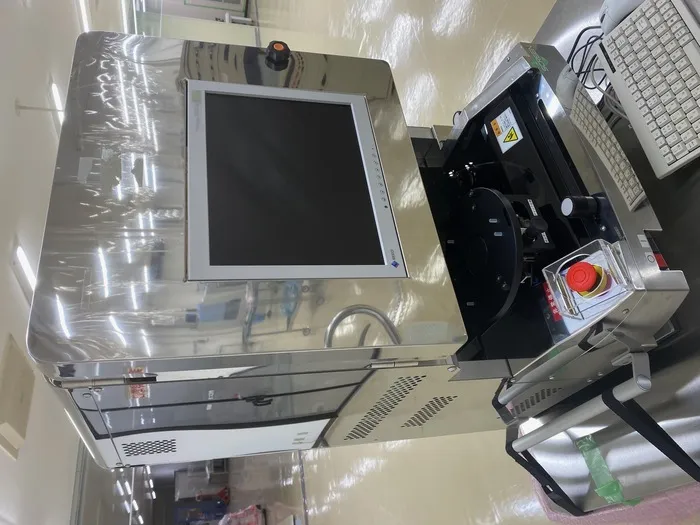

Attachments
※ Click on the image below to zoom in.
