Pressure pump (volute type water pump) - Grundfos CRN10-12 X-FGJ-G-E-HQQE

Product Specifications

Maker Grundfos

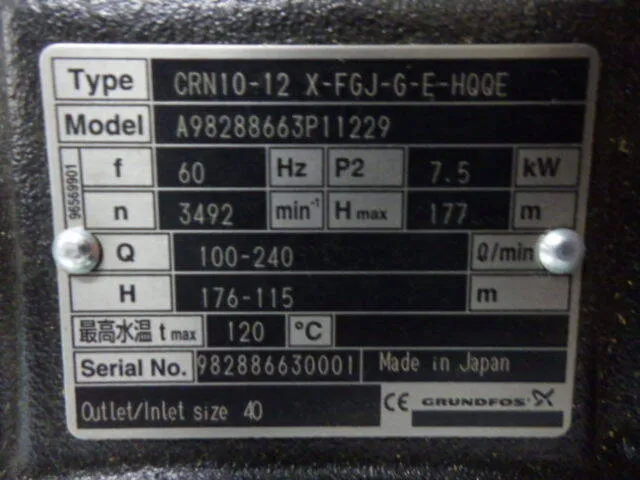

Model CRN10-12 X-FGJ-G-E-HQQE

Model year

External Dimensions W290 D290 H1100

Showroom Information

Exhibition hall Kyushu Technical Center

Price & Inquiry

price Price Inquiry

Inquiry Number PB0547

Check inventory · Inquire

Mechanical Specifications

Power supply: 3 phase 220-240D/380-415Y V 50/60Hz

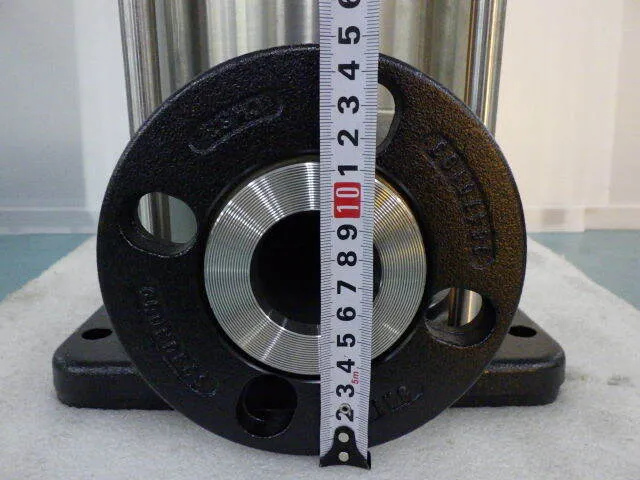

Intake and discharge diameter: 40mm

Rated output: 60Hz 7.5kW

Rotation speed: 3492 min-1

Discharge rate: 100-240L/min

Maximum lifting height: 177m

Attachments

Loading image...
Grundfos CRN10-12 X-FGJ-G-E-HQQE Pressure pump (volute type water pump) - ASKINDEX 코리아

※ Click on the image below to zoom in.

  • Grundfos CRN10-12 X-FGJ-G-E-HQQE Pressure pump (volute type water pump) 상세 이미지 - ASKINDEX 코리아
  • Grundfos CRN10-12 X-FGJ-G-E-HQQE Pressure pump (volute type water pump) 상세 이미지 - ASKINDEX 코리아
  • Grundfos CRN10-12 X-FGJ-G-E-HQQE Pressure pump (volute type water pump) 상세 이미지 - ASKINDEX 코리아
  • Grundfos CRN10-12 X-FGJ-G-E-HQQE Pressure pump (volute type water pump) 상세 이미지 - ASKINDEX 코리아
  • Grundfos CRN10-12 X-FGJ-G-E-HQQE Pressure pump (volute type water pump) 상세 이미지 - ASKINDEX 코리아
  • Grundfos CRN10-12 X-FGJ-G-E-HQQE Pressure pump (volute type water pump) 상세 이미지 - ASKINDEX 코리아
