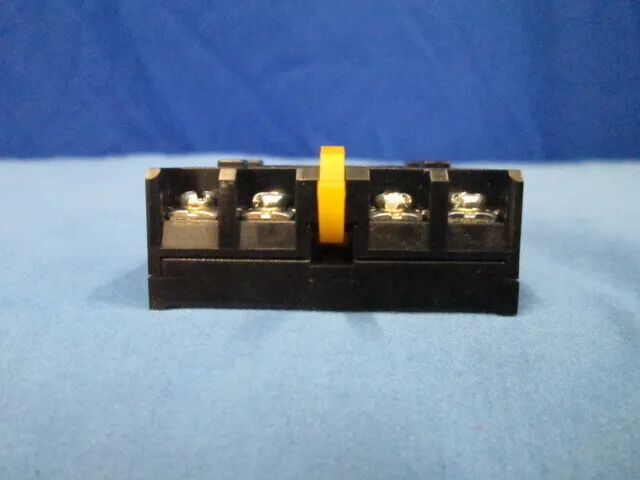

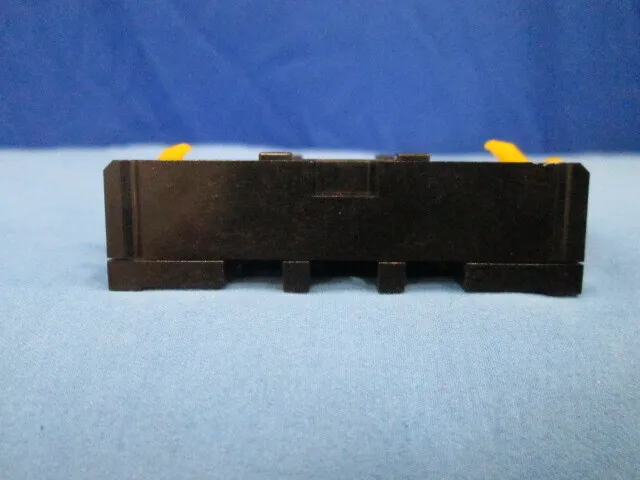

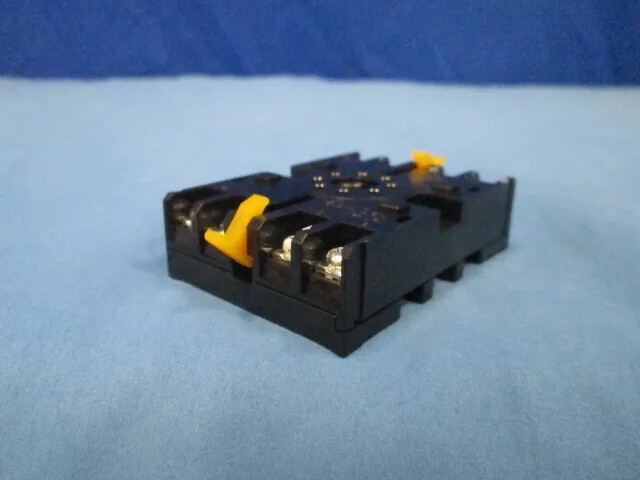

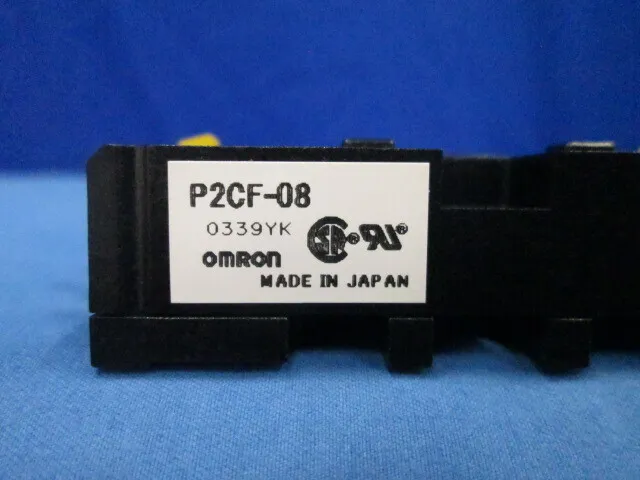

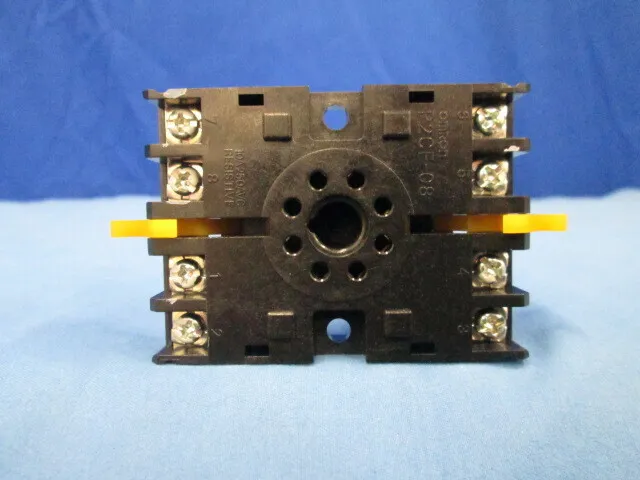

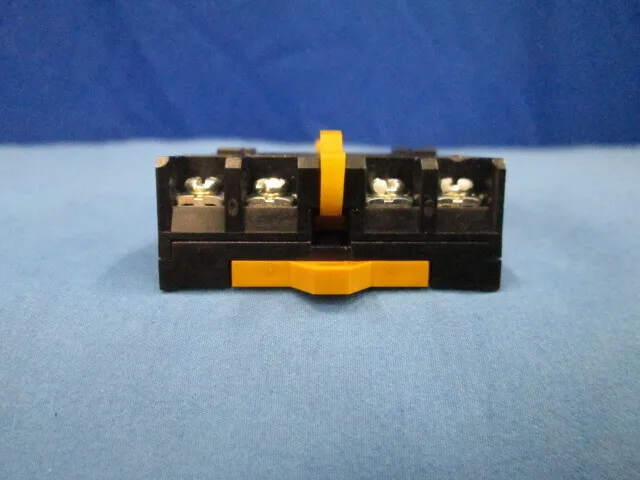

Surface mount socket (8-pin) - Omron P2CF-08
Product Specifications
Maker Omron
Model P2CF-08
Category Parts Related
External Dimensions W50 D73 H30
Condition Used
Showroom Information
Exhibition hall Enzan Technical Center
Price & Inquiry
price Price Inquiry
Inquiry Number Q30215
Product Overview
Omron P2CF-08 is a used Parts Related item available from ASKINDEX Korea. External dimensions: W50 D73 H30. It is kept in stock at our Enzan Technical Center showroom, so stock checks and price quotations are available immediately. You can also compare other used products from the same manufacturer (Omron) and the same category (Parts Related).
Machine specifications
Applications: Surface connection
Number of pins: 8 pins
Rated current: 5A
Connection method: Screw terminal
Insulation resistance between terminals: 1000 MΩ or more (measured with a DC 500V insulation resistance meter)
Withstand voltage between terminals: AC2000V 1min
Installation method: DIN rail mounting
Screw mounting
Weight approx. 55g
Attached file
※ Click on the image below to zoom in.
