Gimbal-type mirror holder - Sigma Optical Co., Ltd. BHAN-30DM
Product Specifications
Maker Sigma Optical Co., Ltd.
Model BHAN-30DM
Category R&D of Physical ・ Chemical Equipment
External Dimensions W65 D60 H126
Condition Used
Showroom Information
Exhibition hall Enzan Technical Center
Price & Inquiry
price Price Inquiry
Inquiry Number Q40349
Product Overview
Sigma Optical Co., Ltd. BHAN-30DM is a used R&D of Physical ・ Chemical Equipment item available from ASKINDEX Korea. External dimensions: W65 D60 H126. It is kept in stock at our Enzan Technical Center showroom, so stock checks and price quotations are available immediately. You can also compare other used products from the same manufacturer (Sigma Optical Co., Ltd.) and the same category (R&D of Physical ・ Chemical Equipment).
Machine specifications
Applicable element size: φ: 30 mm
Applicable element thickness: 3-5 mm
Fine adjustment range (tilt): ±4°
Fine adjustment range (rotation): ±4°
Fine adjustment resolution (tilt/tilt) rotation: approximately 1.08°
Fine adjustment resolution (rotation): Approx. 1.35°
Ultra-fine adjustment resolution (tilt): approximately 0.11°
Super fine adjustment resolution (rotation): approx. 0.14°
Ultra-fine adjustment screw notation conversion (angle): Approximately 0.002°
Ultra-fine adjustment screw display conversion (rotation) approx. 0.002°/DIV
Quantity in stock: 3
Attached file

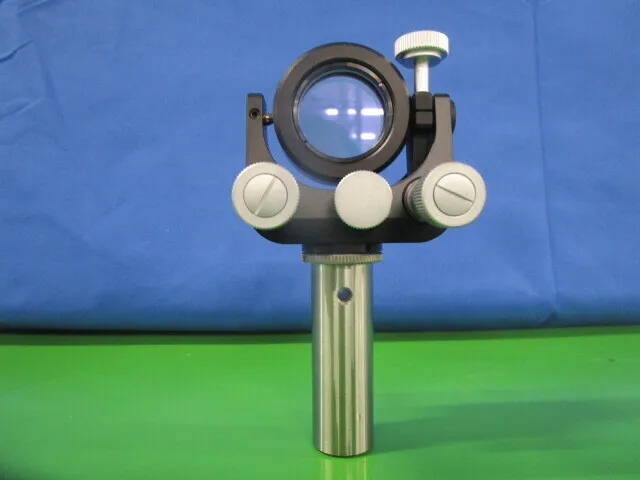

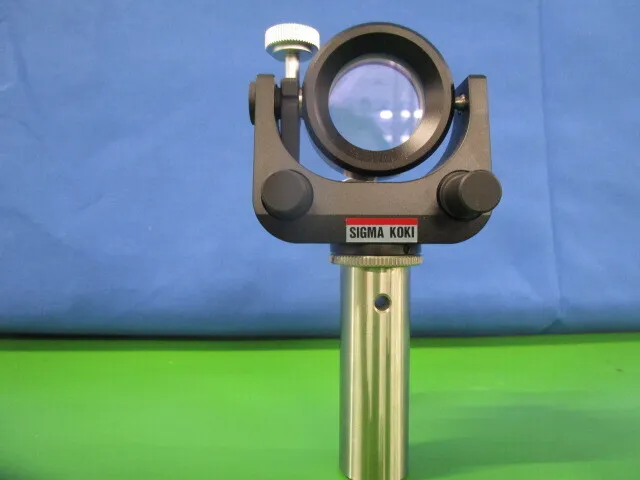

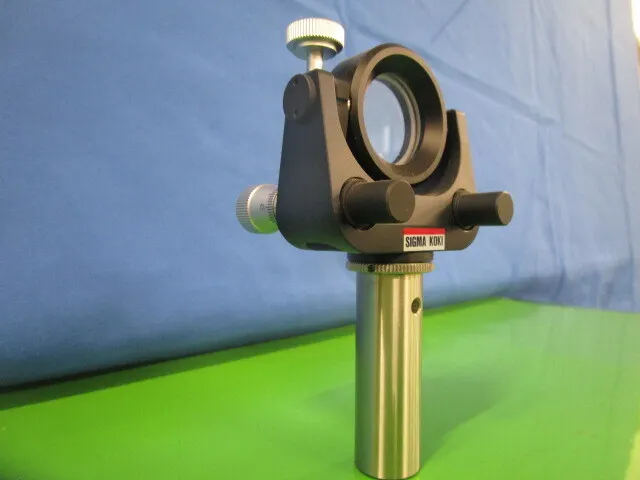

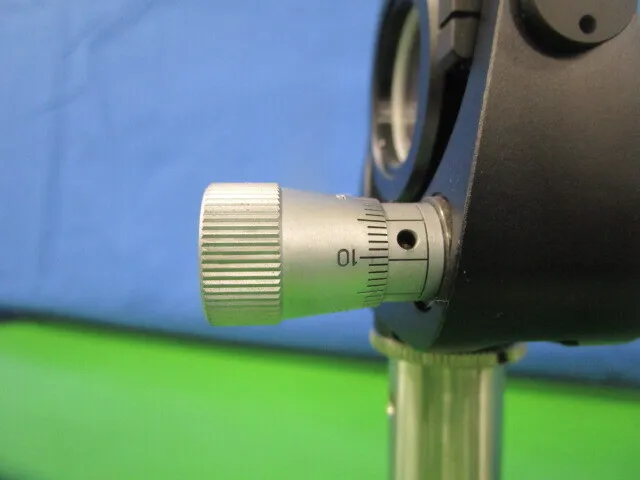

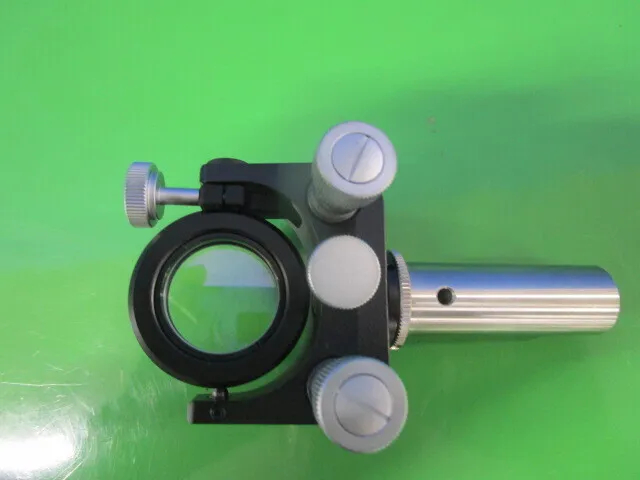

※ Click on the image below to zoom in.
